Production description

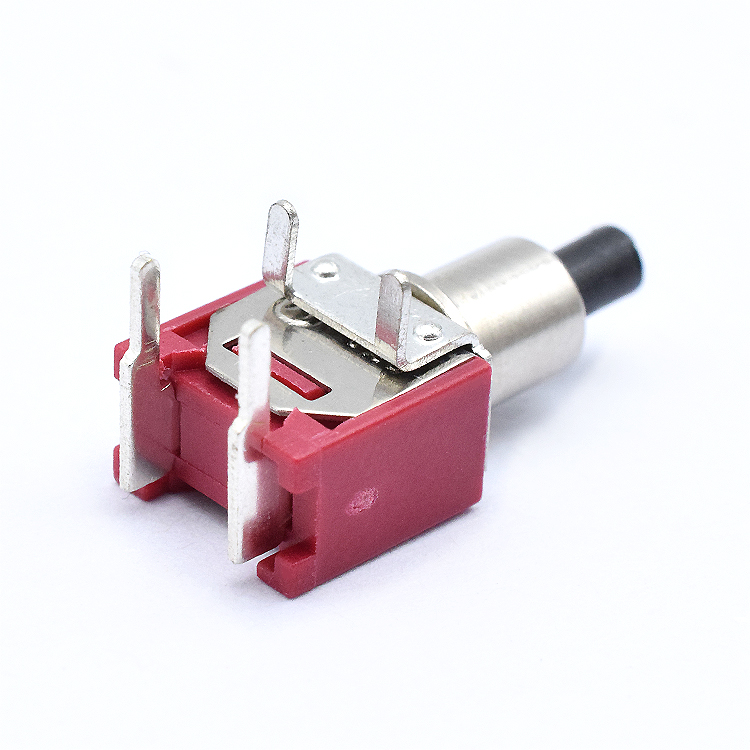

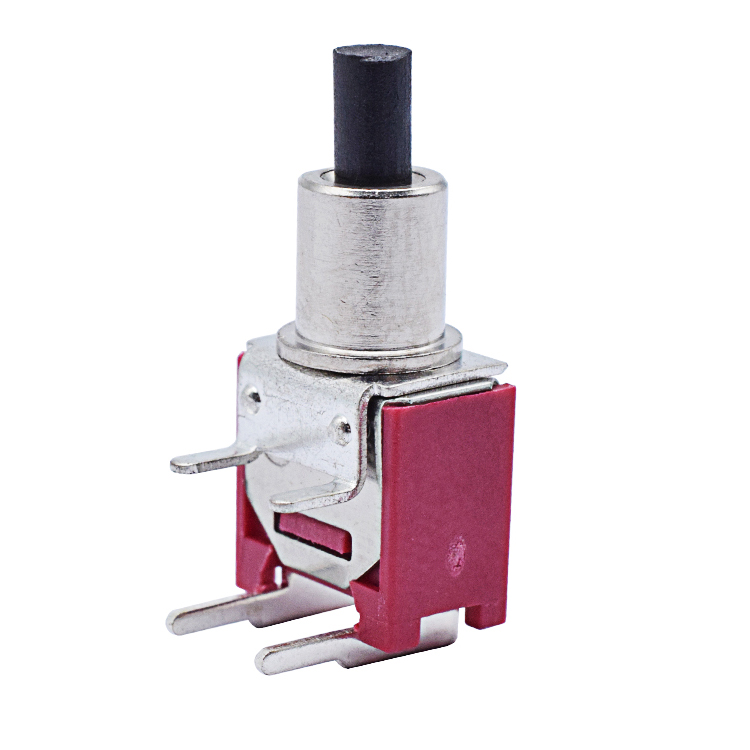

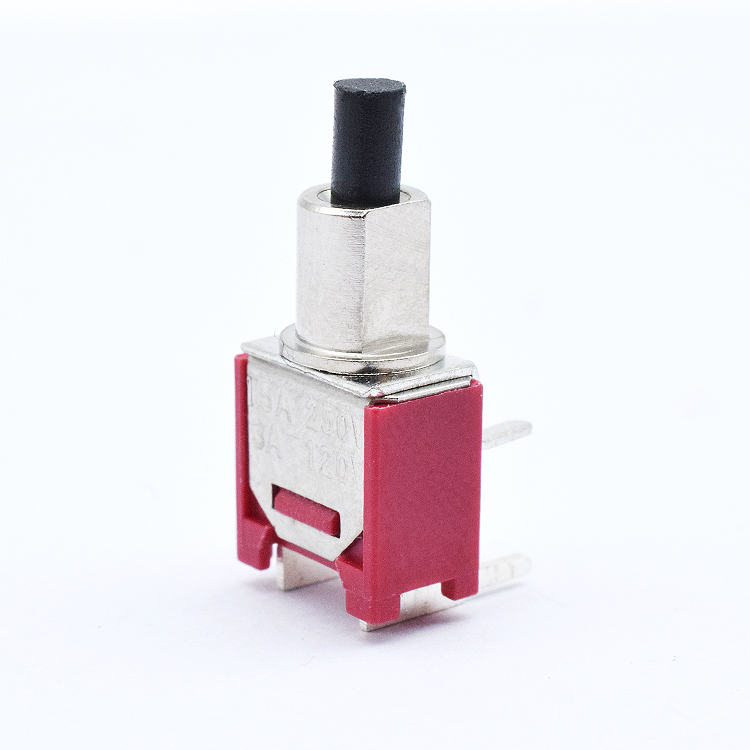

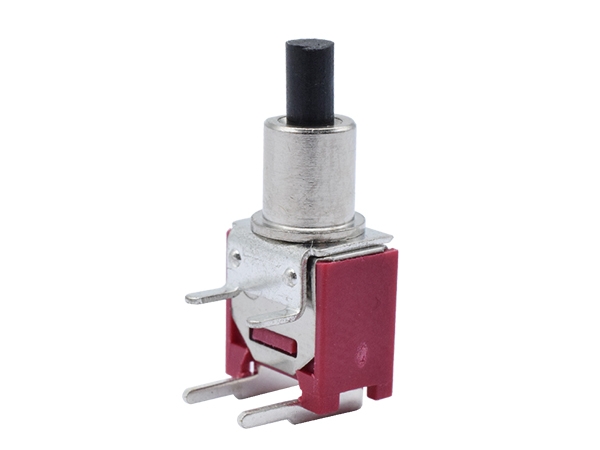

Item name: toggle switch MTS-103
Lifetime: 10,000 cycles
Operating force: 250±100gf
Operating temp.range: -10℃~+70℃
Current: 2A/5A
Voltage: 120V/250V
Usage:
- Can be used on low voltage or high voltage circuits ideal for switching lights or motors.
Type: SPST(Latching); Position: 1(On/Off)

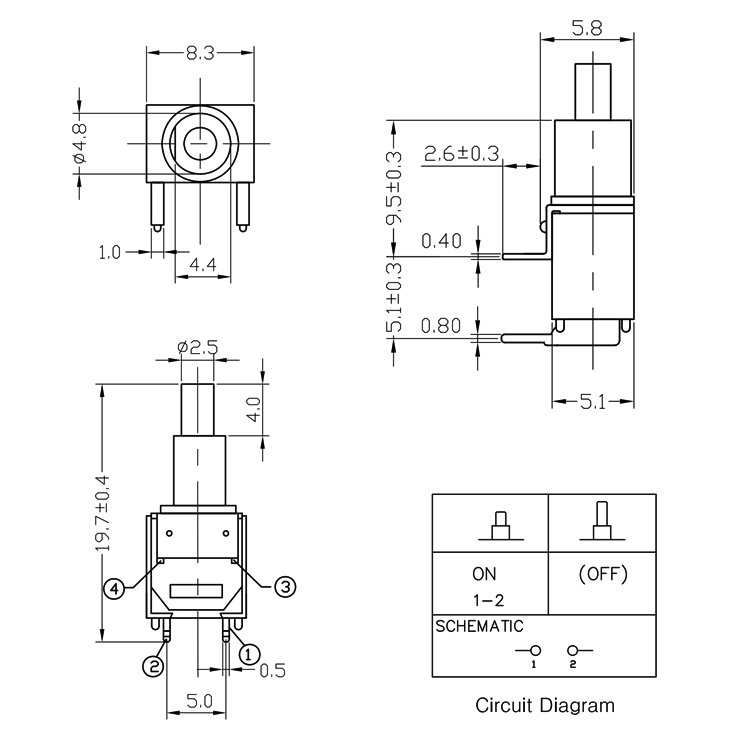

Thread Diameter: 4.8mm / 0.19″
Voltage & current: AC 125V, 5A/AC250V,2A
Main Body Size: 14.6 x 5.8mm / 0.58″ x 0.23″(L*W)
Overall Height: 19.7mm / 0.78″
| Contact Type | Spst |
| Brand | HANXIA |
| Material | Metal |
| Terminal | SpSt |
| Voltage | 250 Volts, 125 Volts |
| Brand Name | HANXIA |
|---|---|
| Contact Type | SpSt |
| Current Rating | 5/2 amps |
| Ean | 6919608793723 |
| Material | Metal |
| Maximum Current | 5.0 amps |
| Measurement System | Imperial , Metric |
| Operation Mode | ON-OFF |
| Part Number | MTS-103 |
| The Fixed Foot | 2 Foot |
| Terminal Type | SpSt |
| HS Code | 8708949090 |
| Voltage | 250.0 volts , 125.0 volts |
