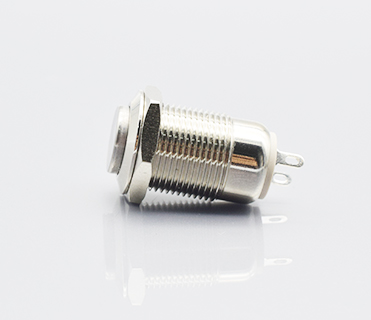

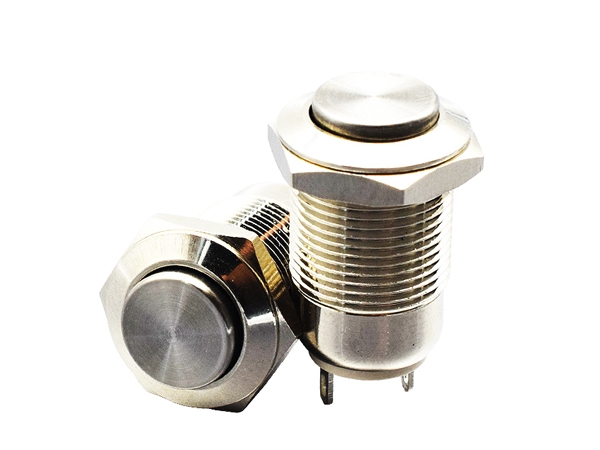

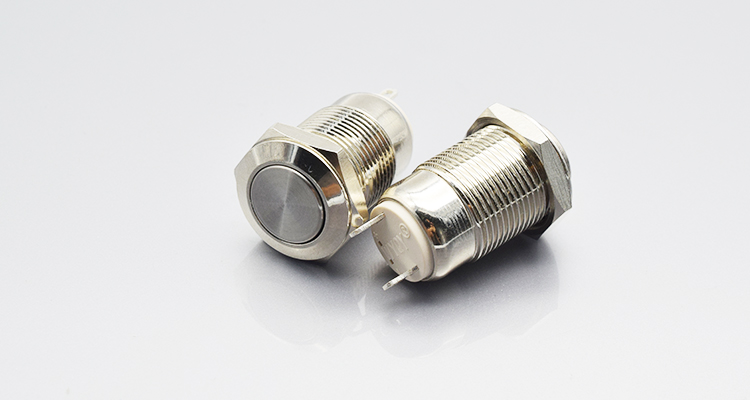

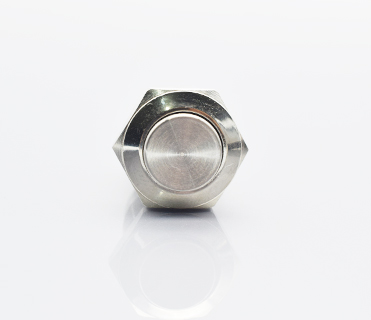

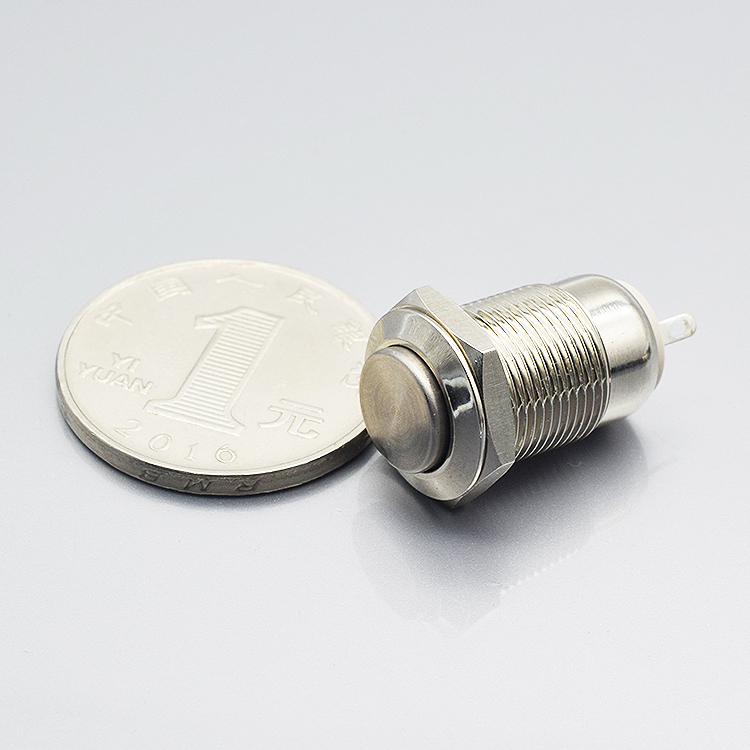

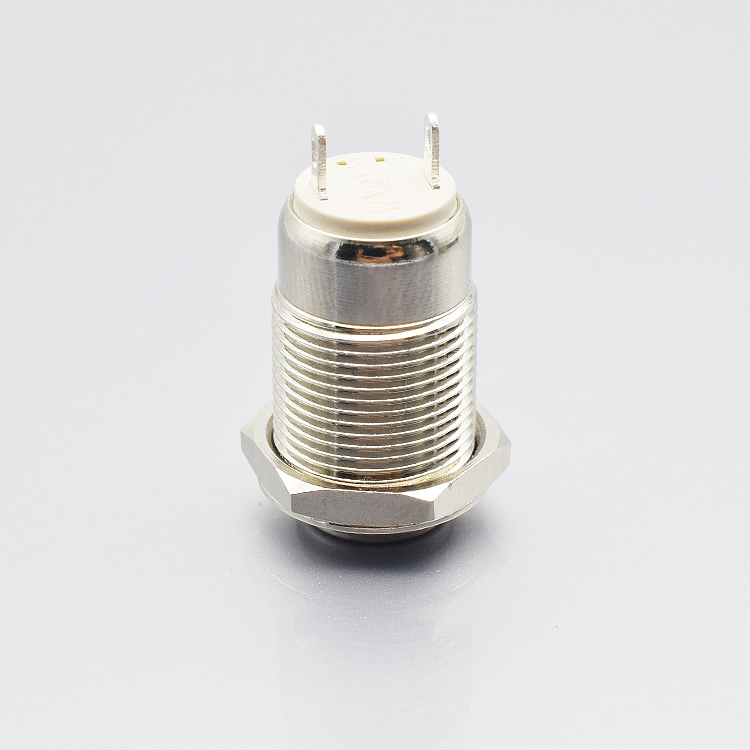

Metal switch 12mm overhead without led light push button switch
Current Location:HOME > PRODUCTS > Button Switch >

Short Description:

Product description

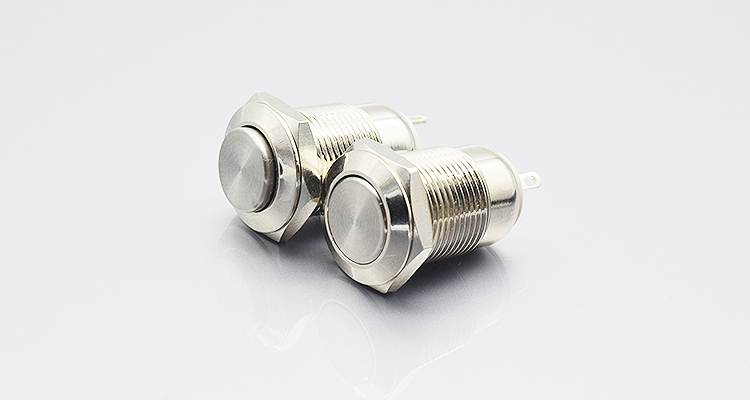

Item name: Metal switch 12mm overhead without led light
Model:LA128-A10
Rating: 3A 250V AC
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000mΩ
Insolation strength:2000VAC
Operating temperature:-20℃~55℃
Electrical life:>50,000 cycles
Mechanical life:>500,000 cycles
Waterproof code:IP65


PRODUCT DETAIL


12mm self-lactching and Momentary IP65 waterproof push button switch

Connection form:supporting connector/welding wire.



Push button switch datasheet



Type: Metal push button switches



Action form: Self-compound



Lamp bead parameters: rated voltage: 6V/12V/24V



Color: red/green/yellow/orange/blue/white



Led life: 50000 hours



Protection grade: IP65



Mounting hole size: 12mm



What is push button switch?

push switch (buttonis a momentary or self-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. … A ‘push to make’ switch allows electricity to flow between its two contacts when held in. When the button is released, the circuit is broken.



Application

  • automotive (air bags, heating/AC, door handles, column switches)

  • aerospace (main cabin lights, flight attendant buttons)

  • consumer (cell phones, headsets, remote controls, wearable electronics)

  • medical (hearing aids, health diagnostics, portable equipment)

  • industrial (control panels, instrumentation, power supplies)

  • computer (keyboards)

  • telecom/network equipment

  • handheld applications (power and selection switches, volume control, keyfobs)

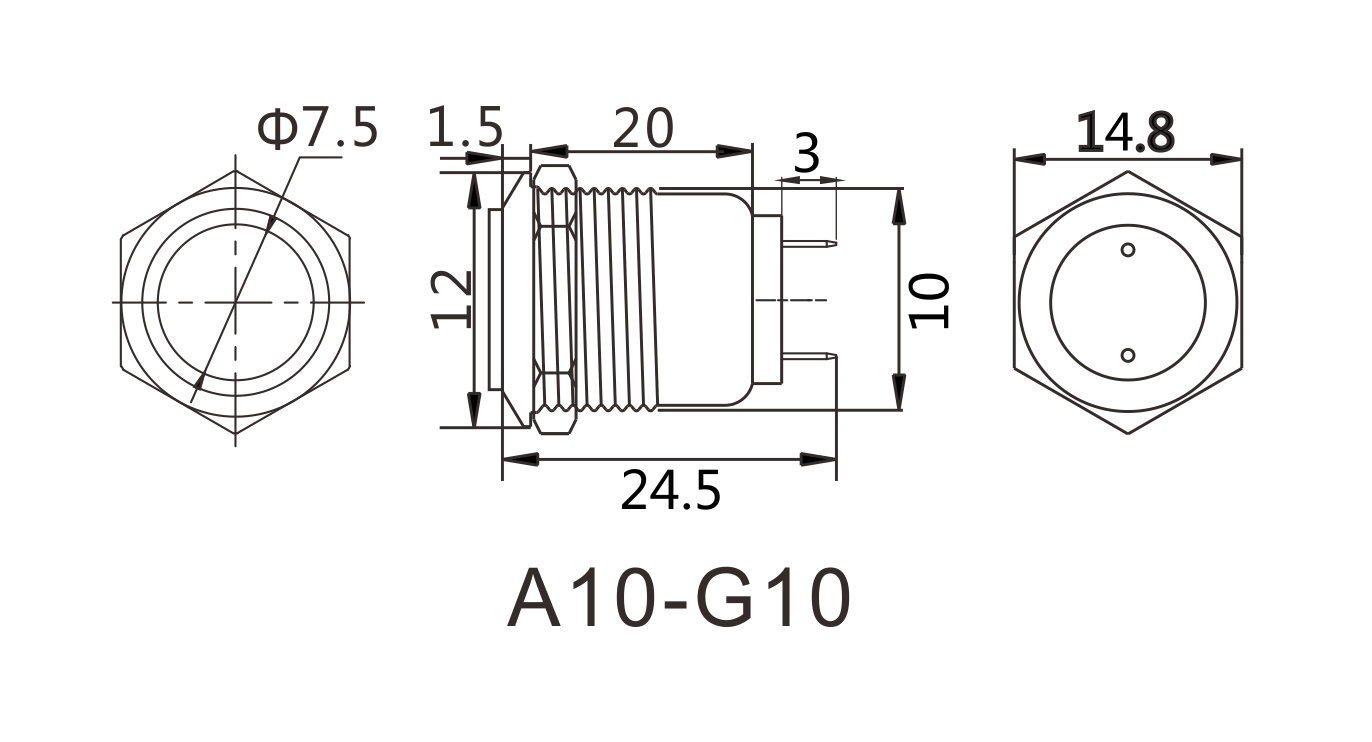

主图5 图片1 图片2 图片3 图片4 图纸
