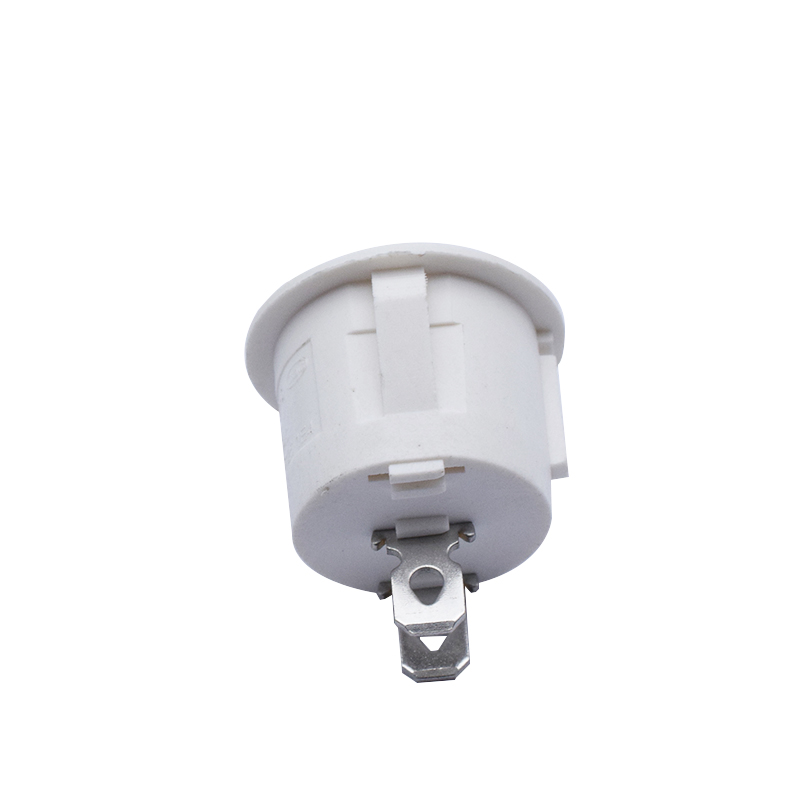

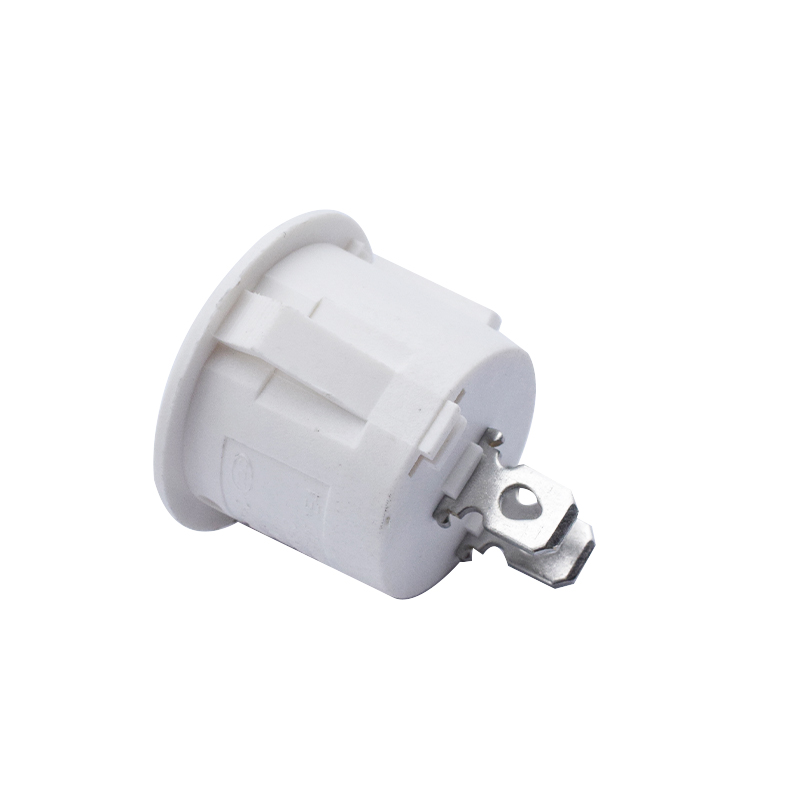

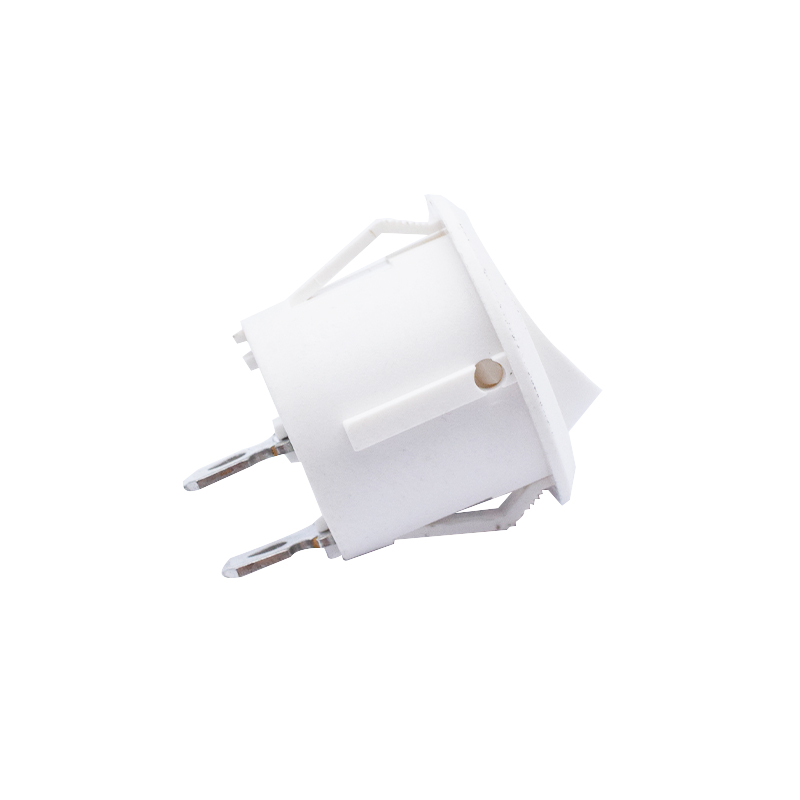

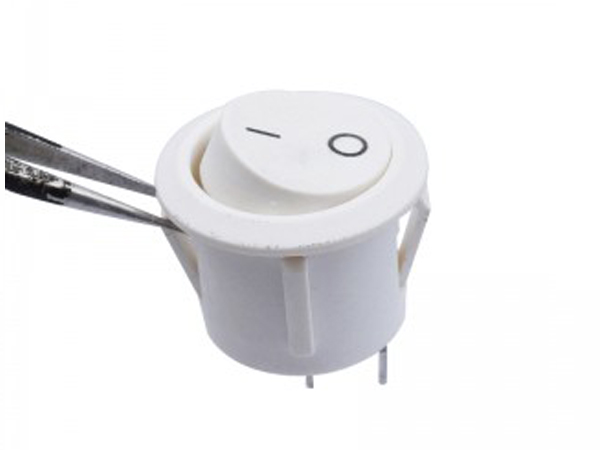

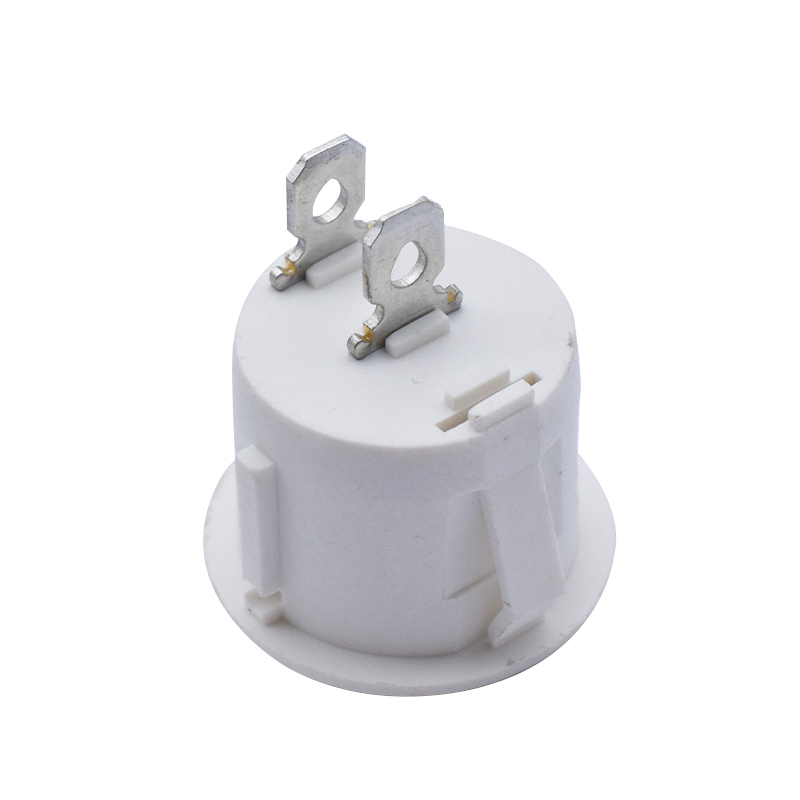

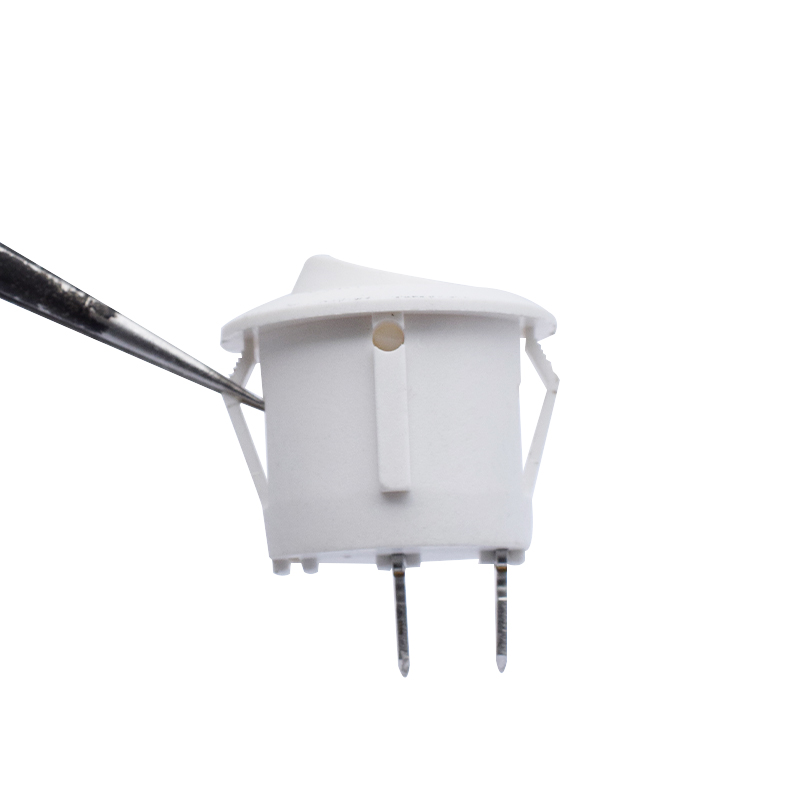

KCD1-105 2pin 6A 250VAC/10A 125VAC white Round Rocker Switch on-off rocker Switch
Short Description:
| model |
KCD1-105 |
| product name |
Rocker Switch |
| Rated current and voltage |
6(4)A 250VAC,10A 125VAC |
| Insulation resistance |
≥100MΩ |
| Contact resistance |
≤50MΩ |
| Dielectric Strength (Interpole) |
≥1500VAC/min |
| pole pair housing |
≥3000VAC/min |
| Electrical life |
≥10*4 times |
| ambient temperature |
25T85 |
| PIN number |
2pin |
PRODUCT DETAIL
| model | KCD1-105 |
| product name | Rocker Switch |
| Rated current and voltage | 6(4)A 250VAC,10A 125VAC |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤50MΩ |
| Dielectric Strength (Interpole) | ≥1500VAC/min |
| pole pair housing | ≥3000VAC/min |
| Electrical life | ≥10*4 times |
| ambient temperature | 25T85 |
| PIN number | 2pin |
