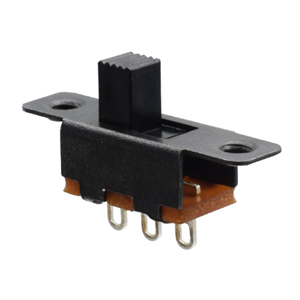

Title: slide switch 3pin SS12F15 1P2T on off switch

RATING: DC 50V  0.5A

CONTACT RESISTANCE: 50m ohm max

INSULATION RESISTANCE: 100M ohm max

WITHSTAND VOLTAGE: AC 500V for 1 minute

1:GENERAL SPECIFICATION 基本事项

1.1 RATING (额定值)：DC 50V 500mA

PRACTICAL TEMPERATURE RANEG: ﹣10℃~+50℃.

STANDARD ATMOSPHEIC CONDITIONS :

UNLESS OTHERWISE SPECIFIED. THE STANDARD RANGE OF ATMOSPHERIC

CONDITIONS FOR MAKING MEASUREMENTS AND TESTS ARE AS FOLLOWS:

(1) AMBIENT TEMPERATURE : 5℃ TO 35℃；

1.3 (2) RELATIVE HUMIDITY : 45% TO 85%；

(3) AIR PRESSURE : 86Kpa TO 106Kpa.

CONTACT RESISTANCE

MEASURED AT 1KHz SMALL CURRENT(100 mA OR LESS) 50mΩ MAX.

INSULATION RESISTANCE

APPLY A VOLTAGE OF 500V DC FOR 1 MIN.

THE FOLLOWING CONTACE TEST METHOD:

(1)BETWEEN BODY AND CONDUCTOR.

(2) BETWEEN CONDUCTORS NOT TO BE CONTAC.

100MΩ MIN.

ELECT RIC STRENGTH

AC 500V(50-60Hz) FOR 1 MIN TRIP CURRENT:0.5mA

THE FOLLOWING CONTACE TEST METHOD:

(1)BETWEEN TERMINALS.

(2) BETWEEN INDIVIDUAL TERMINALS AND FRAME.

THOUT DAMAGE TO

PARTS ARCING OR

BREAKDOWN ETC.

OPERATION FORCE

LATERAL PUSH

PUSH FORCE : 200gf±50gf

TRAVEL TO CLOSURE

IN THE HORIZONTAL DIRECTION SWITCH HANDLE

OPRATION,WITH AN EQUAL TO 2TIMES THE THRUST OF

THE SWITSH FORM ONE POSITION TO THE NEXT GEAR,

MOVING DISTANCE MEASURING HANDLE.

2mm±0.2mm

STEM STRENGTH

AND ALONG THE RUNNING DIRECTION AT APEX HANDLE(500gf)

ON THESTRENGTH TEST,TIME IS 30SECONDS.

THERE SHALL BE NO DAMAGE ONAPPEARANCE MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED
