Product Info

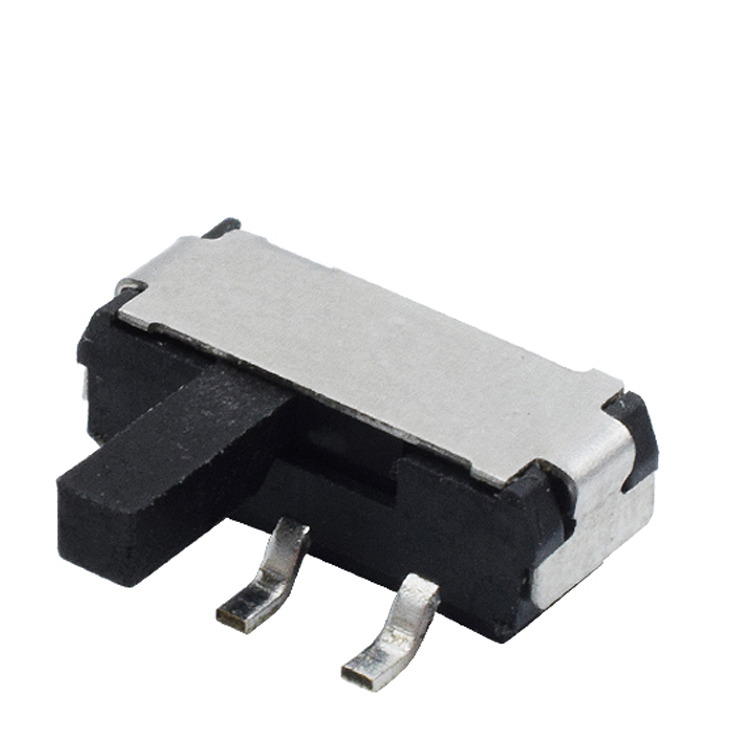

Item name: slide switch
Model No.: MSK22D18
Power : DC 50V 0.5A
Contact Resistance : 30mΩ Max
Insulation Resistance : 500mΩ Min at 500V DC
Withstand Voltage : AC 500V/1 min
Actuating Force: 2.5±0.5N
Working Temperature: -25~85°
Basic information
| Rating current | DC 12V 50mA |
| Function | 2P2T |
| Operating force | 20gf±100gf |
| Life cycles | 7000~10,000cycles |
| Operating temperature | -10℃~+50℃ |
| Contact resistance | 100mΩ Max |
| Insulation resistance | 50MΩ Min |
| Dielectric strength | AC 500V (50Hz-60Hz) 1 min, 0.5mA |
| Knob’s advantage | it has been added the metal wire into it in order to avoid broken |
Advantage
1. The factory has more than 13 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Assembly process in 100,000 grade dust-free workshop.
6. Owing ISO9001 quality system.
7. After-sales service team. Global radiation multiple service outlets.
Application
Slide switch is to turn on or off the circuit by turning its actuator (switch handle). It has the characteristics of flexible slider action, stable and reliable performance, and is widely used in electrical appliances, machinery, communications, digital audio and video, building automation, and electronic products.
