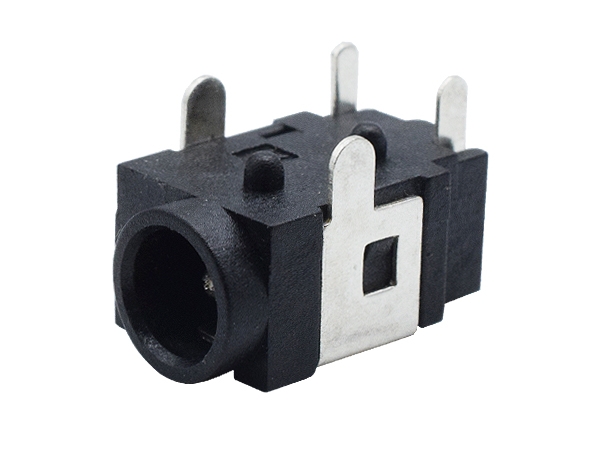

Titel: DC Power socket DC-031 4 foot plug-in 3.5 *1/ 1.3 mm DC port DC power socket DC031

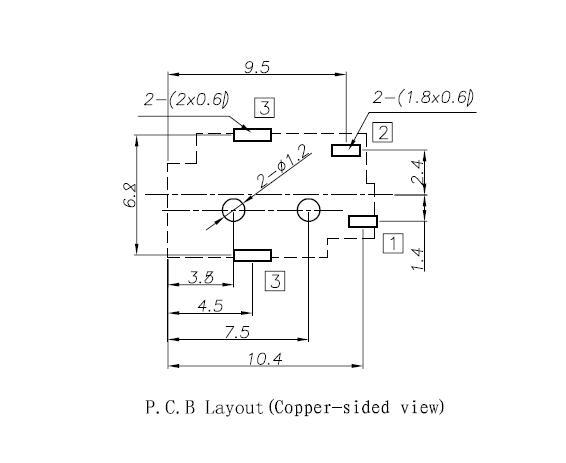

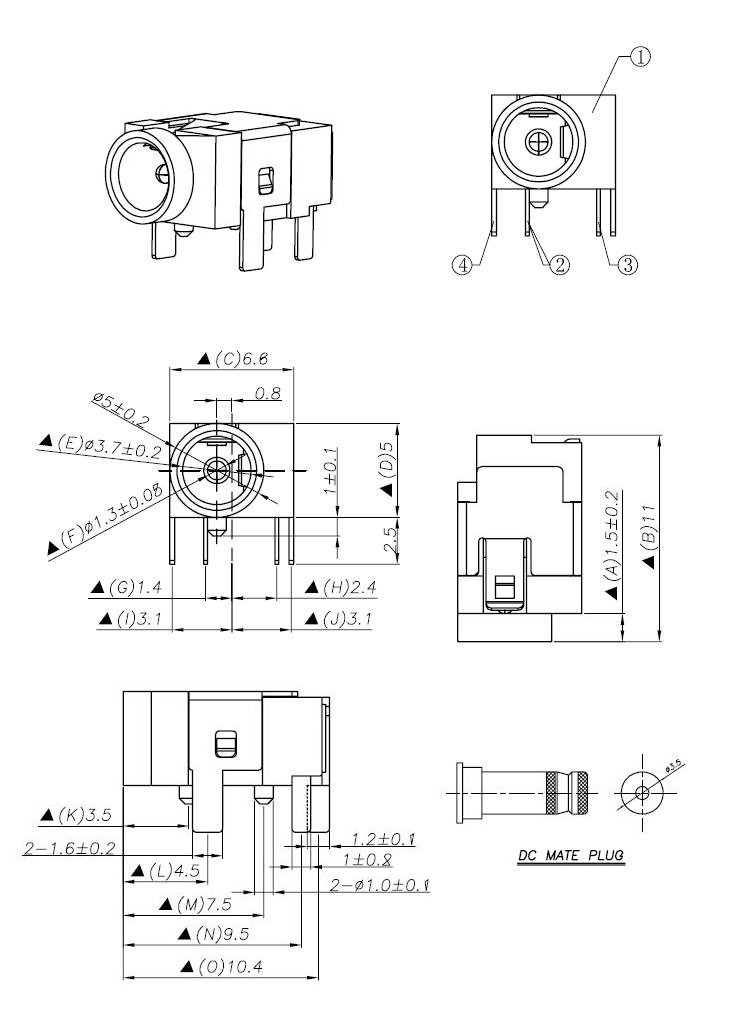

SPECIFICATION

1.Rating C 30V 1A;

2.Contact resistance:≤30m 2;

3.Insulation resistance∶≥100MΩ（DC250V）∶

4.Withstand voltage: 500OVAO:

5.Insertion and extraction force:3-30N;

6.life test:5,000 cycles;

Quick Details

• Warranty: 3months-1year

• Certification: ROHS

• Customized:Yes

• Network:SDK, NFC

• Customized support:Software reengineering

• Place of Origin:Guangdong, China

• Brand Name:HANXIA

• Model Number:DC-031

• Type:DIP socket

• Grounding:Standard Grounding

• Rated Voltage:30V

• Rated Current:0.5A

• Application:Industrial, MP3,MP4,PDA,radio and audio-visual Equipment

• Rated Load:DC 30V 0.5A

• Housing Material:PA66/PA6T/PA9T/ PBT

• Withstand Voltage:AC500V(50Hz)/min

• Insulation Resistance:≥100MΩ

• Temperature Range:-30~70℃

• Contact Resistance:≤0.03Ω

• Actuting Force:3-30N

• Lifespan:5000times

• 1 CONTACT RESISANCE

  Being measured at 1KHZsmall current connact resistance meter.

  2. INSULATION RESISTANCE




  Measurements shall be made following application of DC500V potenrial across terminals and across terminals and frame for 1 minute

  100M min

  3.WITHSTAND VOLTAGE

AC500V(50HZ or 60HZ shall be applied across terminals and across terminals and frame for one minute.

There shall be nobreakdown

4.INSERION AND WITHDRAW

Being measure at across spring piece and across matching plug for ergometer.

Insertion and extraction force

3-20N

5.TERMINALSTRENGTH

A static force of 500gf being applied inone directionon the top of terminal for

1 minute.

LIFE TEST

5000 cycles of operation at rate of 20-30 cycles per minture with unloading.

Contactresistance.40m

Drive fore 30 inital value
