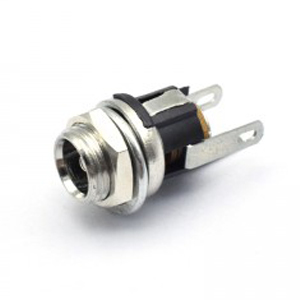

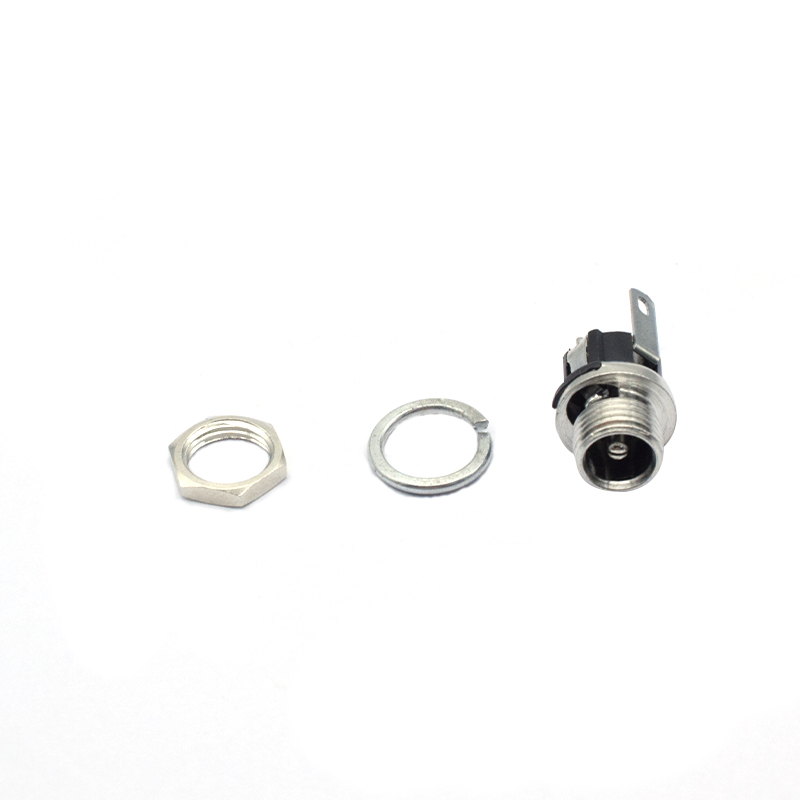

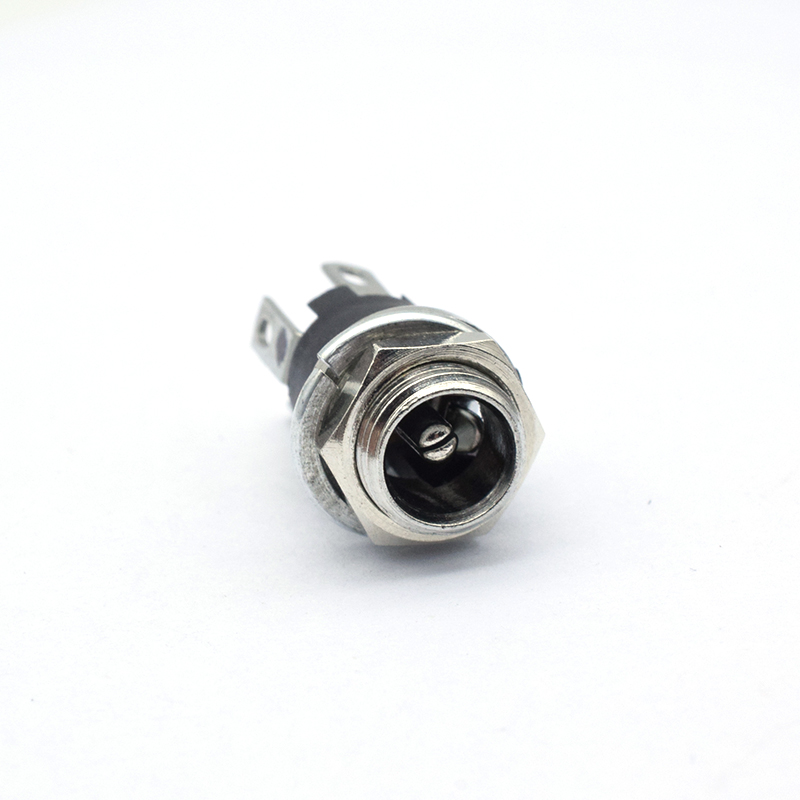

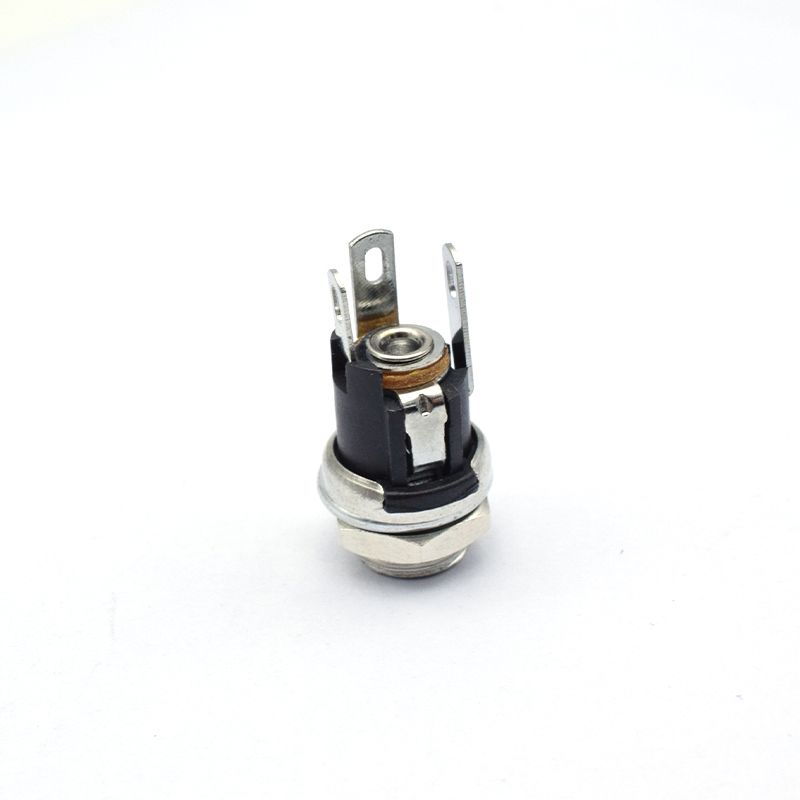

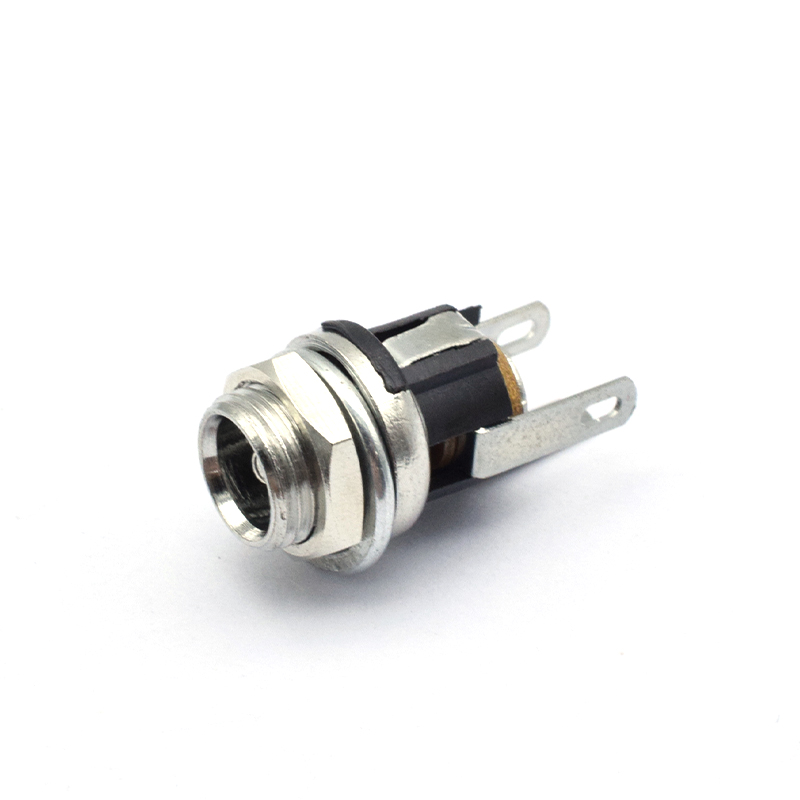

metal plug 5.8mm*2.5mm Power DC socket jack DC-025M-5.7 3 pin connection terminal

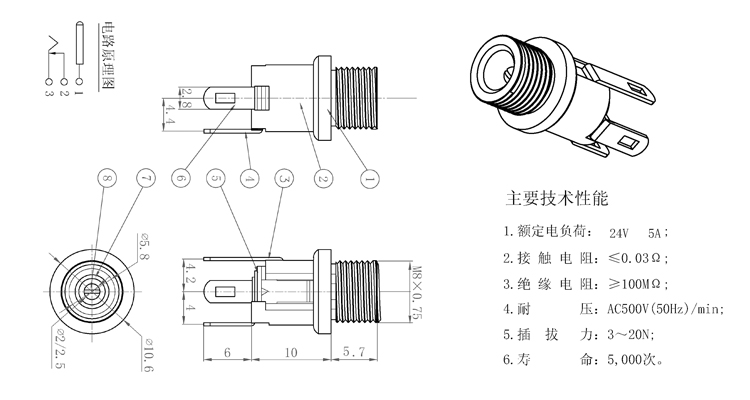

| Product Name | DC Socket |
| Size | 5.8*2.5 cm |
| Max. Current | 5A |
| Max. Voltage | 24V DC |
| Insertion force | 3-20N |
| Net weight | 5g |
| Model | DC-025M-5.7 |
| Life | 5,000 times |
| Withstand Voltage | AC500V(50Hz)/min |
| Insulation Resistance | ≥100mΩ |
| Contact Resistance | ≤30mΩ |
DC socket is a special power supply and computer display matching socket, it is composed of transverse socket, longitudinal socket, insulating base, fork contact shrapnel, directional keyway, two fork contact shrapnel positioning in the center of the base, into a vertical and horizontal arrangement is not connected to each other. One end of the fork-type contact spring is a wiring port, which is exposed on the top surface of the base cylinder for connecting the input power cord or cable. The other end of the fork-type contact spring is composed of two elastic arms of the matrix interconnection. It is arranged in the insulation base jack of the DC plug insertion direction, and it is used for the computer monitor to make it work normally.
DC power outlet center needles are: 0.5 mm / 0.7 mm / 1.0 mm / 1.1 mm / 1.3 mm / 1.65 mm / 2.0 mm / 2.5 mm / 3.0 mm
