Product description

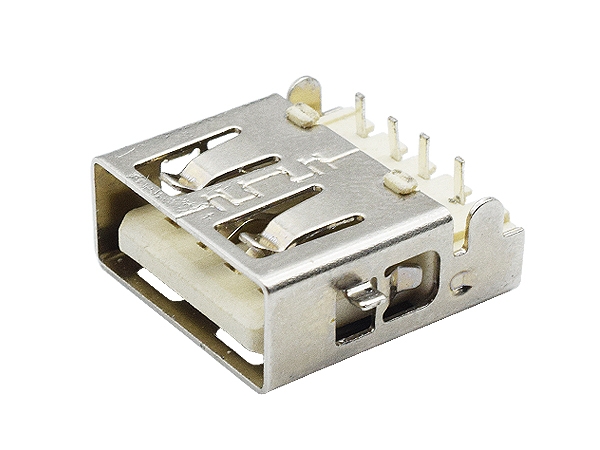

Item name: USB A female socket
Rating: DC 30V 0.2A
Insulation resistance: ≥1000mΩ min. 500V DC
Dielectric strength: 250V AC for 1 min
Contact resistance: ≤50mΩ
Insertion force: ≤35N
Extraction force: ≥10N
Usage:
-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.
A range of HANXIA TECHNOLOGE USB Type A Connectors, see Table for details.
• USB 2.0 for up to 480 MBPS speed transfer
• Integrated locking mechanism provides superior locking strength
• Right angle orientation
• Plug & Play capability
• 40 N retention force
• IP20 Rating
• Machine Vision
• Human Machine Interface
• Printers
• Barcode Readers
• Mass Storage
HANXIA TECHNOLOGE USB Connectors
| Attribute | Value |
| Gender | Female |
| Mounting Type | PCB Mount |
| USB Type | A |
| Termination Method | Solder |
| USB Version | 2.0 |
| Body Orientation | Right Angle |
| Number of Ports | 1 |
| Contact Material | Copper Alloy |
White glue monolayer
