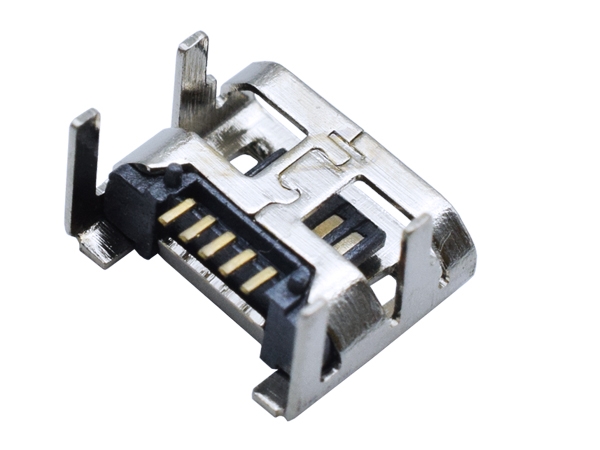

micro 4 pin DIP/flat edge female micro usb connector
Current Location:HOME > PRODUCTS > USB Connector >

Short Description:

Product description
Item name: micro 4 pin DIP/flat edge
Rating: DC 30V 1A
Insulation resistance: ≥100mΩ min. 500V DC
Dielectric strength: 100V AC for 1 min
Contact resistance: ≤50mΩ
Insertion force: ≤3.57gf
Extraction force: ≥1.0gf
Operating force:-30℃~80℃
Life:10,000 cycles
Usage:
-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.


PRODUCT DETAIL


Quick Details


  • Model Number:

  • usb connector


  • Type:

  • Micro USB Type B, Terminal Connectors
  • Place of Origin:

  • Guangdong, China
  • Brand:

  • HANXIA
  • Item name:

  • 4 pin dip female micro usb connector
  • Current Rating:

  • 1A
  • Voltage Rating:

  • 30V DC
  • Operation Temperature:

  • -30℃ ~ +80℃
  • Storage Temperature:

  • -40℃ ~ +85℃
  • Contact Resistance:

  • 50mΩ max
  • Insulation Resistance:

  • 100mΩ min./500 VDC
  • Operating:

  • 10000 cycles
     Product Name Rocker switch
     Model 2p2T ship switch kcd3
     Life 10000 cycles
     Insulation resistance  100mΩ
     Temperature -30℃  to +80℃
     Voltage 30V DC
     Rated current

     1A
