Product description

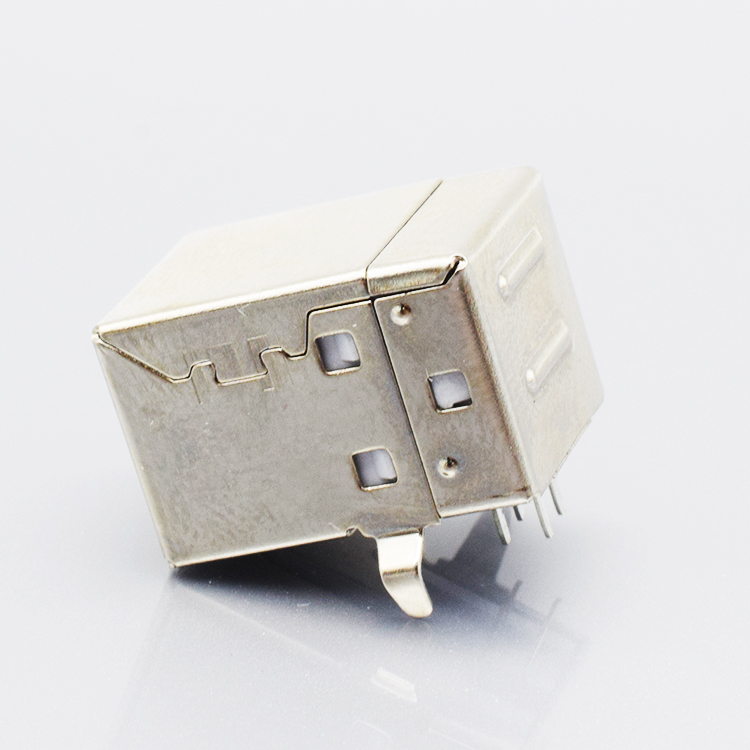

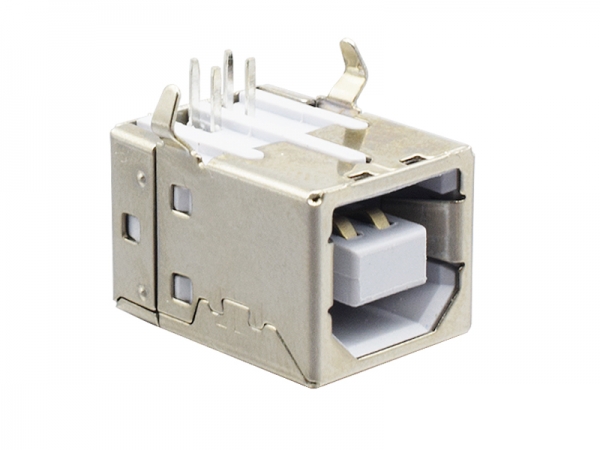

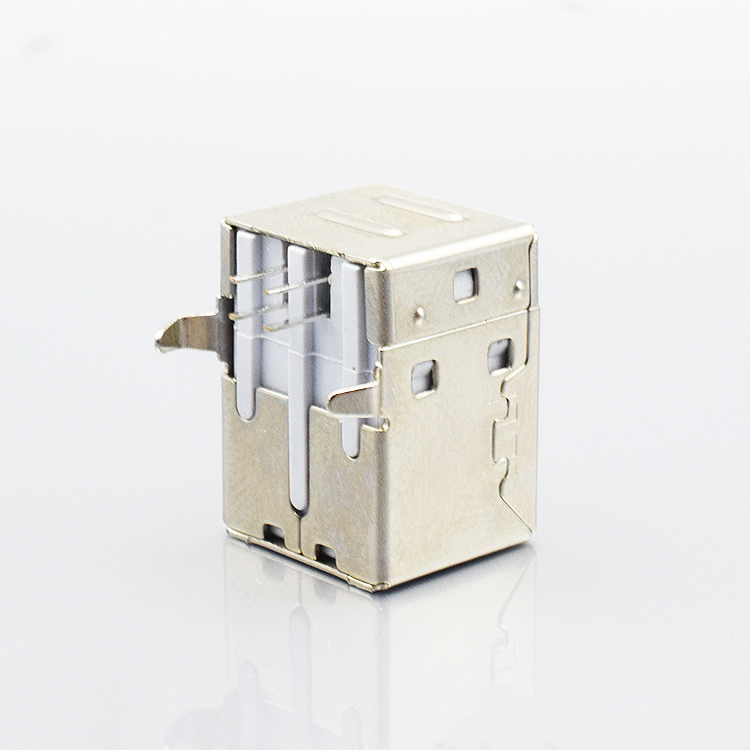

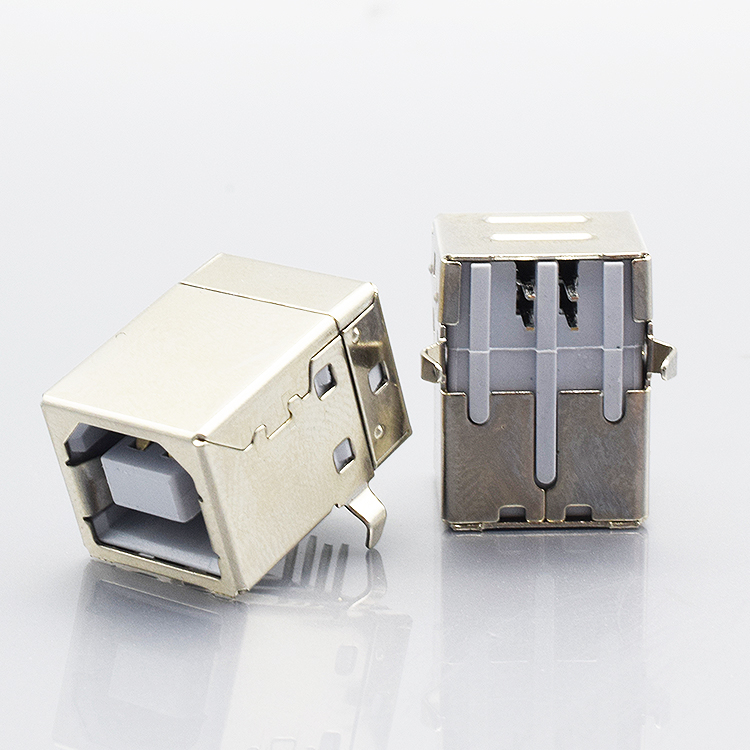

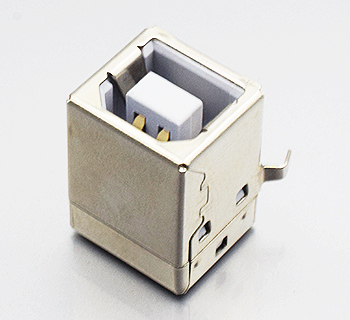

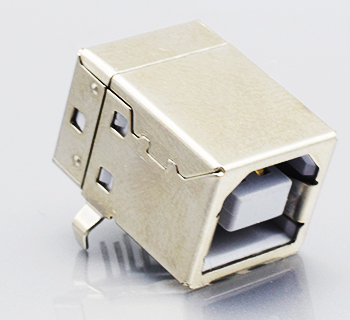

Item name:USB Bent foot 90 degree
Rating: DC 30V 1.5A
Insulation resistance: ≥1000mΩ min. 500V DC
Dielectric strength: 500V AC for 1 min
Contact resistance: ≤30mΩ
Insertion force:3.75kgf
Extraction force: 1.02kgf
Operating force：-25℃~85℃
Life：5,000 cycles
Usage:
-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.
Quick Details
Place of Origin: Guangdong, China
Brand Name: OEM/HANXIA
Model Number: USB Connector BF90 degree
Type: usb
Application: USB
Gender: Female
Pins: 2P
Product name: USB Connector B type female seat BF90 degree 2 pin DIP usb socket
Item: USB CONNECTOR
Connector type: Female Terminals
Color: Silver/Transparent
Pin: 4pin
Insulation Resistance: 100M Ohm/Min
Dielectric withstand voltage: 500VAC/min
Contact resistance: 30m Ohm Max
Operating force: 1.02kgf~3.75kgf
| Product Name | USB Connector B type female seat BF90 degree 2 pin DIP usb socket |
| Model | A female DIP |
| Life | 5,000 times |
| Voltage Rating | 30V DC |
| Temperature | -25℃—+85℃ |
| Dielectric strenght | AC 500V |
| Rated current | 1.5A |
