HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector

PRODUCTS

Current Location:HOME > PRODUCTS > USB Connector >

Short Description:

Product description

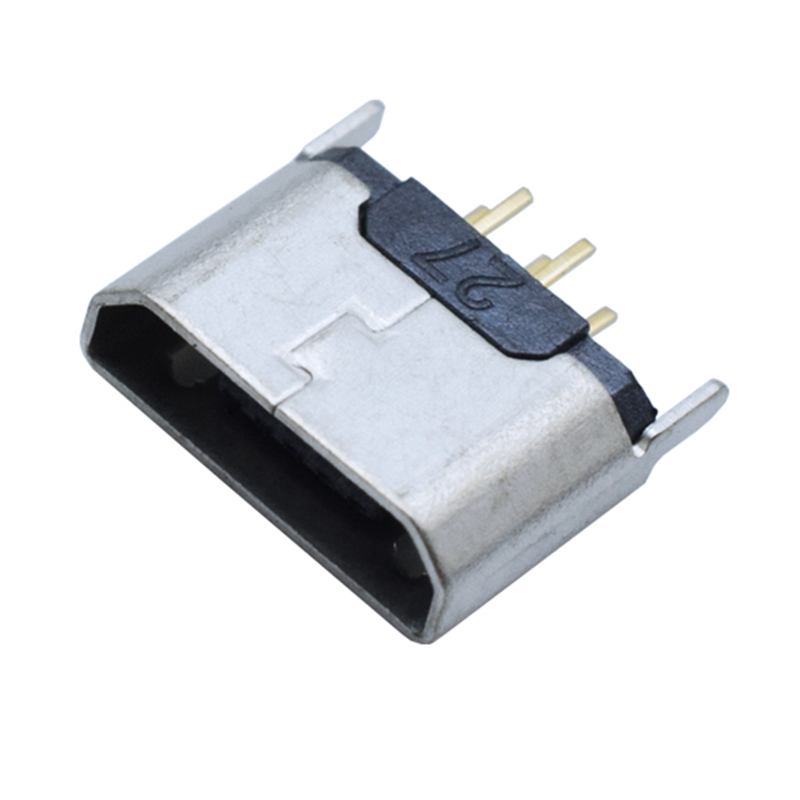

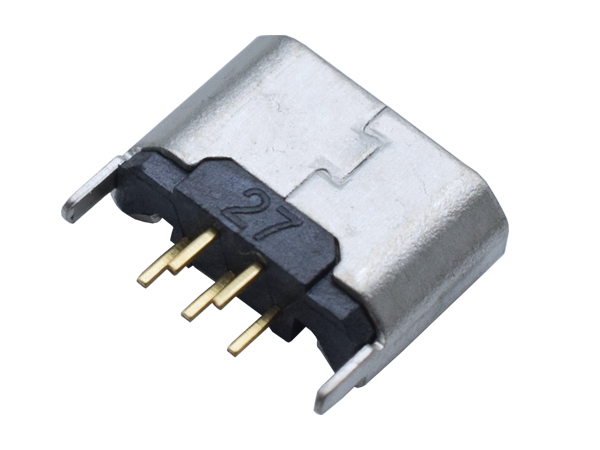

Item name: Micro 180 degree flat edge usb connector

Rating: DC 30V 0.2A

Insulation resistance: ≥1000mΩ min. 500V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: ≤50mΩ

Insertion force: ≤35N

Extraction force: ≥10N

Usage:

-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

Message

PRODUCT DETAIL

Quick Details

Model Number:
Micro USB 6.9

Type:
Micro USB Type A

Place of Origin:
Guangdong, China

Brand:
HANXIA

Packaging:
REEL

Description:
Micro USB 6.9

D/C:
SH2107

Product name:
MICRO 5p 6.9 micro usb female connector horizontal charger

interface type:
USB

Color:
Silver

contact resistance:
≤30mΩ

insulation resistance:
≥100mΩ

Withstand voltage:
AC100V(50Hz)/min

Operating temperature:
-30℃~+80℃

Output force:
8-20N

Input Force:
35N MAX

Life:
3000 cycles min
Product Description1

1. Size: 6.9mm
2. Standard: 5pin
3. Certification: ROHS

Product Name
Micro 5p AF
Model
6.9mm
Cycle
3000
temperature
-30℃-+80℃
voltage rating
30V
rated current
1A
