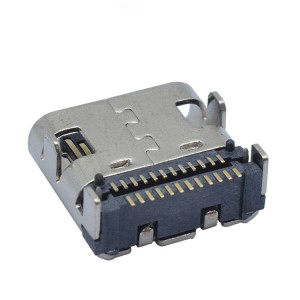

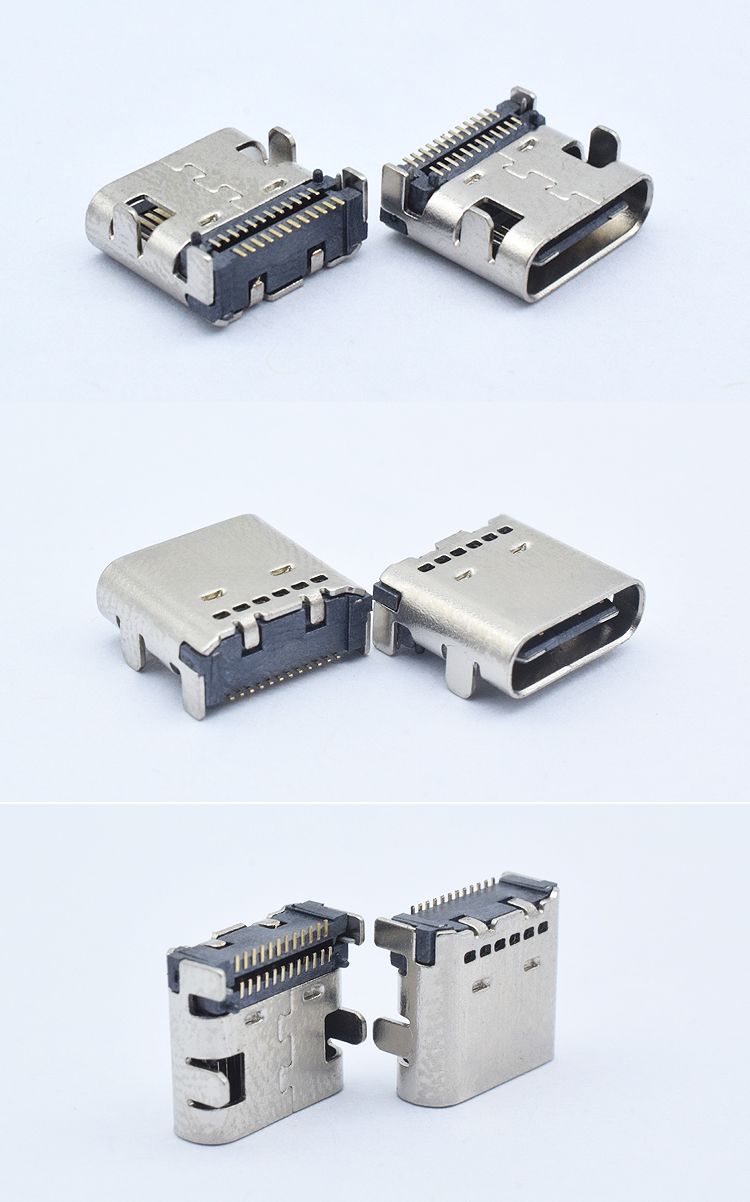

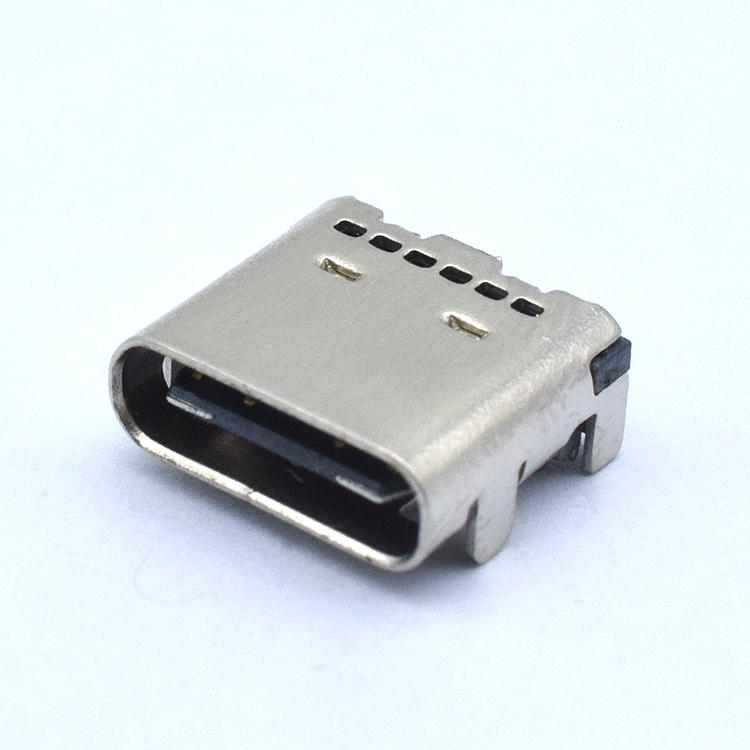

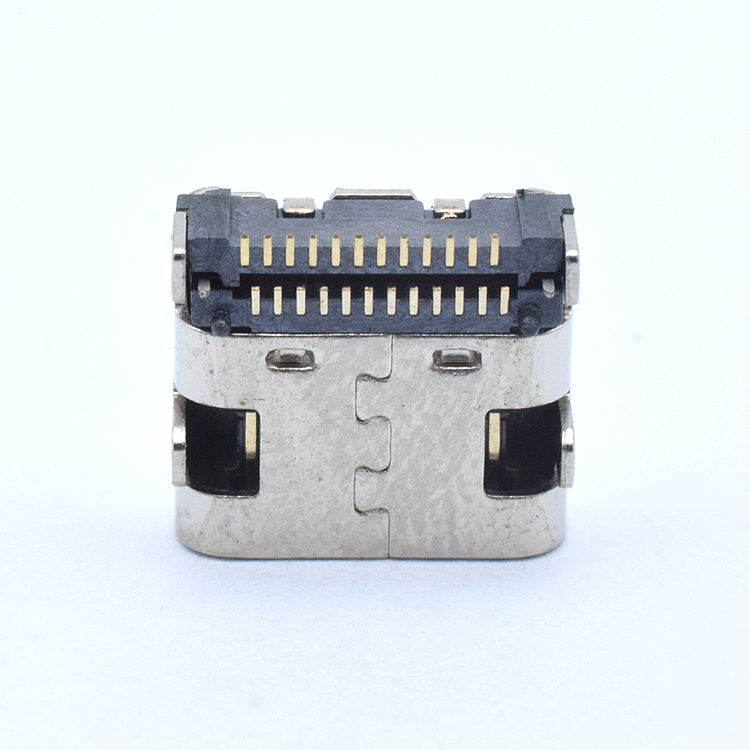

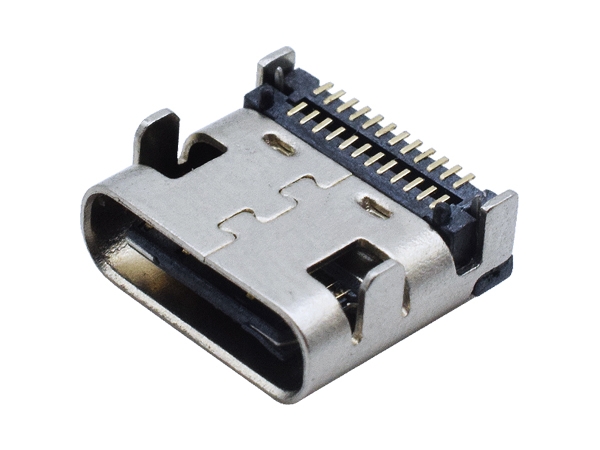

HOT SALE 24 Pin C Type Connector All Patch Foot SMD USB-C Type C Female

PRODUCTS

Current Location:HOME > PRODUCTS > USB Connector >

Short Description:

Rating:DC 30V 0.2A
Insulation resistance:≥1000MΩ min.500V DC
Dielectric strength:250V AC for 1 min
Contact resistance:≤50MΩ
Operating temp.range:-30℃to +70℃
Lifetime:5000Cycles min
Insertion Force:≤35N
Extraction Force:≥10N
usage:Mainly used in high-end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

Message

PRODUCT DETAIL

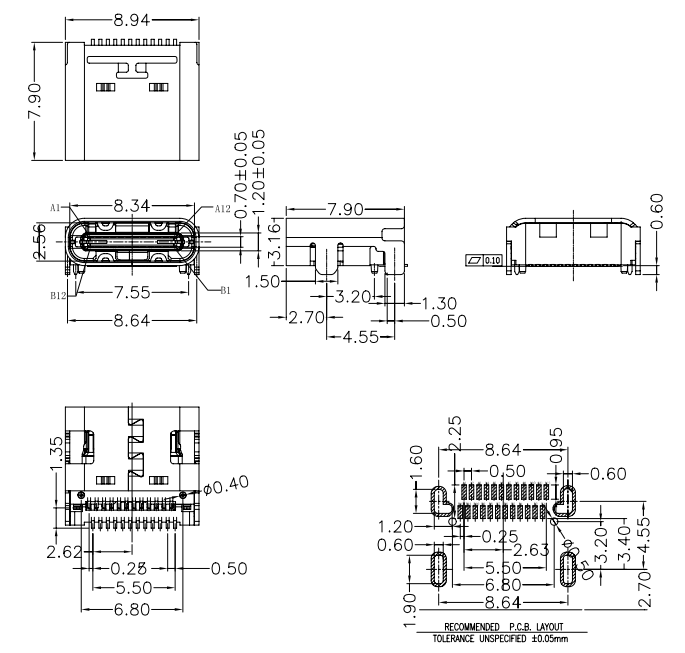

Model Number: TYPE-C USB connector 24Pin SMD

Type: usb

Application: PCB

Place of Origin: Guangdong, China

Product name: Type C USB female usb connector SMD

Connector type: Female Terminals

Color: Silver

Rating: 20V DC 3A

Mechanical Life: ≥10,000 cycles

operating Temperature: -40°C~+85°C

Contact Resistance: 30mΩ max

Insulation Resistance: 100mΩ Min

Connection Force: 3.57Kgf

Disconnection Force: 0.8Kgf

Gender: Female
Brand Name: OEM/HANXIA

Model	HOT SALE 24 Pin C Type Connector All Patch Foot SMD USB-C Type C Female
Life	≥10,000 cycles
Operating temperature	-40°Cto +85°C
Insolation resistance	100mΩ min
Disconnection Force	0.8Kgf
Connection Force	3.57Kgf
Contact Resistance	30mΩ MAX
Current Rating	3A
