Product description

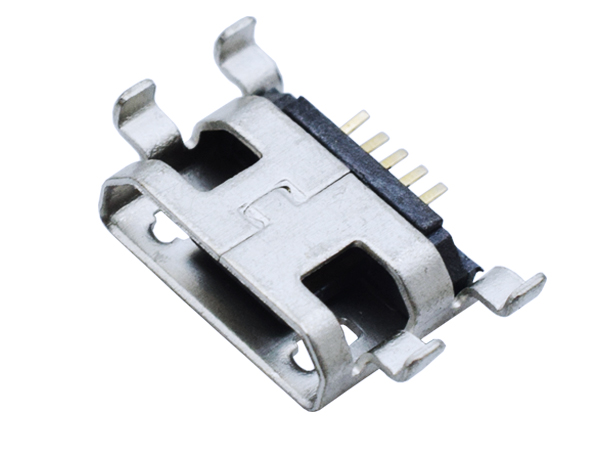

Item name: Micro 4 pin usb 1.0
Rating: DC 30V 0.2A
Insulation resistance: ≥1000mΩ min. 500V DC
Dielectric strength: 250V AC for 1 min
Contact resistance: ≤50mΩ
Insertion force: ≤35N
Extraction force: ≥10N
Usage:
-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.
Quick Details
Place of Origin:
Brand Name:
Model Number:
Type:
Application:
Gender:
Product name:
Color:
Connector type:
Pin:
Item:
| Model | Sink plate PCB 5pin USB jack socket charging port dock plug micro usb connector with reel package |
| Life | 5000 cycles |
| Operating temperature | -40mΩ to +85mΩ |
| Rated burden | 3A 100V AC |
| Operating force | 5~20Nf |
| Supply ability | We are one of the top ten USB Connector suppliers in China |
| Certification | ROHS |
