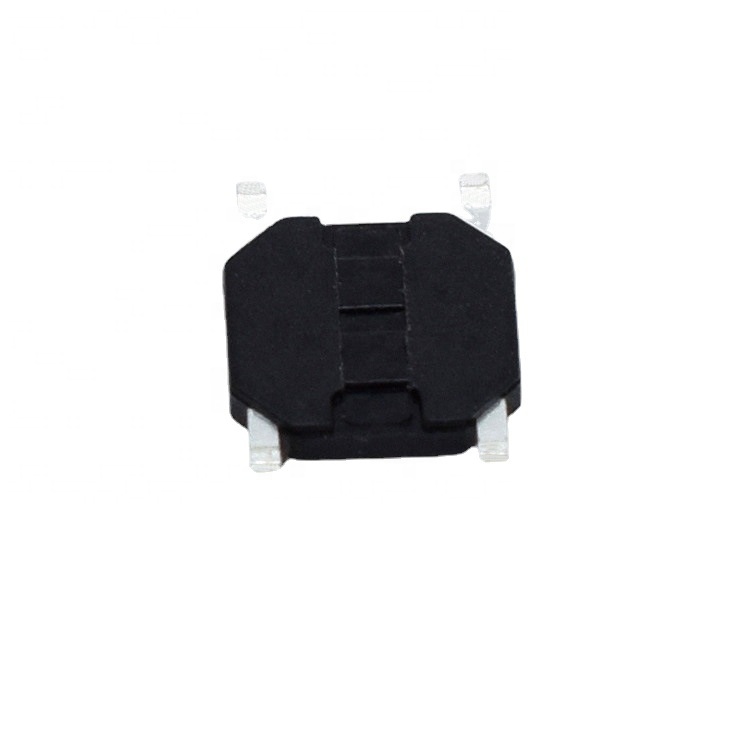

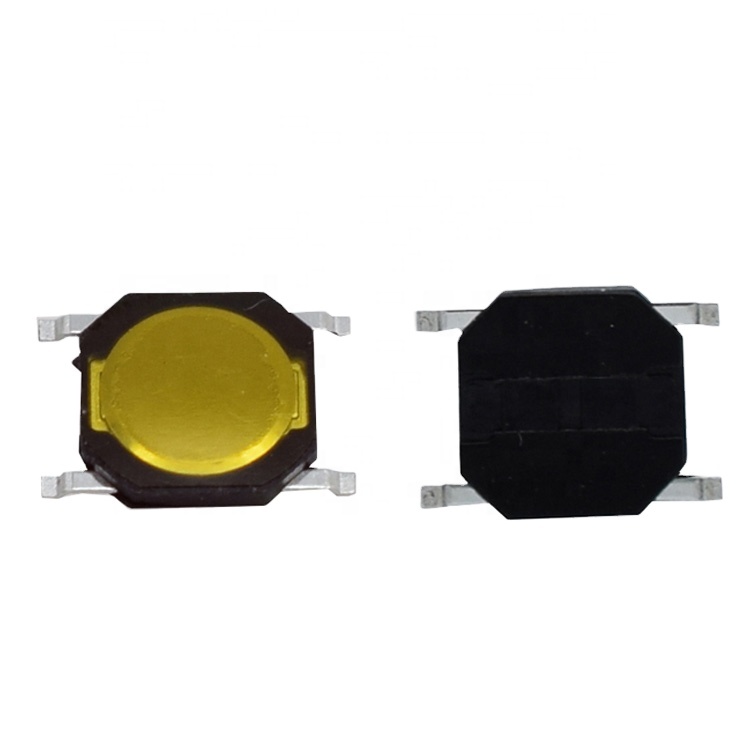

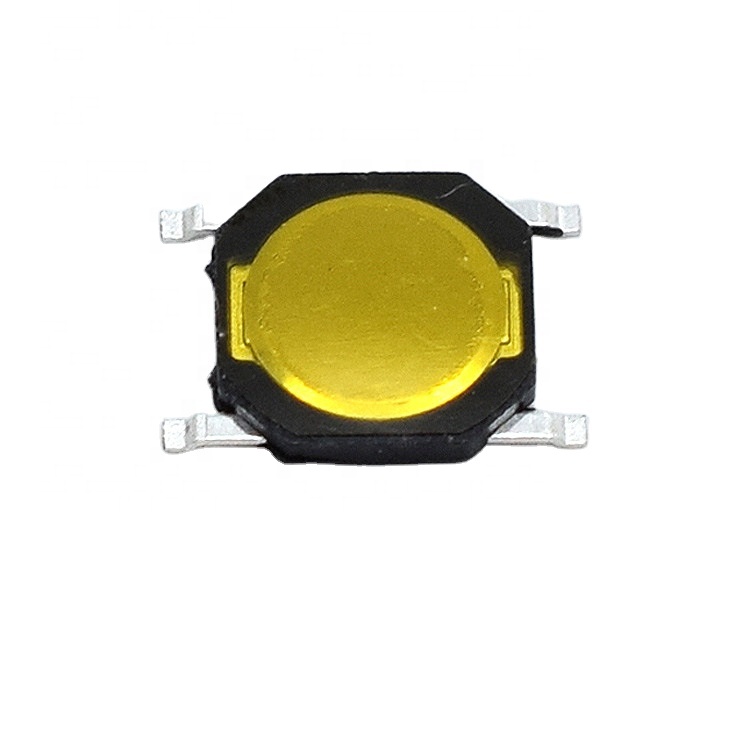

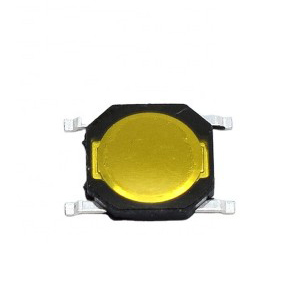

Product Name:Tact Switch SMD
Model:TS5208A
Life:100,000 Cycles
Rating:12VDC 50mA
Size:4.8*4.8*0.8 mm
Operating permperature:-20℃~+70℃
Operating Force:250±30gf
| Product Name | Tact Switch SMD |
| Model | TS5208A |
| Certification | CE\Rohs |
| Operating Force | 250±30gf |
| Rating | 12VDC 50mA |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Travel | 0.15±0.05mm |
| mechanical life | 100,000 Cycles |
| Single package size | 4.8*4.8*0.8 mm |
| operating temperature | -20℃~+70℃ |
Touch switch is also known as sensitive switch, in use can meet the conditions of operating force to the direction of switch
operation pressure switch function closed, when the pressure is withdrawn when the switch is disconnected, its internal structure
is based on the metal shrapnel force changes to realize the touch switch by: insert base shrapnel button The cover plate consists
of a waterproof touch switch and a polyimide film is added to the shrapnel
