Short Description:

Product info

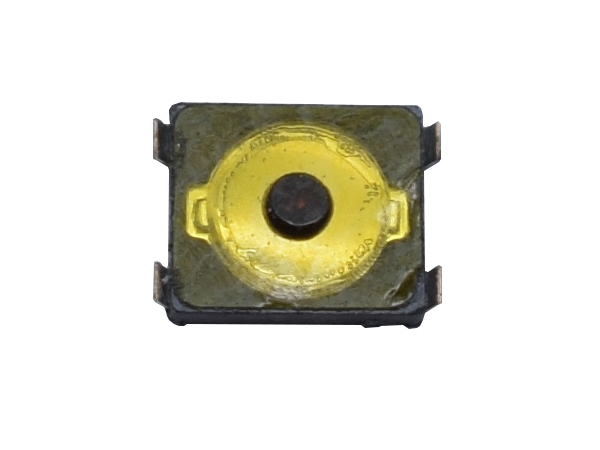

Item name: 3×2.6×0.65 tact switch

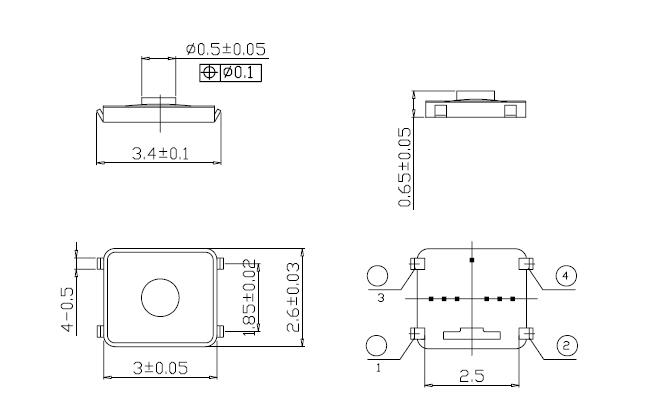

Model No.: 3×2.6×0.65

Rating: 50mA 12V DC

Insulation resistance: 100MW min 100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 50mW max

Operating temp.range: -20℃ ~ +70℃

Life time: 50,000 cycles; 30,000 cycles

Operating force: 130gf;180gf,250gf

Travel: 0.25±0.1mm
