Production description
Item name: toggle switch three way re-set swtich
Lifetime: 10,000 cycles
Operating force: 250±100gf
Operating temp.range: -10℃~+70℃
Current: 3A/6A
Voltage: 125V/250V
Usage:
- Can be used on low voltage or high voltage circuits ideal for switching lights or motors.
- Each switch comes with two hex nuts, a flat and a locking washer.
Product Name | 90 degree 3 way on-off-on automatically reset blue toggle switch |
Cycle | 10000 cycles |
Operating force | 250±100gf |
Temperature | -25℃~70℃ |
Voltage rating | 125V/250V |
Rated current | 3A/6A |
Contact resistance | 50mΩ max |
Insolution resistance | 100mΩ min |
Model Number: Twist switch
Max. Current: 6A
Max. Voltage: 250V
Mechanical Life: 10000 cycles

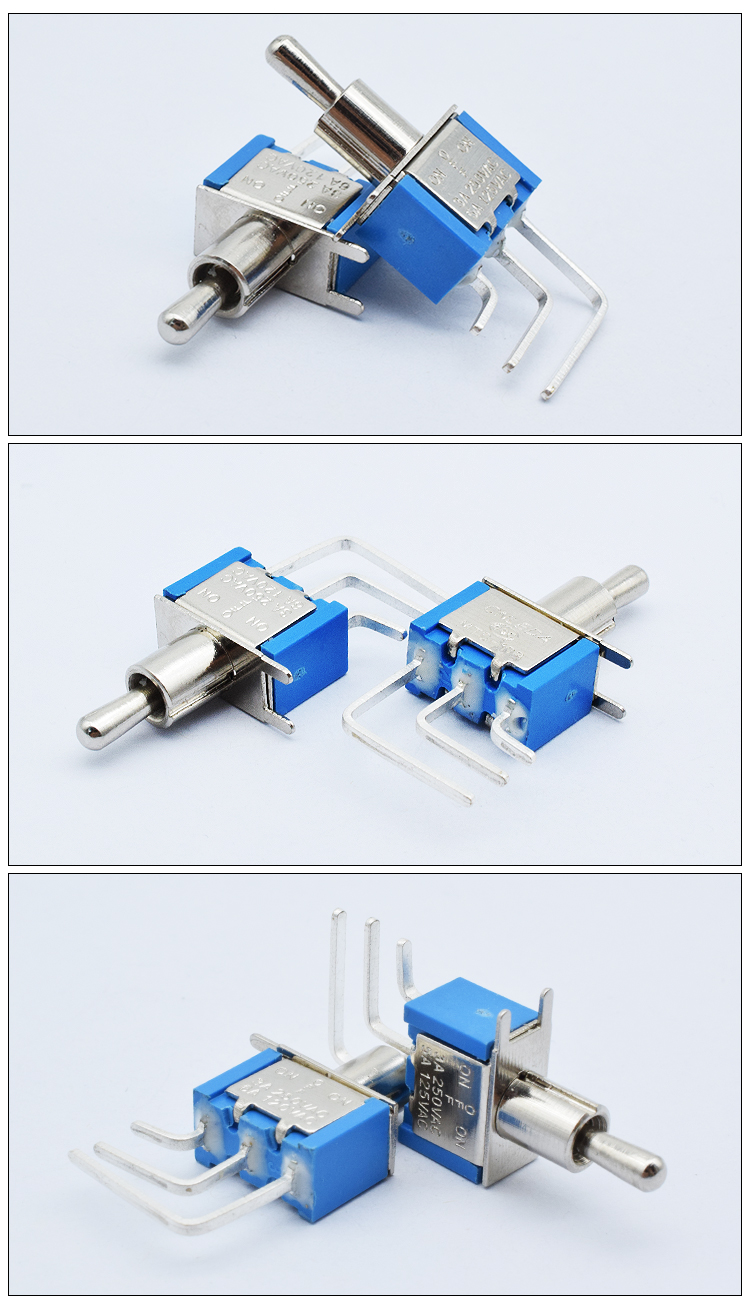

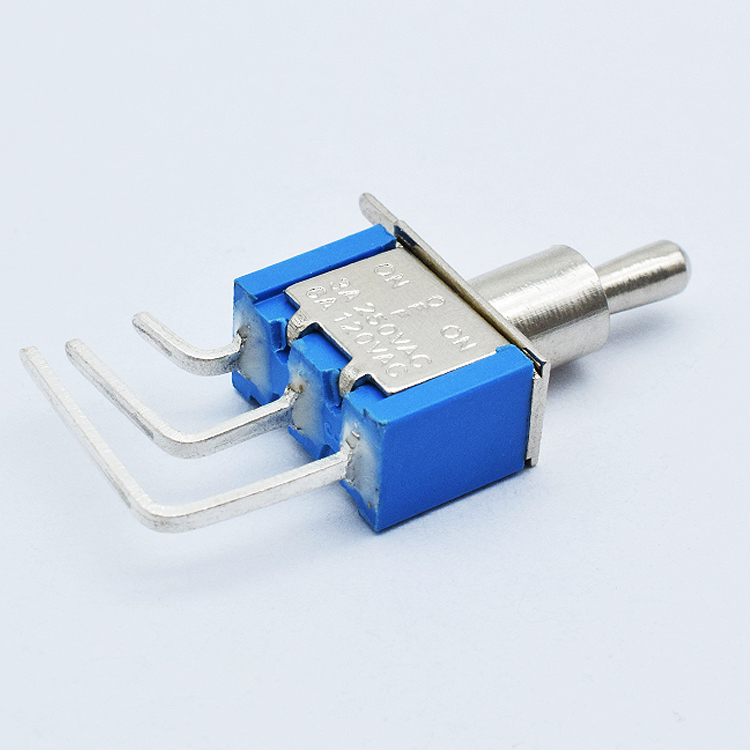

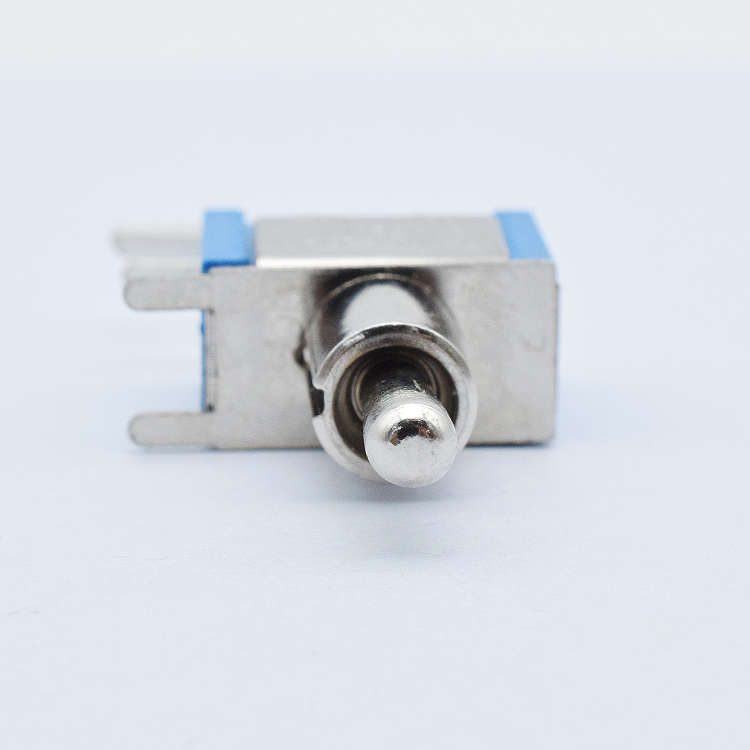

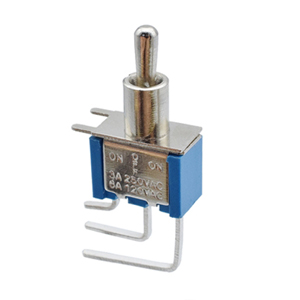

Product name: 90 degree 3 way on-off-on automatically reset blue toggle switch
Electrical Life: 10,000 cycles/Min
insulation resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Operating Temp: -25℃~+70℃
Operating strength: 250±100gf
Pin: 3 pin
Color: Blue/silver
