Production description

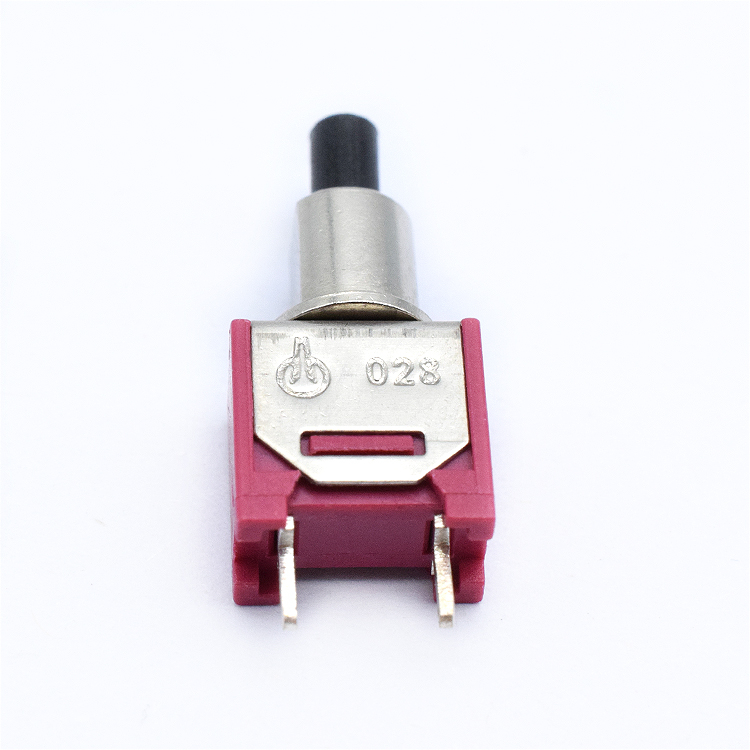

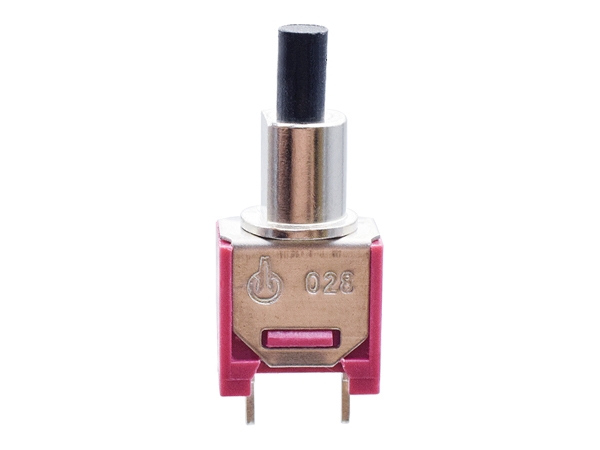

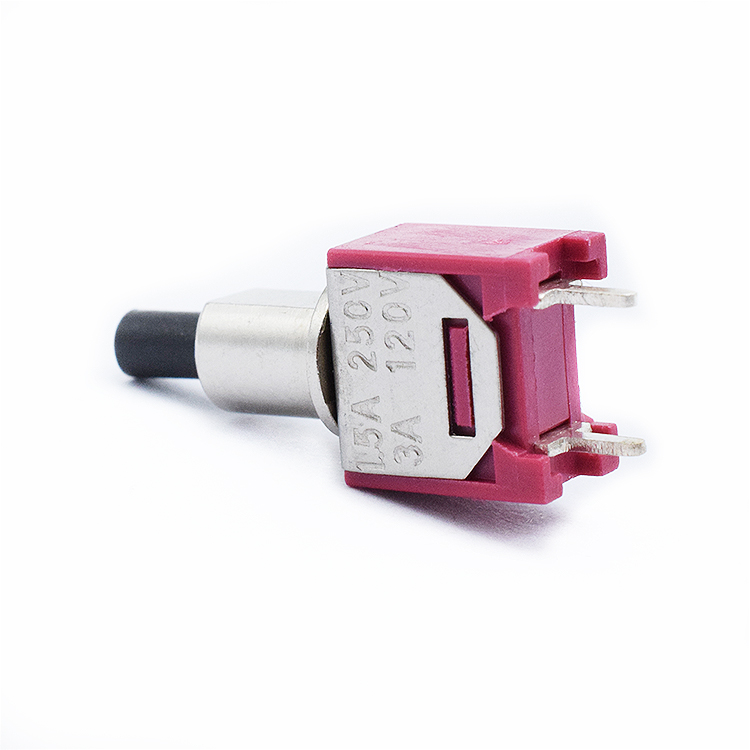

Item name: toggle switch 028
Lifetime: 10,000 cycles
Operating force: 250±100gf
Operating temp.range: -10℃~+70℃
Current: 3A/1.5A
Voltage: 120V/250V
Usage:
- Can be used on low voltage or high voltage circuits ideal for switching lights or motors.
Product Name |
90 degree 3 way on-off-on automatically reset blue toggle switch | |
Cycle | 10000 cycles |
Operating force | 250±100gf |
Temperature | -25℃~70℃ |
Voltage rating | 120V/250V |
Rated current | 3A/1.5A |
Contact resistance | 50mΩ max |
Insolution resistance | 100mΩ min |
Feature: The toggle switch is made of metal and bakelite. The shaft and bracket are both made of Brass Material. Boot Cap Cover, can effectively protect the switch. Delicate appearance with strong Construction. Look chic and high-end on your equipment.

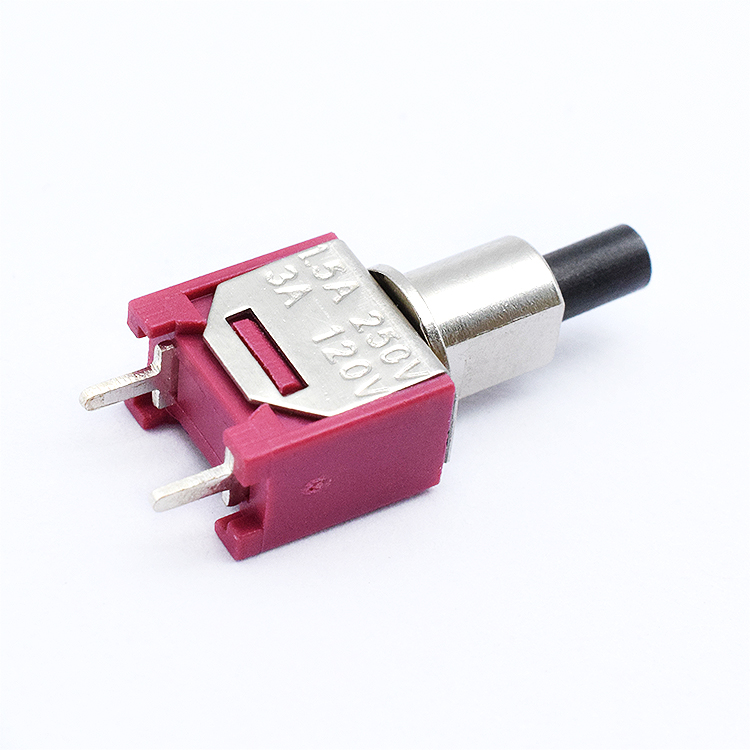

Function: toggle switch with 3 pin SPST design (single pole single throw), easy to turn ON OFF. The rating is 1.5A 250VAC; 3A 120VAC;

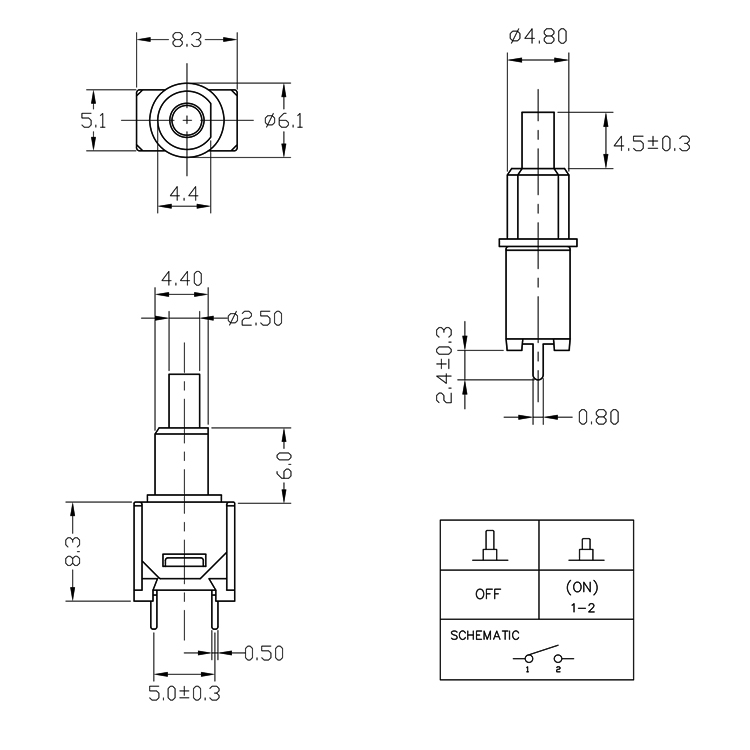

Installation: Mounting hole size is 0.24 inches (6.1MM). Each of the terminals has a machine screw for quick connections, The thickness of Terminals is 0.8mm.
Mechanical life: more than 100,000 cycles. Electrical life: more than 10,000 cycles.
Application: Waterproof toggle switch is widely applied to various additional electric equipment inside and outside Auto Car Marine Boat, such as lights, chassis lamp, fog lamps, dome light, etc.
