Production description

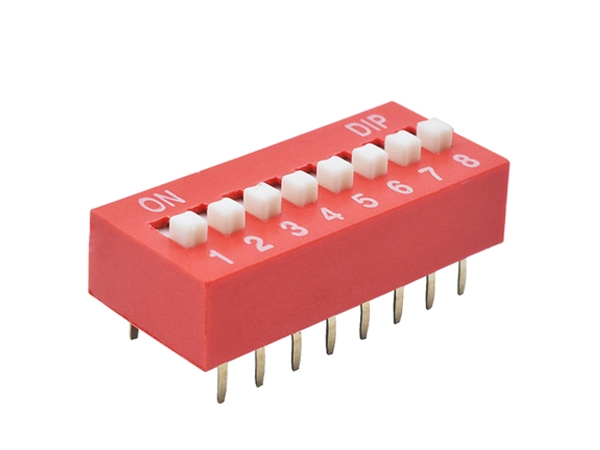

Item name：DIP switch DS08
Contact capacity：25mAat24VDC
Contact resistance：50mΩ max
Insolation resistance：50mΩ max
Dielectric strength：500VAC/1min
Operating force：1000gf max
Electrical life：3,000 cycles
Operating temperature：-20℃ to 70℃
Title : Pitch 2.54mm DIP Switch red blue SLPS DIP Switch
Basic Info.
Brand Name: HANXIA
Max. Current: 24VDC
Max. Voltage: 25mA
Pitch: 2.54mm
Colour: Red Blue
Base: UL94V-0 PBT Thermoplastic black
Cover: UL94V-0 PBT Thermoplastic red
Terminal: copper alloy plating
Packing: Tube or Tape and Reel
Electrical life: 2000 operations per switch 24VDC,25mA
Delivery time: 10-15days
Min.Order: 100 Piece/Pieces
Means of Transport: Ocean, Air, Land
Supply Capacity
Production Capacity: 500000pins/day
Packing:tube or tape and reel
Delivery Date: according to the order quantity
Details of Pitch 2.54mm DIP Switch red blue SLPS DIP Switch
1).Material:
a.base:UL94V-0 PBT Thermoplastic black
b.cover:UL94V-0 PBT Thermoplastic red,blue
c.button:UL94V-0 PBT Thermoplastic white
d.terminal:copper alloy plating
2).Mechanical:
a.operating force:0.2kgf(max)
b.stroke:2.00mm
c.operation temp:-20℃~+70℃
d.storage temp:-40℃~+85℃
3).Electrical:
a.electrical life:2000 operations per switch 24VDC,25mA
b.Non-switching rating:100mA,50VDC
c.Switching rating:25mA,24VDC
d.the contact impedance A:initial value of the maximum 50mΩ, B testing after the maximum 100mΩ.
e.insulation resistance:(at 500VDC) 100mΩ min
f.dielectric strength:500VAC/1minute
g.capacitance:Max 5 pF
h.the loop:single contact single selection
4).the loop:single contact single selection:
a.for best results,please follow these recommendation:keep all swith contacts in their “OFF” position for all operations
b.wave soldering:recommended solder temperature at 250±5℃,3-5 seconds.
c.hand welding:use 30 watt iron control temperature at 320℃.the welding time is about 2 seconds.
d.cleaning:cleaning process using ultrasonic method,can give better results,use steam mode,temperature should not exceed 51℃.

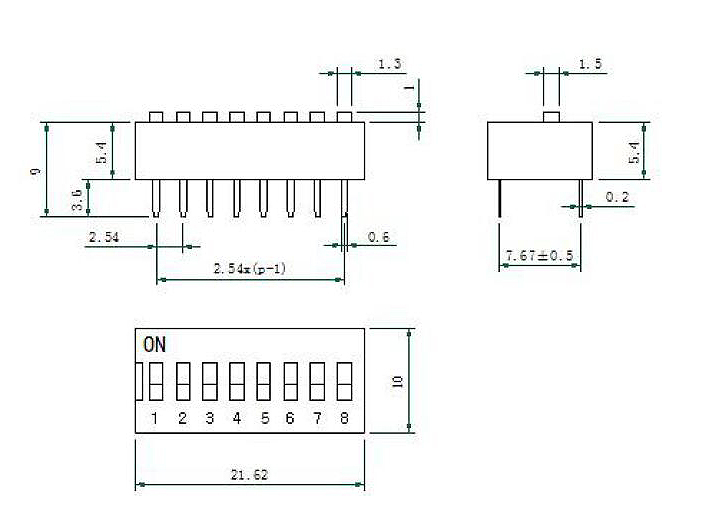

5).Dimension
| part number | position | DIM.A.(mm) |
| MX 1001-1P | 1 | 3.90 |
| MX 1001-2P | 2 | 6.64 |
| MX 1001-3P | 3 | 9.18 |
| MX 1001-4P | 4 | 11.72 |
| MX 1001-5P | 5 | 14.20 |
| MX 1001-6P | 6 | 16.80 |
| MX 1001-7P | 7 | 19.34 |
| MX 1001-8P | 8 | 21.88 |
| MX 1001-9P | 9 | 24.42 |
| MX 1001-10P | 10 | 26.96 |
| MX 1001-12P | 12 | 32.04 |
5.Package of 2.54mm DIP Switch high quality SLPS
1.we pack the DIP Switch with IC TUBE or Tape and Reel,so keep the goods are in high quality when delivery.
2.we pack the DIP SWITCH with two steps,inner is tube or tape and reel,outer is carton.
3.we pack the DIP SWITCHas your special requirements.
