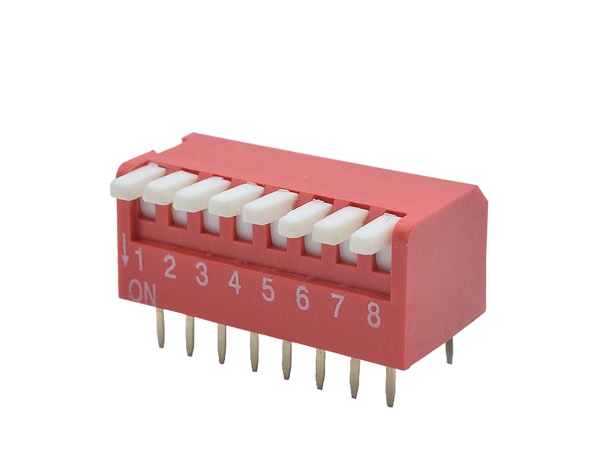

Waterproof electronic dip switch 8 position 1P 2P 3P 4P 5P 6P 8P single pole single throw 2.54 pitch piano type dip switch
Current Location:HOME > PRODUCTS > DIP Switch >

Short Description:

Production description
Item name：DIP switch DP08
Contact capacity：25mAat24VDC
Contact resistance：50mΩ max
Insolation resistance：50mΩ max
Dielectric strength：500VAC/1min
Operating force：400gf max
Electrical life：3,000 cycles
Operating temperature：-20℃ to 70℃


Message
PRODUCT DETAIL


Waterproof electronic dip switch 8 position 1P 2P 3P 4P 5P 6P 8P single pole single throw 2.54 pitch piano type dip switch
Quick Details


  • Place of Origin:

  • Guangdong, China


  • Brand Name:

  • hanxia

  • Model Number:

  • 2.54pitch(2-12PIN)

  • Max. Current:

  • 25mA

  • Max. Voltage:

  • 24VDC

  • Name:

  • DP series dip switch

  • insulation resistance:

  • 100MΩ at 250VDC

  • contact resistance:

  • 50mΩ max

  • dielectronic strenght:

  • 500VAC /1min

  • operate life:

  • 3000cycles

  • operate force:

  • 400gf max

  • working temperature:

  • -20°C to 70°C

  • pin:

  • 2-12pin

  • pitch:

  • 2.54

  • materials:

  • PBTcopper-plated

Supply Ability


  • Supply Ability

  • 400000 Piece/Pieces per Month


Packaging & Delivery


  • Packaging Details

  • carton package or reel tape.

  • Port

  • shenzhen

  • Lead Time:

  • Quantity(Pieces)1 - 10000>10000
    Est. Time(days)7To be negotiated
