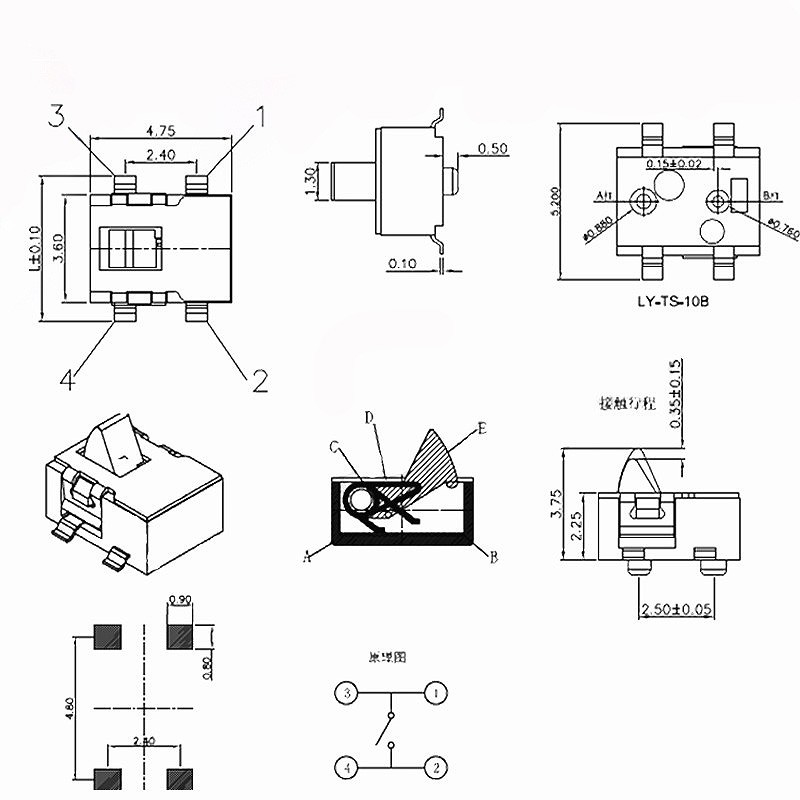

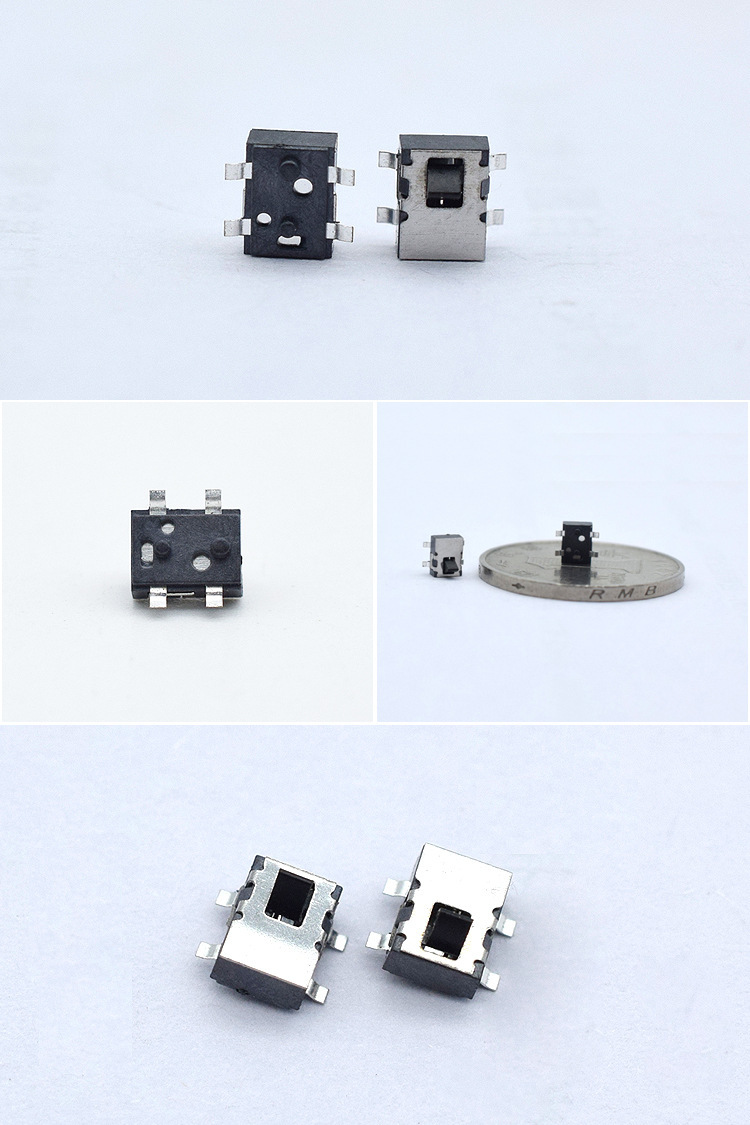

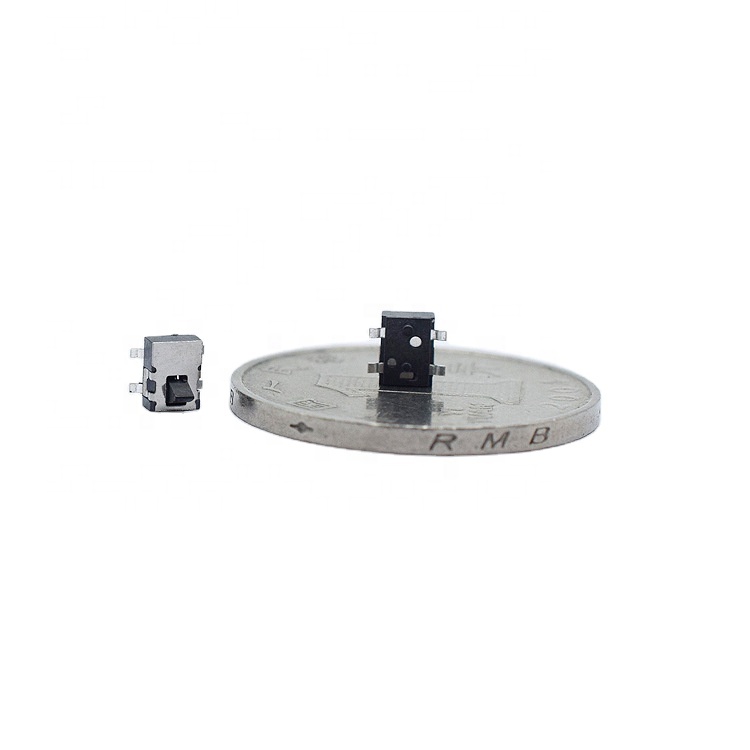

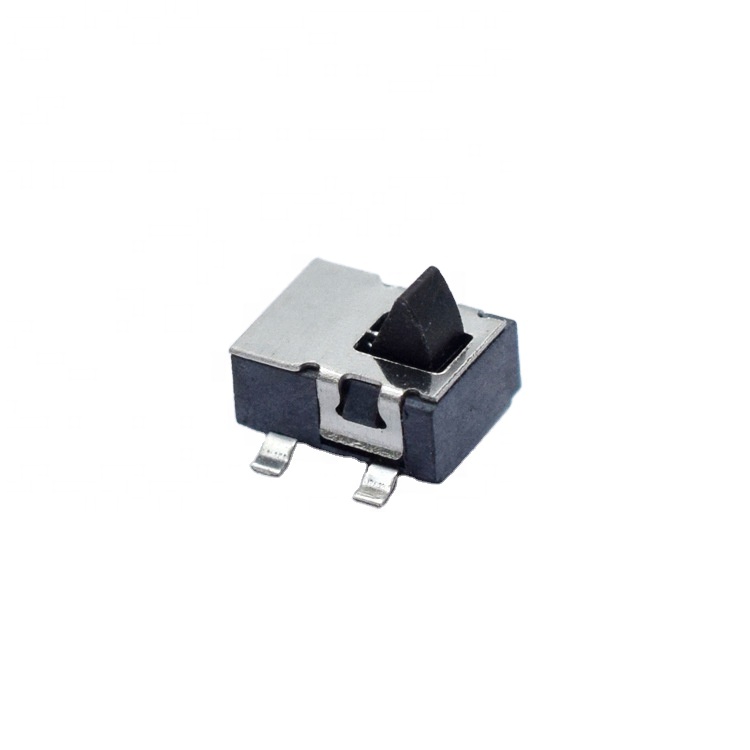

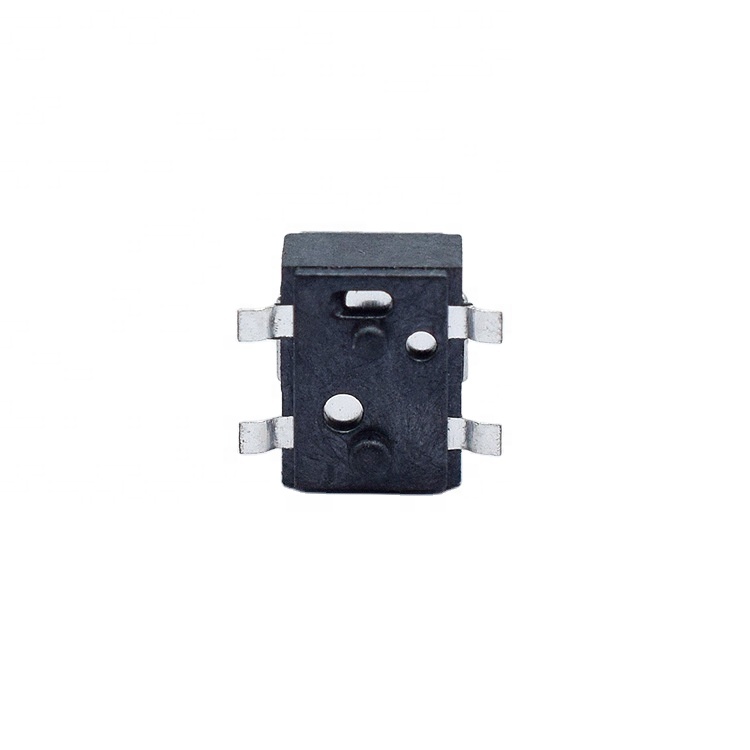

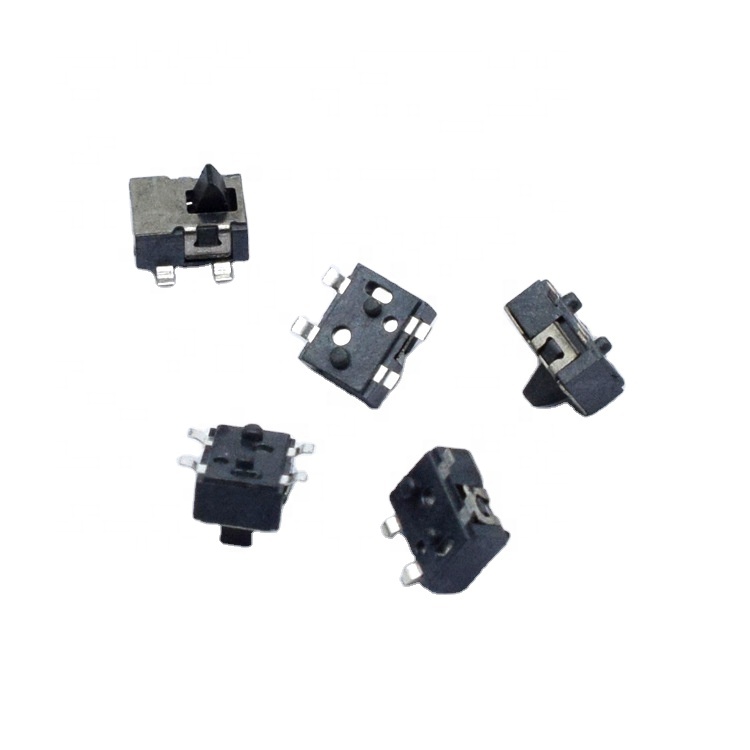

KFC-VT-224 3.5*4.7 Limit switch Micro detection 103 reset limit switch LY-TS-10 Switch
| Product Name | Micro switch with cable |
| Size | 3.5*4.7mm |
| Max. Current | 0.2A |
| Max. Voltage | 60V |
| Operating Temperature | -40℃-+70℃ |
| operating force | 20-35gf |
| Category | 4 pin |
| Withstand Voltage | AC250V(50Hz)min |
| Life | 50,000 cycles |
| Contact Resistance | 0.05Ω Max |
| Insulation Resistance | 100mΩ Max Min |
Micro switch in frequent exchange circuit device for automatic control and safety protection etc., are widely used in household electric appliances electronics instrument of mine power system electrical equipment, as well as military fields such as aerospace ship missile tanks, has been widely used in the above areas, switch are small, but plays an irreplaceable role At present, the micro switch on the domestic market according to the different use requirements, the mechanical life of the switch has 3W times to 1000W times, generally 10W 20W 50W 100W 300W 500W 800W times, the general use of beryllium bronze tin bronze Stainless steel wire is used to make reeds. ALPS in foreign countries can make reeds up to 1000W times. Their reeds are made of rare metal titanium, which can be used in computer mouse, car mouse, car electronic products, communication equipment, military products, test instruments, gas water heater, gas stove, small household appliances, microwave oven, electric cooker, floating ball equipment and supporting medical instruments 24 hour timers for building automation power tools and general electrical and radio equipment
