Product description

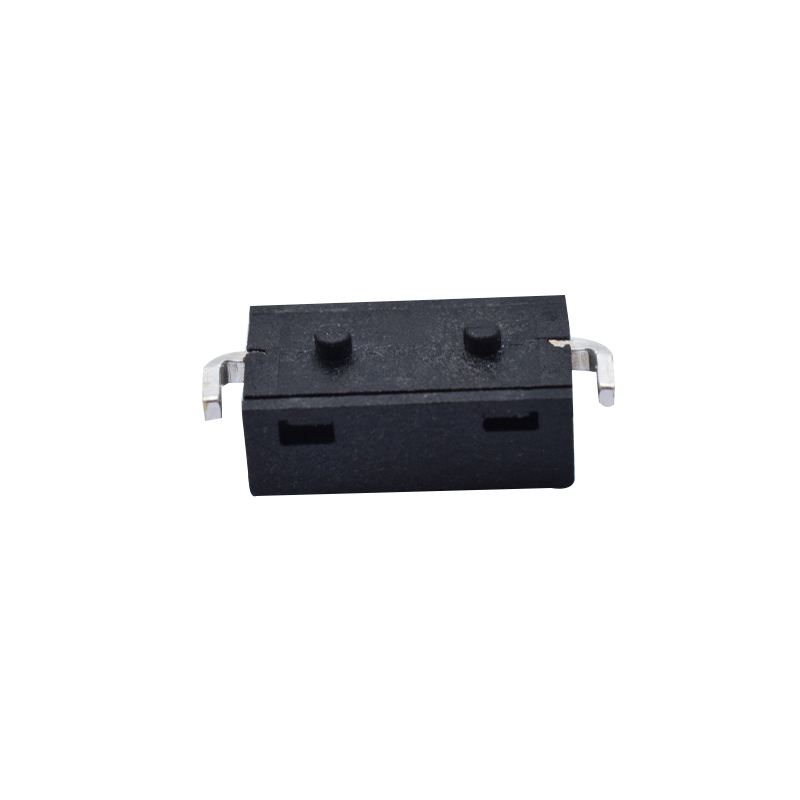

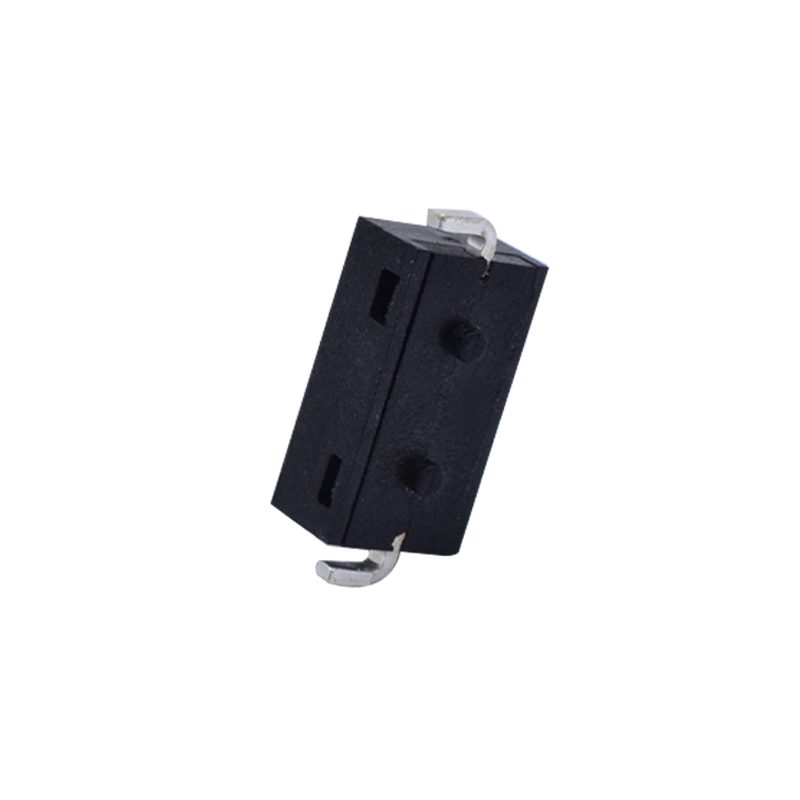

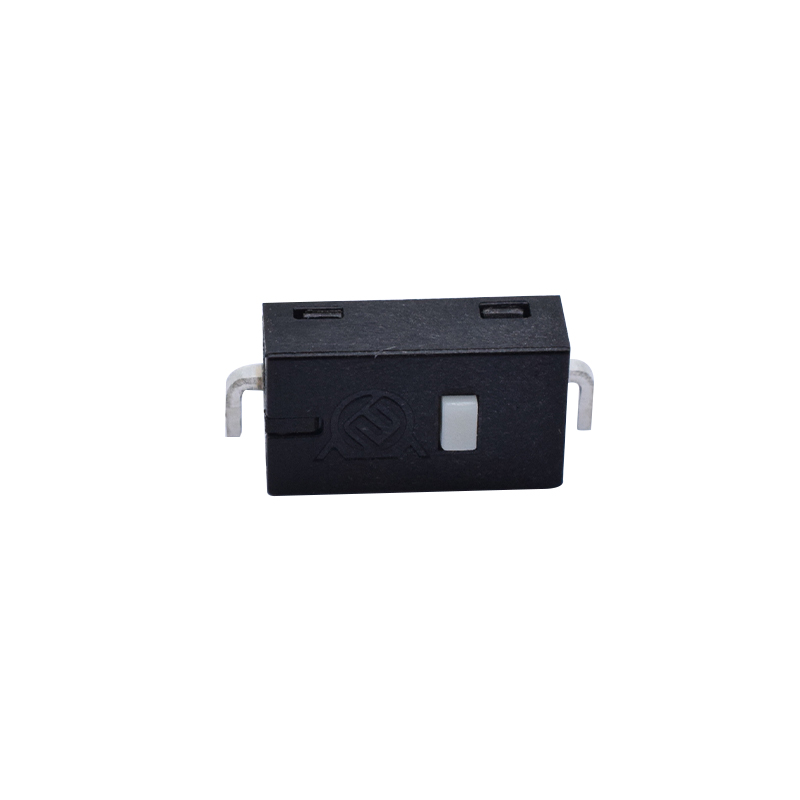

Item name: Micro Switch
Model No.: DS036-00M-60-5
Rating: 100mA.30V DC
Insulation resistance: 100MΩ 500VDC
Dielectric strength: 500V AC/min
Contact resistance: 100mΩ max
Operating force: 60gf/20gf
Travel: 0.3mm
Operating temperature: -25℃~+70℃
Soldering temperature:255±5℃ 5s
Lifetime: 5,000,000 cycles

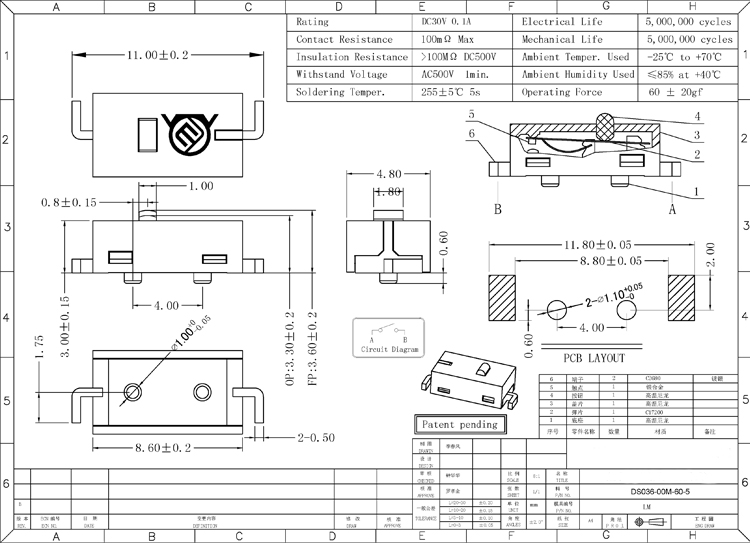

| Product Name | DS036-00M-60-5 |
| Size | 8.6*4.8*3.0mm(Height) |
| OP/FP | 3.30±0.2mm/3.60±0.2mm |
| Rating Voltage | 30VDC |
| Operating temperature | -25℃~+70℃ |
| Contact Resistance | 100mΩ Max |
| Insulation Resistance | 100mΩ Min |
| Withstand Voltage | 500VAC(50/60Hz)/min |
| Contact Current | 0.1A |
| Operating Life | 5,000,000 Cycles |
| Operating Force | 60±20gf |
