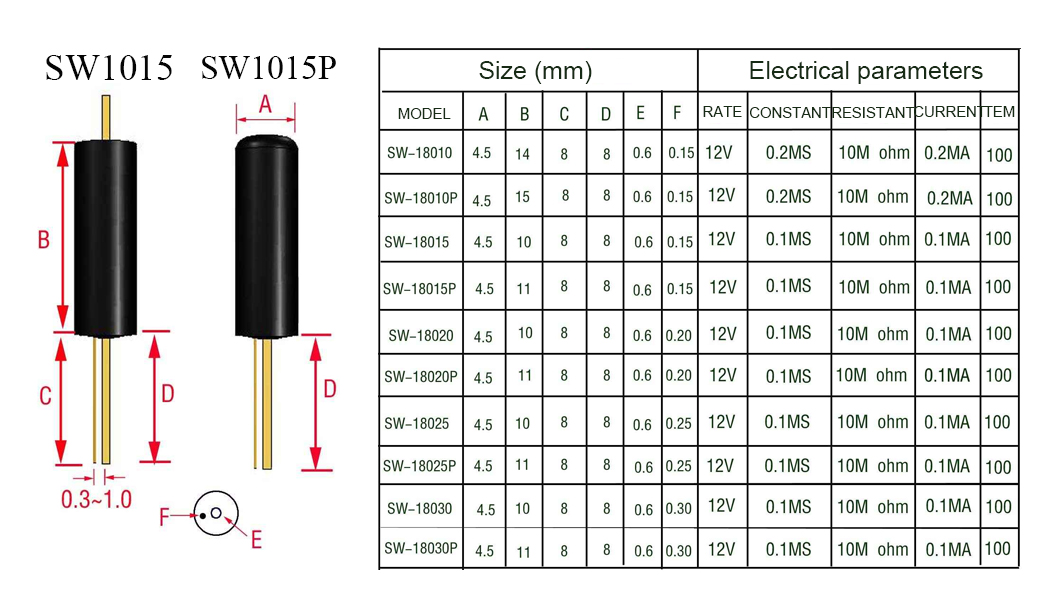

Model Number: SW-18015p; Sensitivity: Retarded Sensitivity; Max.Voltage: 12V

• Rated Thermal Current: 20mA; Insulation Resistance: 10M ohm; Max.Temperature Resisting: 100℃

• 【CHARACTERISTICS】Non-directional,turning on by any touching off angle.

• 【ADVANTAGE】Features retarded sensitivity, not sealed package, good performance and reliable.

• 【APPLICATION】Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices.

Function:  vibration detecting

Applications :Alarm device \Toys\ Electronic scale

Features:

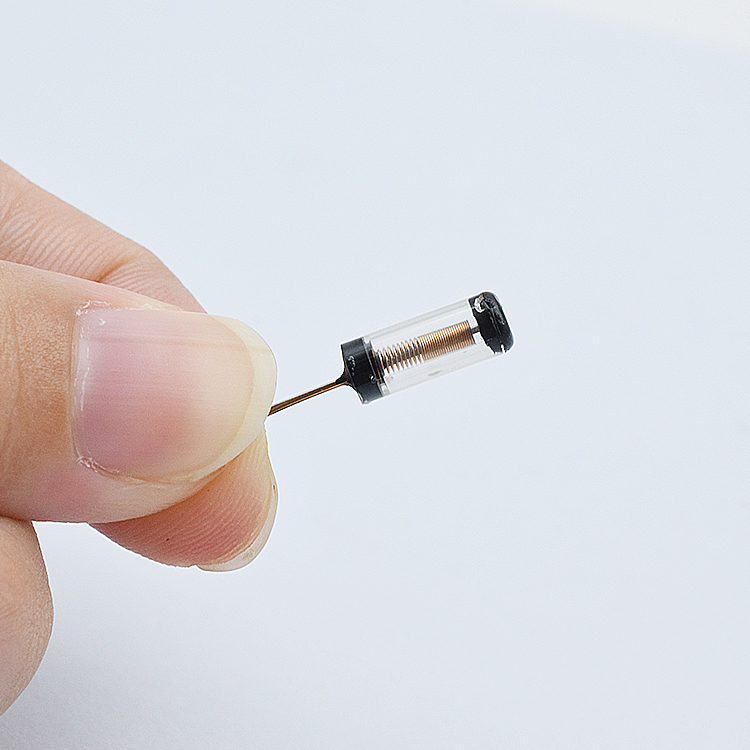

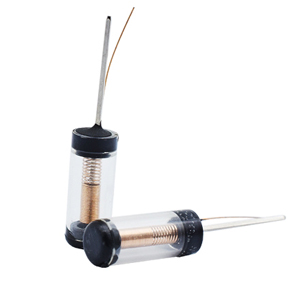

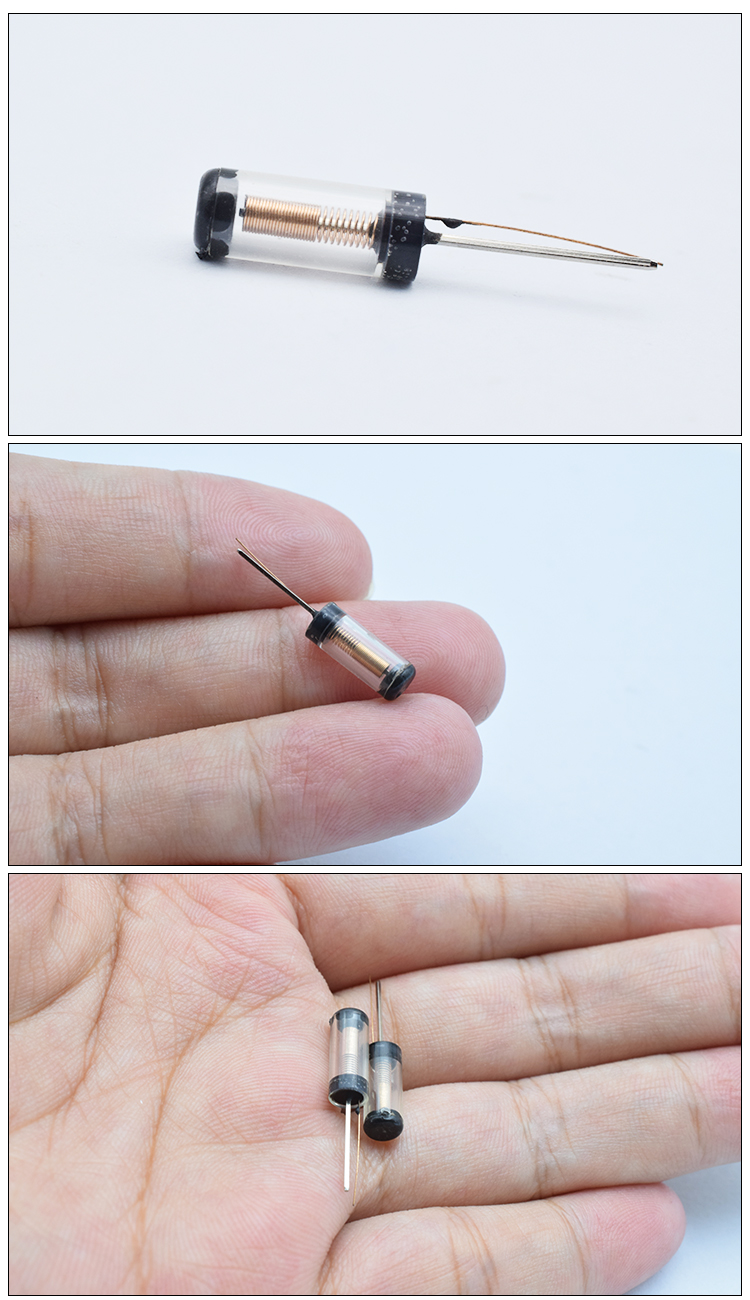

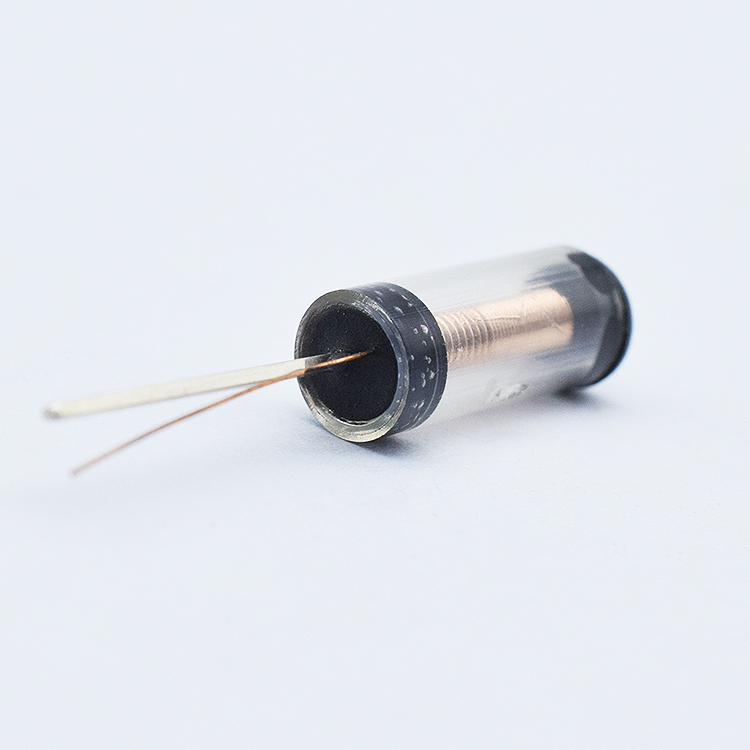

1.SW-18015P series are spring type, no directional vibration sensor trigger switch, any angle can trigger

2.switch is open circuit OFF-state, when it is static, when external force to touch and corresponding vibration, or movement speed achieve adequate (partial)

centrifugal force, conductive pick feet will produce instant conductivity is instant  ON-state, when external force disappear, switch back to open circuit OFF-state.

3.Switch have the identification P at the bottom, for completely airtight;

4.Material compliant with ROSH directive, replace the mercury switch

5.Trigger high-slowness sensitivity

6.Switch external for metal, high heat resistance
