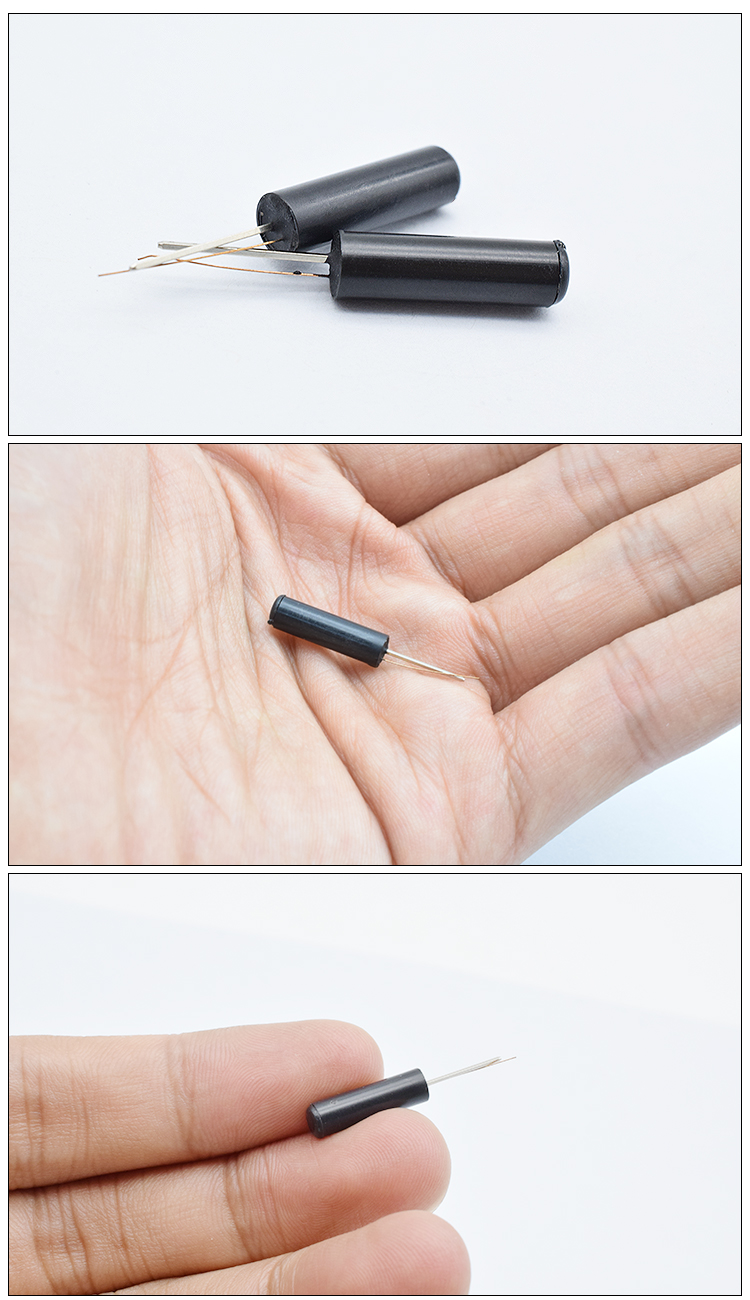

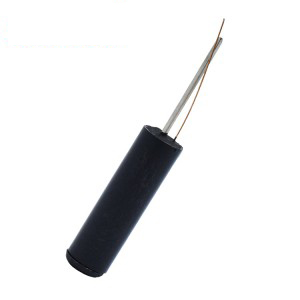

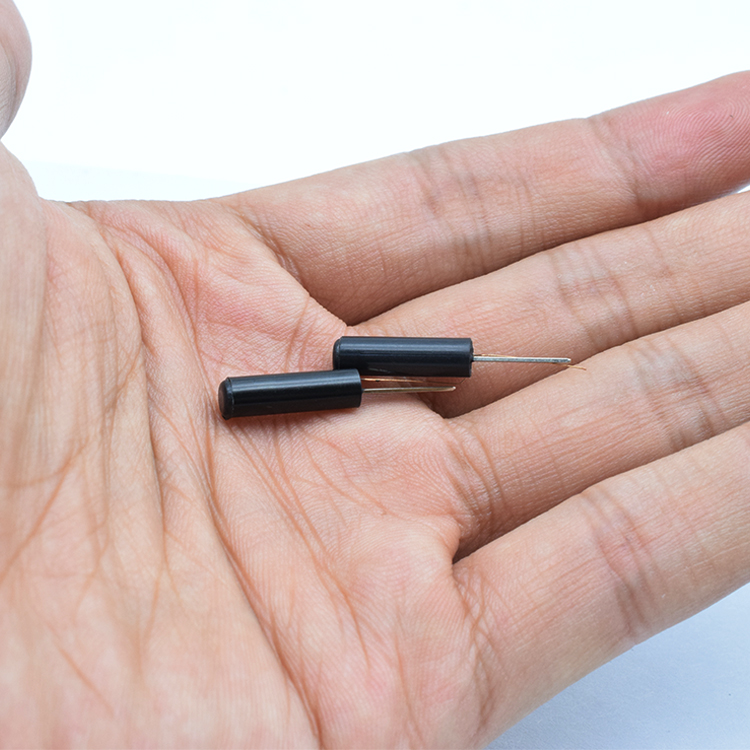

Product Name: SW-18010P
Model: SW-18010P Vibration Sensor Switch
Conductive Time：2ms
Current Range: 20mA
Contact Resistance: 10mΩ
Voltage Range：12V
Sensitivity：High
Heat resistance：100℃
Quick Details
Certification: Rohs
Whether the smart: No
Place of Origin: Guangdong, China
Brand Name: OEM/HANXIA
Model Number: SW-18010P
Max. Current: 20mA
Max. Voltage: 12V
Item name: 0.02A 12V vibration switch SW-18010P shaking switch reed switch
Heat resistance: 100℃
Rated load: DC12V 20mA
Work cycle: 200,000 cycles
Conductive time: 2ms
1. The switch at rest for open state (OFF) when the external force contact surface reached the appropriate vibration force when the conductive pin will produce instant conduction state (ON), so that the electrical characteristics change, and when the external force disappear, the electrical characteristics restore open state (OFF);
2. No direction, any Angle can trigger the work;
3. This model is waterproof and sealed;
4. This switch is suitable for small current circuit trigger;
5. Switch pin welding temperature: hand welding 260℃±10℃;
6. The switch has been treated with oxidation resistance and can be used for more than one year.
| 1 | voltage | Less than 12 V |
| 2 | current | Less than 20 mA |
| 3 | Conduction time | About 2 ms |
| 4 | Closed circuit resistance | <10ohm |
| 5 | Open circuit resistance | >10M ohm |
| 1 | temperature resistance | 100℃ |
| 2 | Terminal pull | 500gf for 1 minute |
| 3 | humidity | 95% RH 40℃, 96 hours |
| 4 | Operating life | Over 100,000 cycles |
| 1 | Plastic pipe | Blue ABS |
| 2 | needle | Brass wire, gold plated |
| 3 | spring | Brass, gold plated |
| 4 | Heat shrinkable tube | PET heat shrinkable tube black |
| 5 | The sealing colloid | temperature resistance of nylon |
Welding characteristics:
Solder: tin content of 100%
Welding humidity: 260℃±10℃
Welding time: 2-2.5 seconds
Do not use strong acid, alkaline flux
Packing:
1000PCS/bag (PVC plastic bag)
