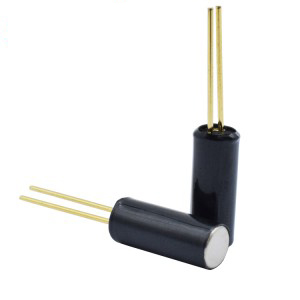

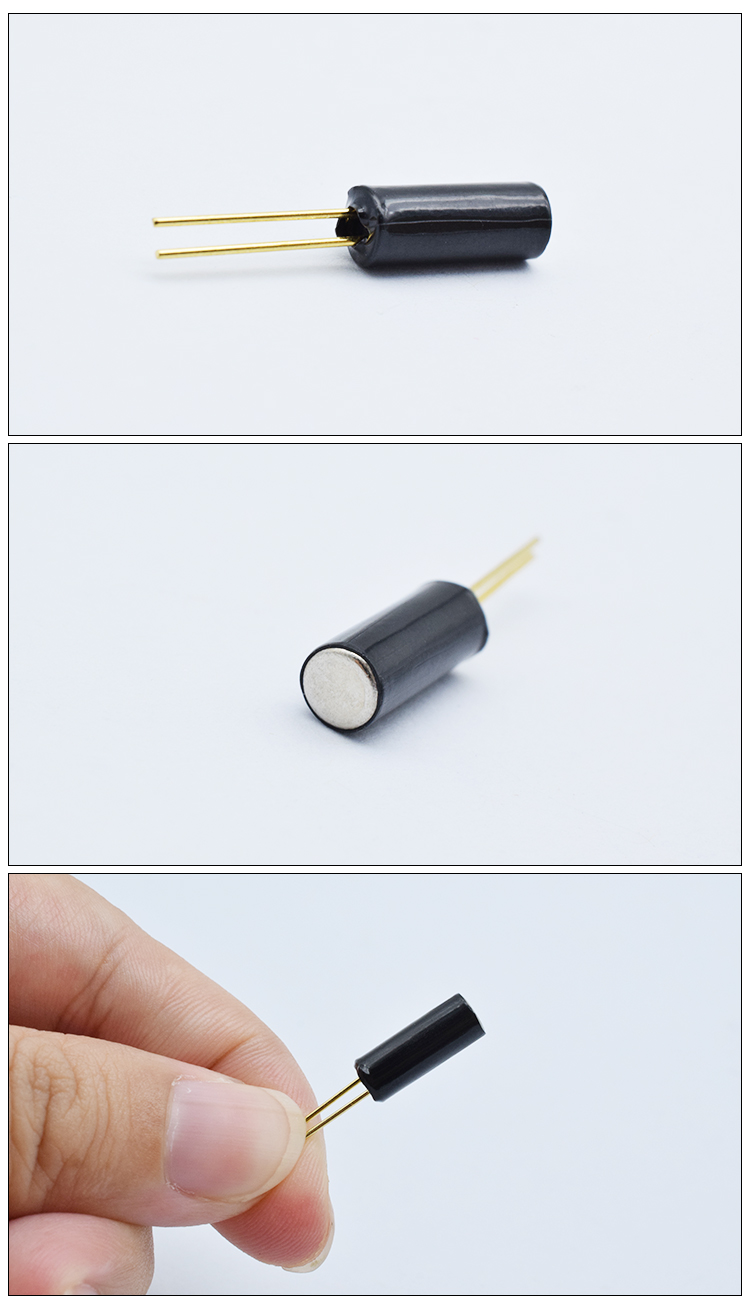

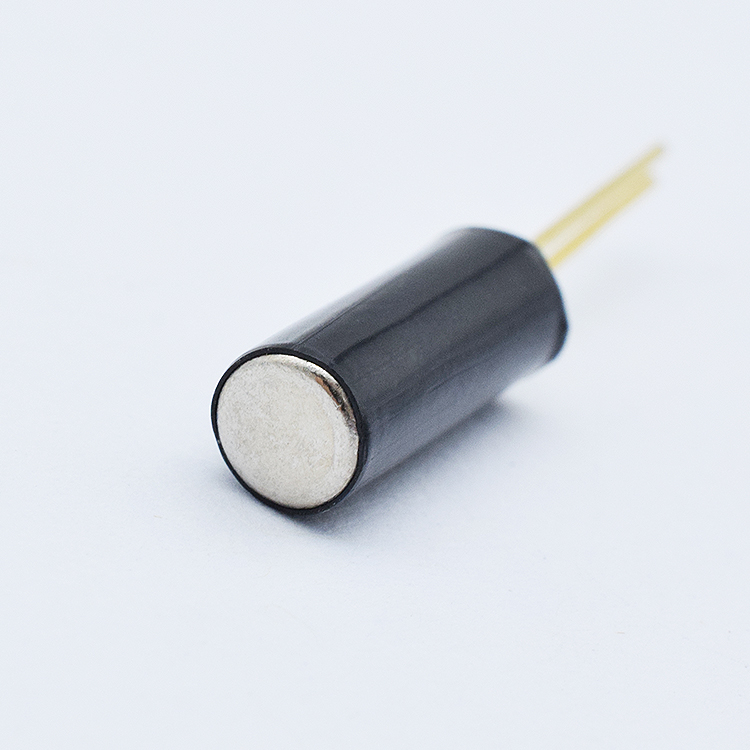

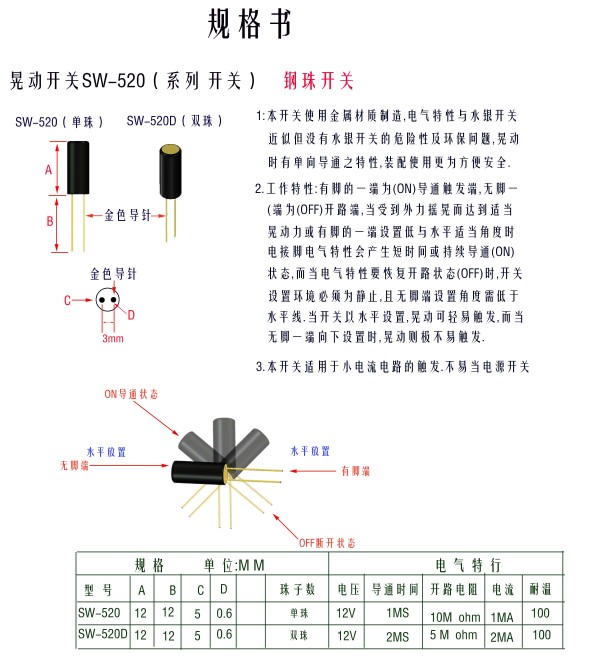

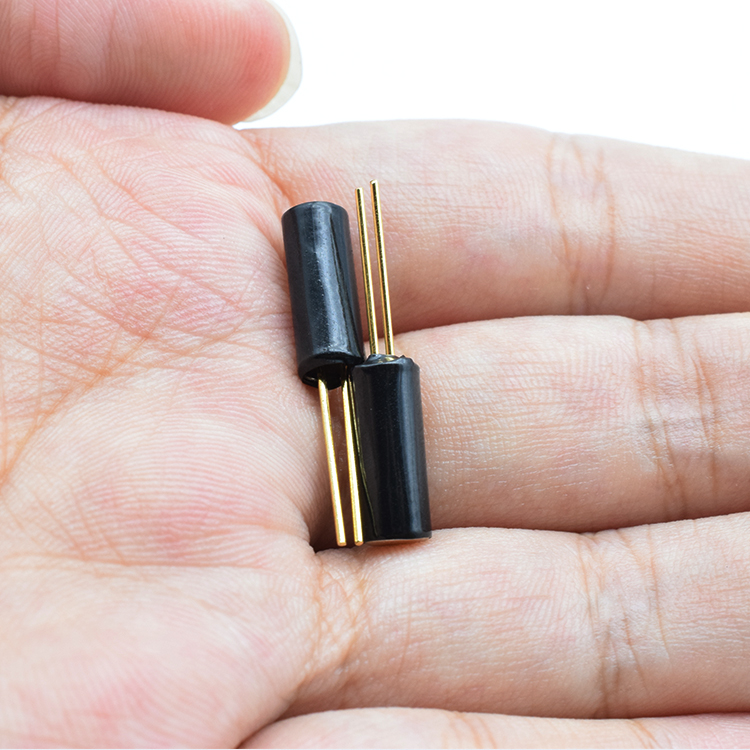

Product Name: SW-520D
Model: SW-520D Vibration Sensor Switch
Conductive Time：2ms
Current Range: 2mA
Contact Resistance: 5mΩ
Voltage Range：12V
Sensitivity：High
Heat resistance：100℃
| Product Name | 2mA 12V vibration switch SW-520D shaking switch reed switch |
| Model | SW-520D |
| Cycle | 200,000 cycles |
| Heat resistance | 100℃ |
| Rating | 12V,2mA |
| Sensitivity | High |
| Working type | on-off shift |
| Conductive time | 2ms |
A vibration switch, properly called a vibration sensor, is an electronic switch that transmits the result of an induced shock to a circuit
device and makes the circuit work.
Some people call it the vibration switch, and some people call it the slide switch or the slosh switch, and so on, but these are
not entirely correct. The name of the industry is generally divided into two categories, spring switch and ball switch.
