Production description
Item name: Slide switch
Lifetime: 10,000 cycles
Operating force: 250±100gf
Operating temp.range: -10℃~+70℃
Current: 2A/5A
Voltage: 120V/250V
Usage:
- For the operation of telecommunication equipment such as mobile phones,audio apparatus,office equipment,communication apparatus,camcoders,portable audios,car radios etc.
Model Number: MSS12C02
Max. Current: 0.1A ; Max. Voltage: 12V
Mech anical Life: 10,000 cycles

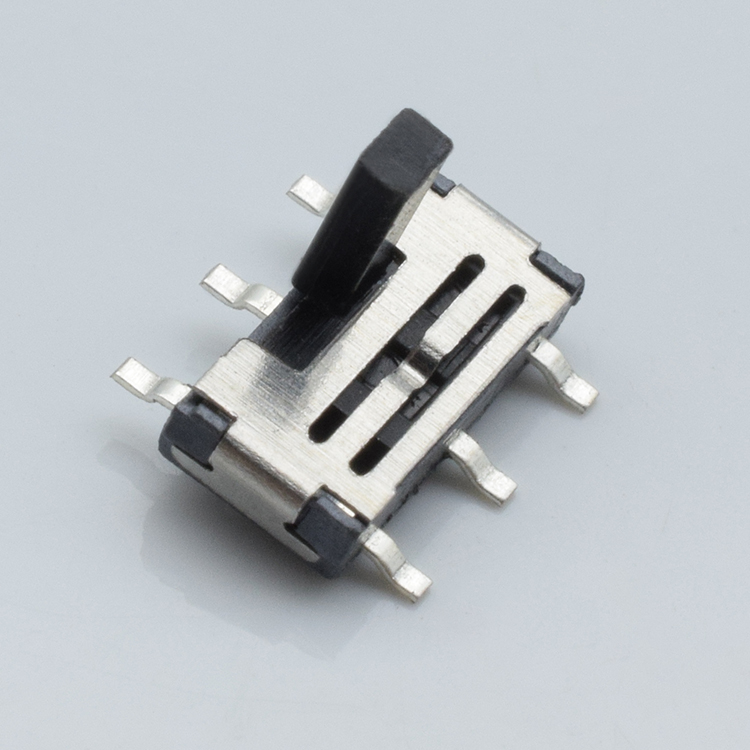

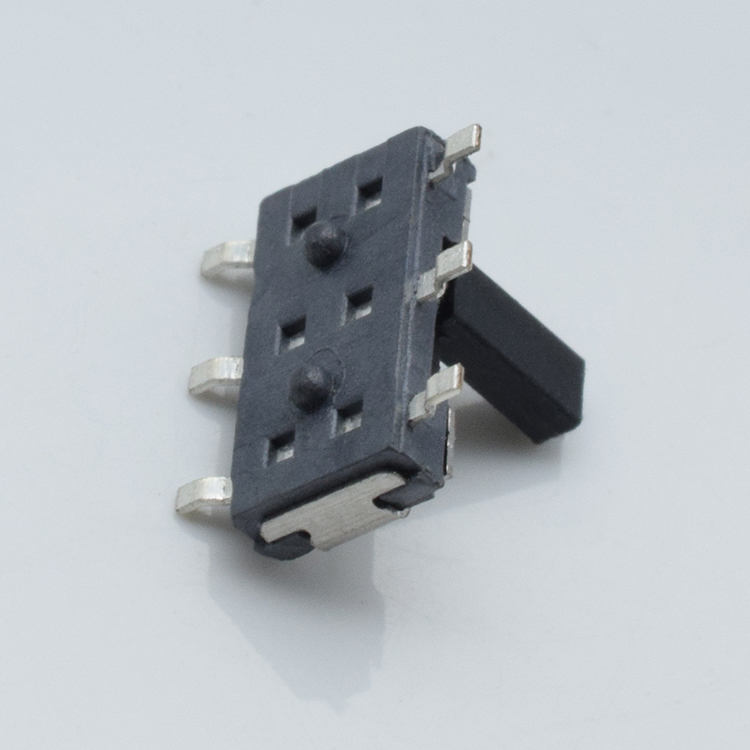

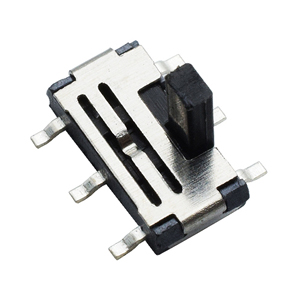

Product name: Slide Switch MSS12C02 SMD/SMT miniature switch 2 position
Color: Silver/White
Operating Temperature: -10°C~50°C
Contact Resistance: ≤100mΩ ;Insulation Resistance: ≥50mΩ
Dielectric strength: AC250V(50Hz) for 1min
