Production description

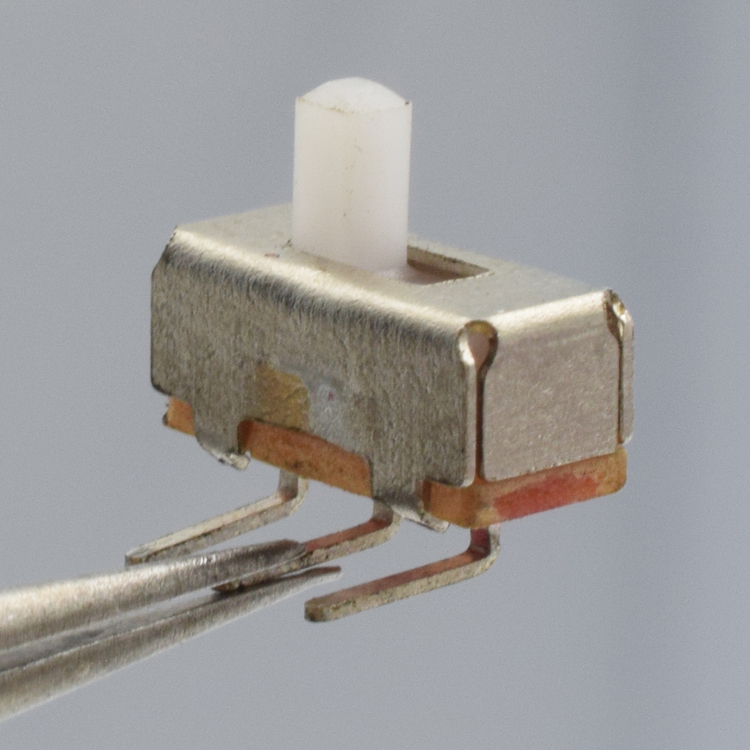

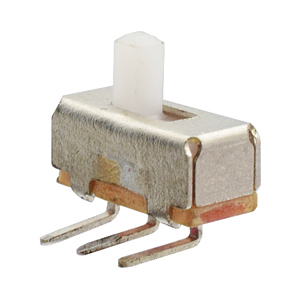

Item name: slide switch
Lifetime: 10,000 cycles
Operating force: 250±100gf
Operating temp.range: -10℃~+70℃
Current: 2A/5A
Voltage: 120V/250V
Usage:
- For the operation of telecommunication equipment such as mobile phones,audio apparatus,office equipment,communication apparatus,camcoders,portable audios,car radios etc.
PRODUCT DETAIL
Basic Information
| Life cycles | 10,000 Cycles |
| Rating | DC12V 0.3A |
| Function | 1P2T |
| Travel | 2.0mm |
| Operating force | 220±100gf |
| Contact resistance | 100mΩ Max |
| Insulation resistance | 100mΩ Min |

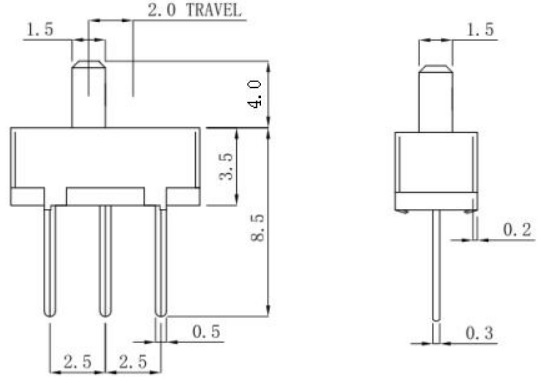

Dimension
Application
Slide switch is to turn on or off the circuit by turning its actuator (switch handle). It has the characteristics of flexible slider action, stable and reliable performance, and is widely used in electrical appliances, machinery, communications, digital audio and video, building automation, and electronic products.
