Product Info

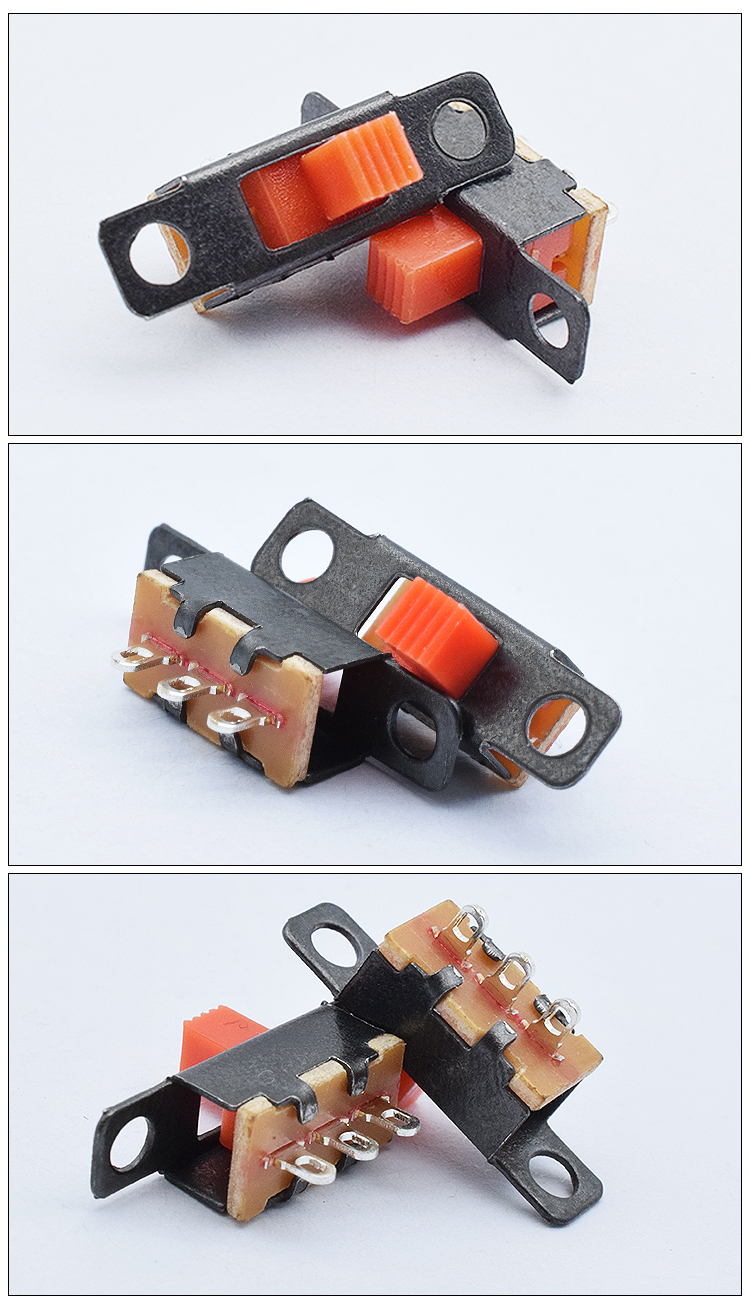

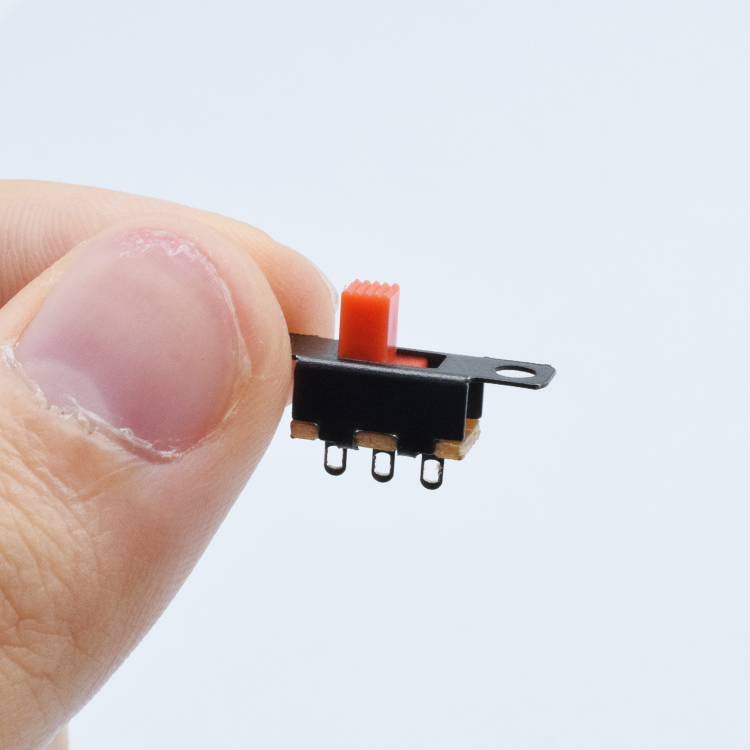

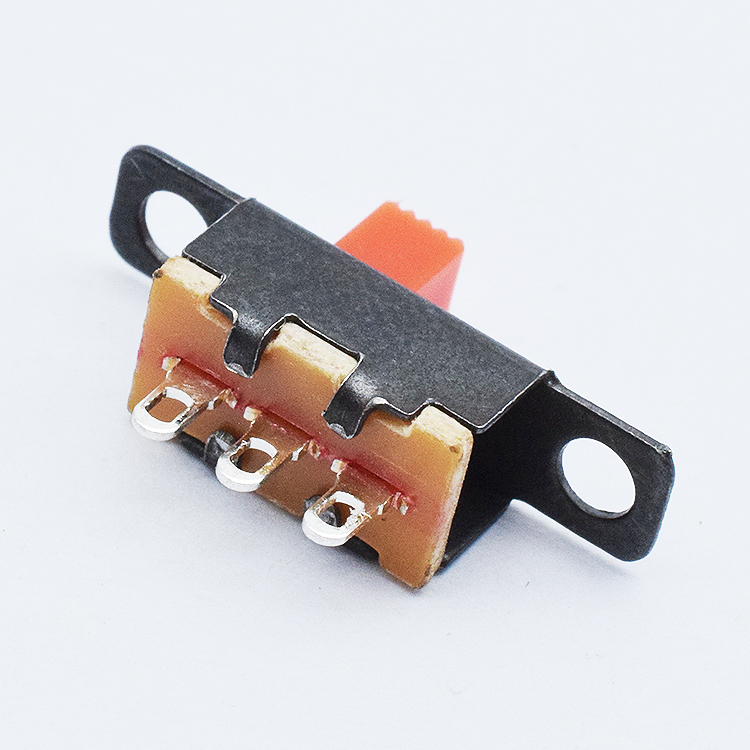

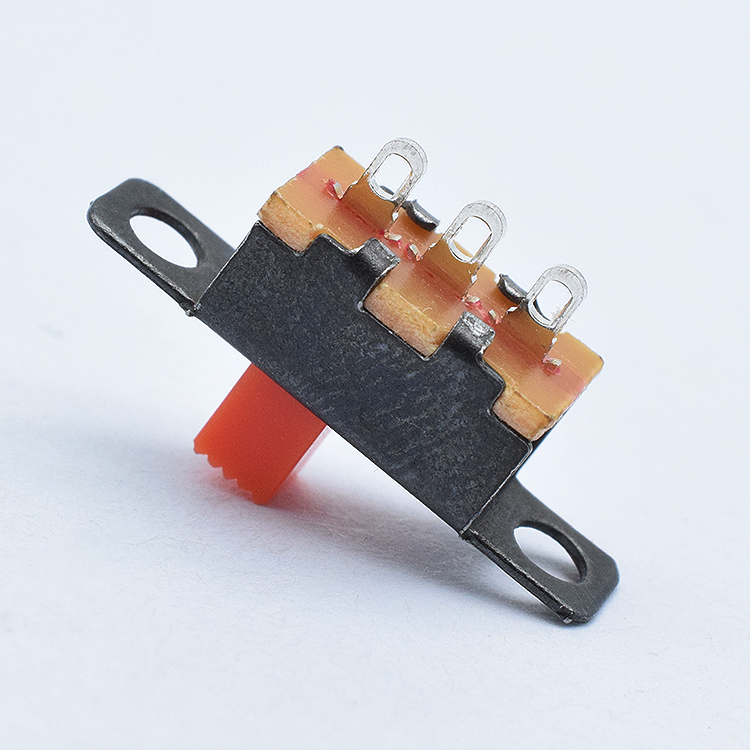

Item name: slide switch
Model No.: SS12F15G4 Red handle
Power : DC 50V 0.5A
Contact Resistance : 100mΩ Max
Insulation Resistance : 50mΩ Min at 100V DC
Withstand Voltage : AC 500V/1 min
Switching Life: 10,000 cycles
Operating force：180gf±20gf
Working Temperature: -25℃~75℃
| Product Name | Slide Switch |
| Model | SS12F15G4 Red handle |
| Certification | CE\Rohs |
| Rating | 50VDC 0.5A |

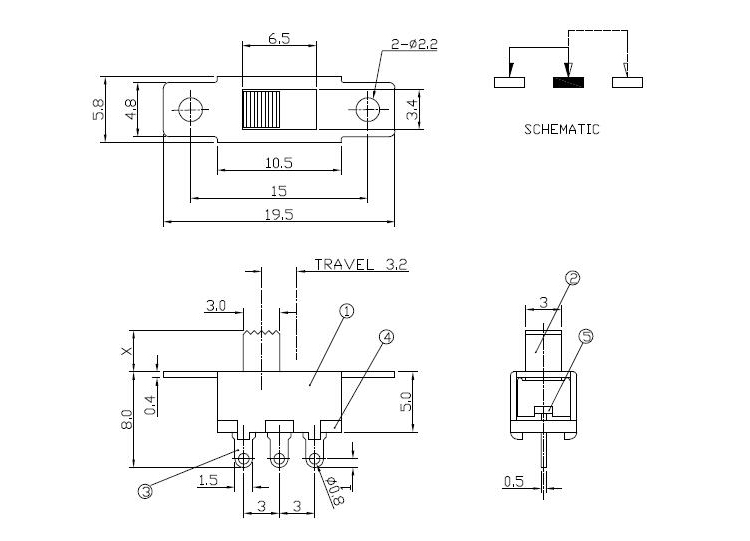

| Size | 19.5*5.8*7(G)mm |
| SWITCHING LIFE | 10,000cycles |
| PIN | 3 pin |
| CONTACT RESISTANCE | 50m ohm max |
| INSULATION RESISTANCE | 100M ohm at 500V DC |
| WITHSTAND VOLTAGE | AC 500V for 1 minute |
Slide switch is divided into: small current Slide switch, and large current Slide switch. Small current Slide switches are commonly
used in electronic toys, digital communications. High current is generally used in electrical appliances, machinery and so on.
Slide switch is widely used in: all kinds of instruments/instrumentation equipment, all kinds of electric toys, fax machines,
audio equipment, medical equipment, beauty equipment, and other electronic products field!
