| product name | DIP 12 pin switch four position with selectable height handle |
| Model | SS24D02 |
| Operating temperature | -20°C to +70°C |
| Life | 10,000 cycles |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |

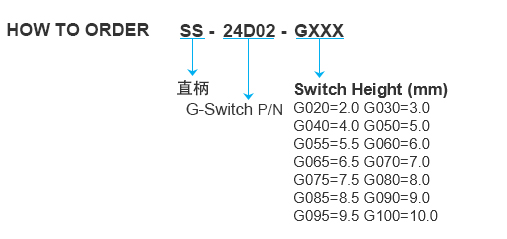

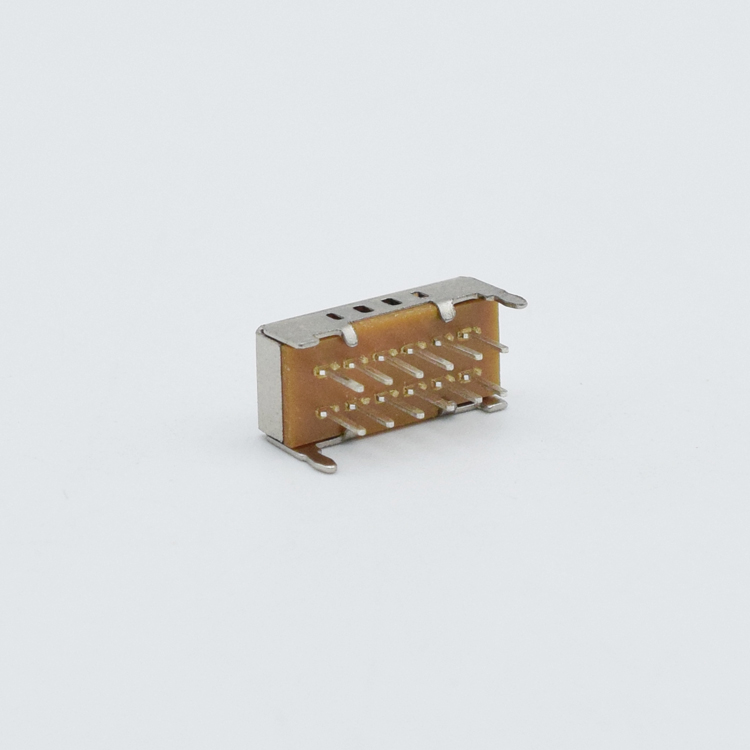

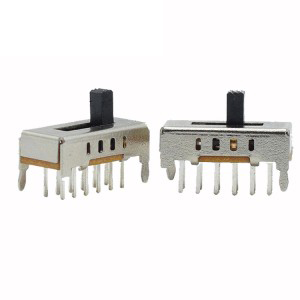

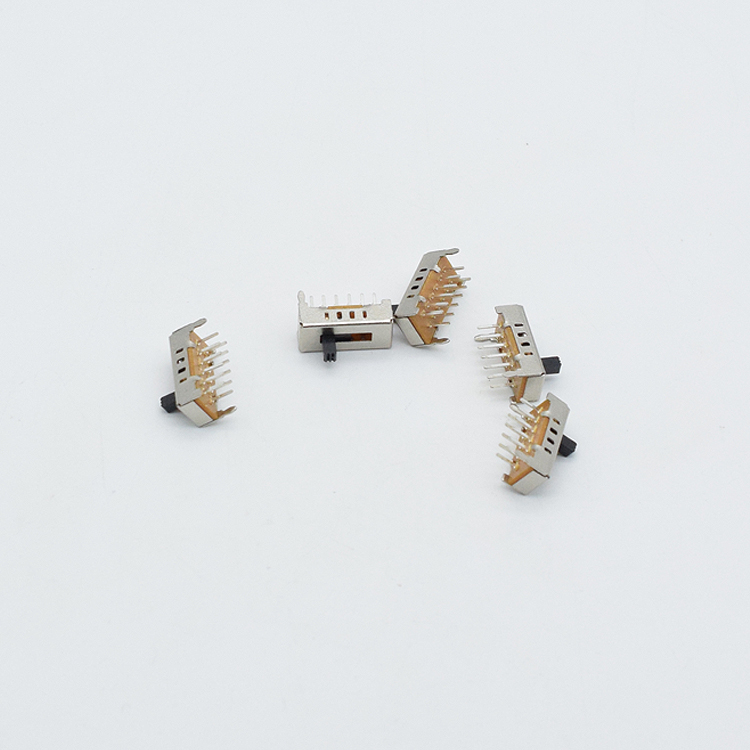

Slide Switch SS24D02 DIP 12 pin switch four position with selectable height handle
Specification
FUNCTION: Momentary action

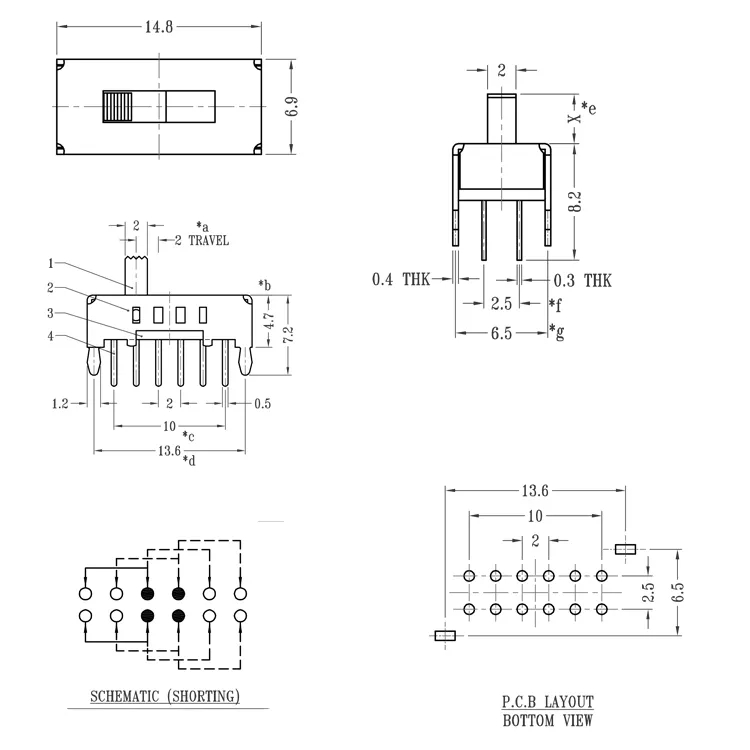

CONTACT ARRANGEMENT: 2P4T SLIDE SWITCH
Electrical
ELECTRICAL SPECIFICATIONS：1.0A/DC24V
CONTACT RESISTANCE (CR)：≤50MΩ
INSULATION RESISTANCE(IR)：≥100MΩ DC250V
COMPRESSIVE STRENGTH (WV)：AC250V 1MINUTE
STORAGE HUMIDITY：<85%RH
ELECTRICAL LIFE：10,000CYCLES.
SWITCH TRAVEL：2.0±0.05mm
Environmental
OPERATING TEMPERATURE: -25˚C to 70˚C
