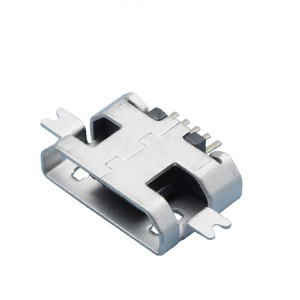

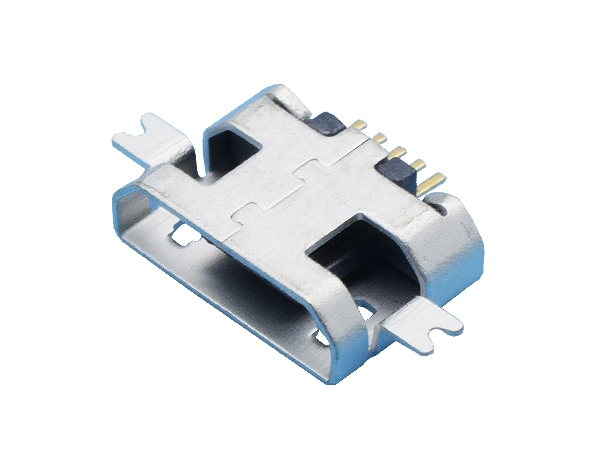

Product descriptionItem name: Micro 2pin 1.0mm USB connector
Rating: DC 30V 0.2A
Insulation resistance: ≥1000mΩ min. 500V DC
Dielectric strength: 250V AC for 1 min
Contact resistance: ≤50mΩ
Insertion force: ≤35N
Extraction force: ≥10N
Usage:
-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.
Shenzhen Hanxia electronics Co.,Ltd main supply USB connector,there have 3.0,2.0,3.1 type c usb socket for option
Quick Details
Place of Origin: China
Brand Name: OEM/HANXIA
Model Number: USB Connector smd
Type: usb
Application: USB
Gender: Female
Pins: 4p
Product name: micro 2 pin SMD USB connector female part sink plate1.0 usb socket
Item: USB micro 2pin
Connector type: Female Terminals
Color: Silver
Pin: 4 pin
Operating temperature: -30℃~80℃
Current Rating: 1A
Voltage rating: 30V
Operating force: 8N~35N
| Product Name | USB connector micro 5 pin DIP USB connector female part |
| Model | A female SMD |
| Life | 3,000 times |
| Operating force | 8N~35N |
| Temperature | -30℃—+80℃ |
| Dielectric strenght | AC 30V |
| Rated current | 1A |
