Product Name:TYPE C 6P IPX8 B
Size:10.54*4.76*7.50mm(Length)
Waterproof Level:IPX8
Rating Voltage:30V
Operating temperature:-20℃~+85℃
HOT SALE TYPE C 6 Pin board SMT waterproof female L=7.5mm, With Locate column two DIP feet IPX8 class B USB C Type Connetor
| Product Name | TYPE C 6P IPX8 B |
| Size | 10.54*4.76*7.50mm(Length) |
| Waterproof Level | IPX8 |
| Rating Voltage | 30V |
| Operating temperature | -20℃~+85℃ |
| Contact Resistance | 40mΩ±10mΩ Max |
| Insulation Resistance | 100mΩ Min |
| Withstand Voltage | 100VR.M.S. |
| Contact Current | VBUS Pin:3A ;GND Pin:1.25A; Other Pin:0.25A |
| Mechanical Life | 10,000Cycles |
| Connection Force | 0.51-2.04kg |
| Disconnection Force | 0.51-2.04kg |

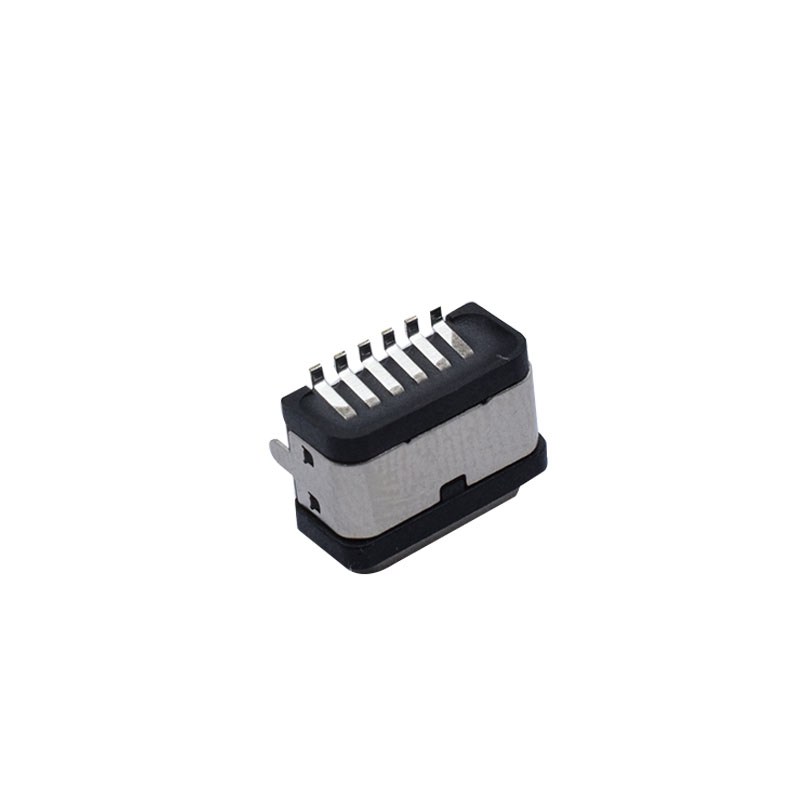

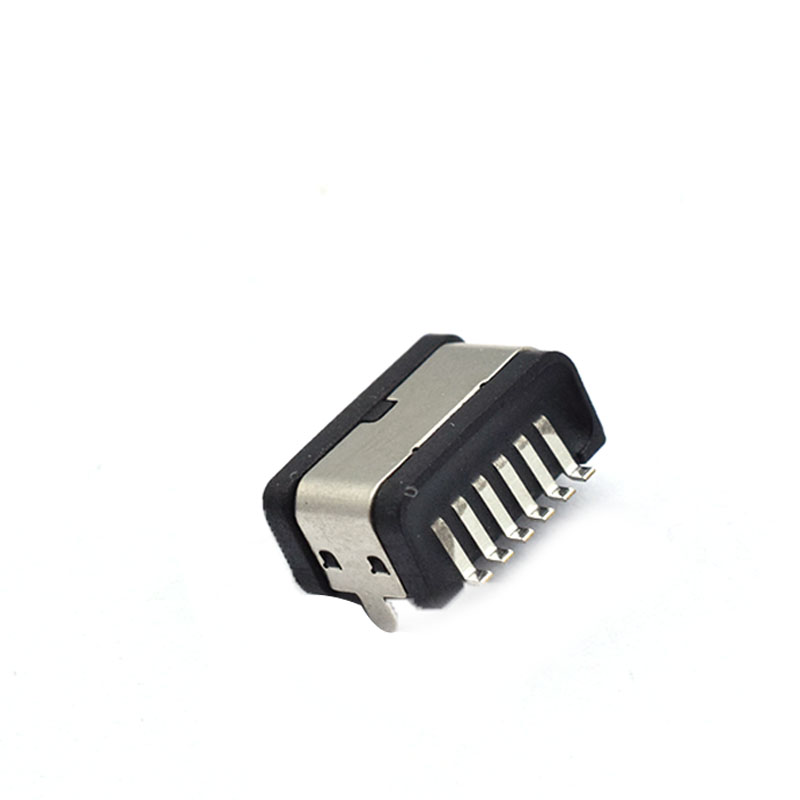

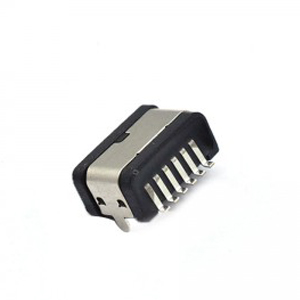

Back view of Type C(6 Pin SMD)

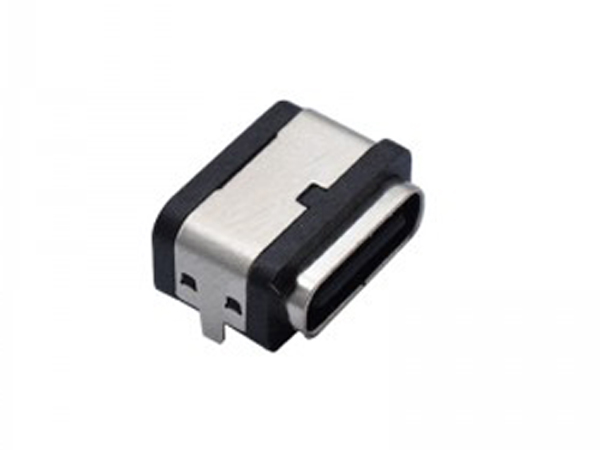

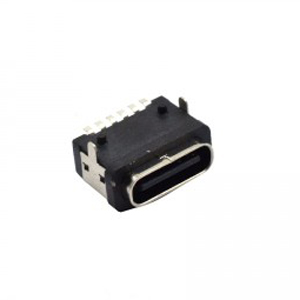

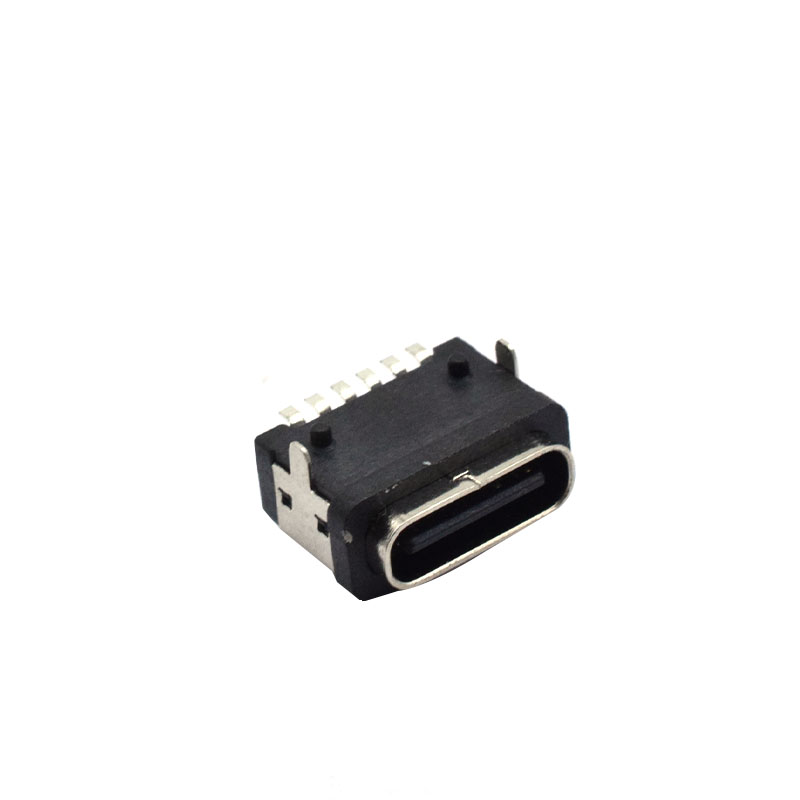

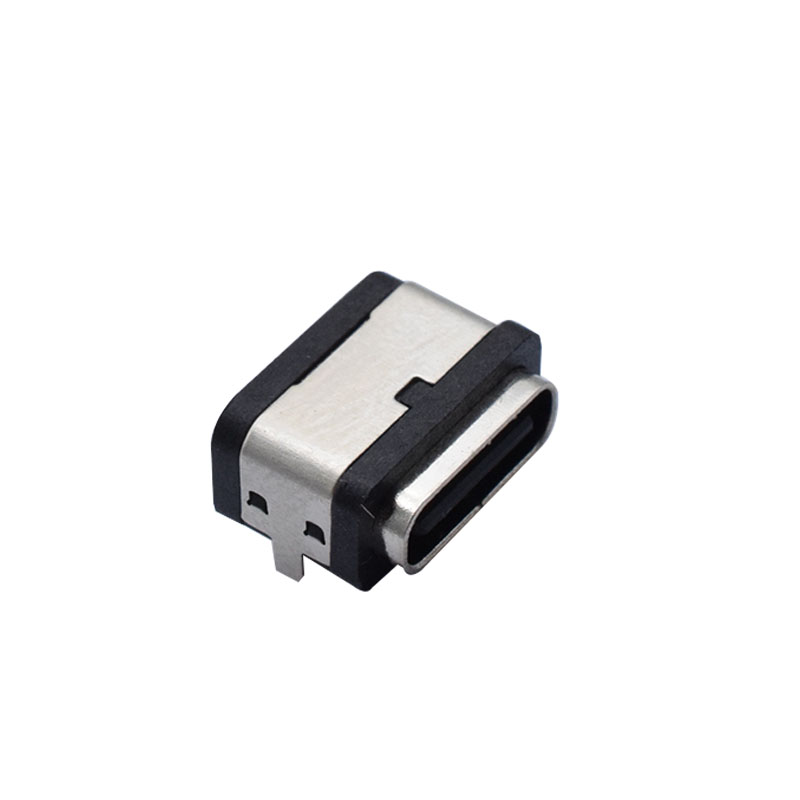

Vertical View and Front Of Type C(The middle piece of metal has two DIP pins)

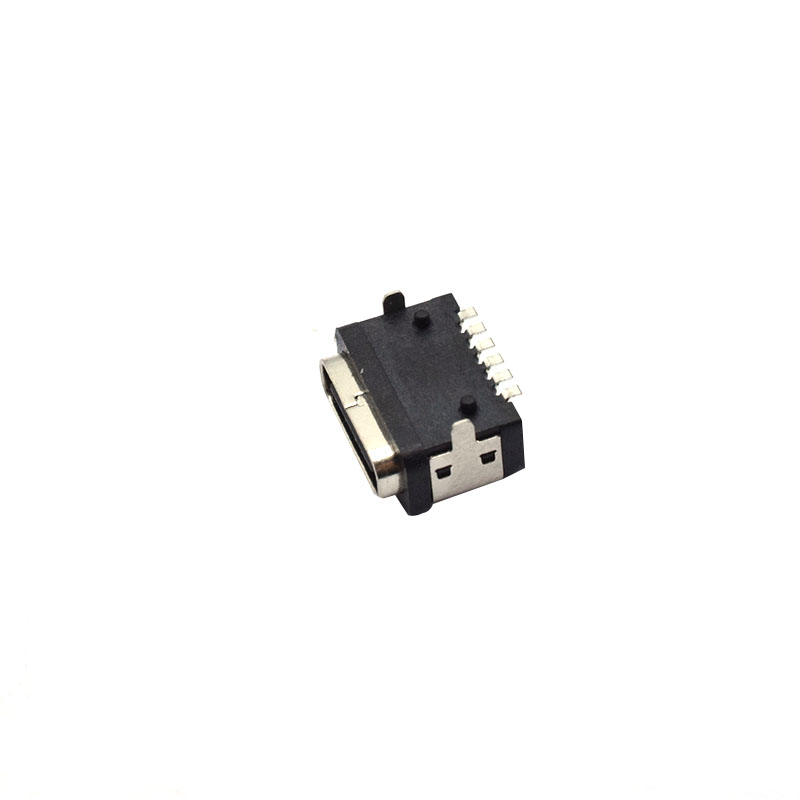

Bottom View of Type C(two fixed columns)
