Quick Details

• Certification:

•       ROHS

• Model Number:

•        TS45055

• Max. Current:

•        50mA

• Max. Voltage:

•         12V DC

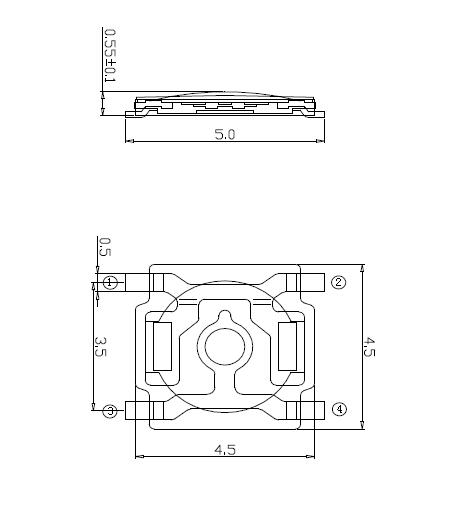

• size:

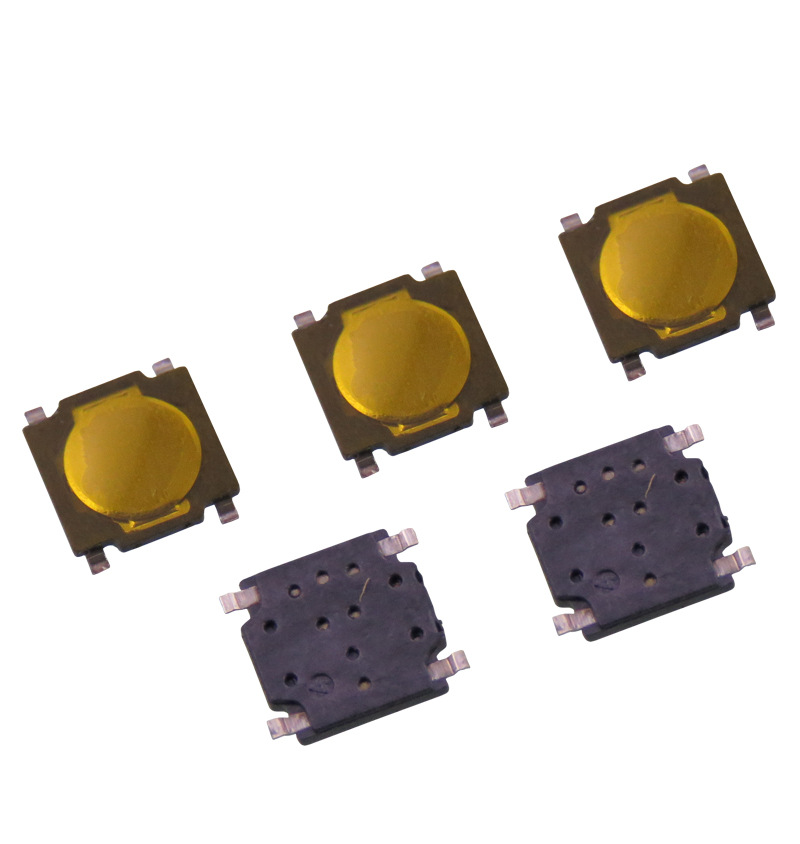

• 4.5×4.5×0.55 touch switch SMD

• feature:

• waterproof tactile switch

• Operating temperature:

•  -30℃~ 85℃

• Rating:

• DC12V 50mA

• Contact Resistance:

• 100mΩ Max

• Resistance Insulation:

• 100MΩ Min

• Dielectric Voltage:

• 250VAC (50~60Hz,cut off current 2mA)

• Mechanical Life:

• 100,000 cycles

• Operating force:

• 160gf/250gf/300gf/350gf
