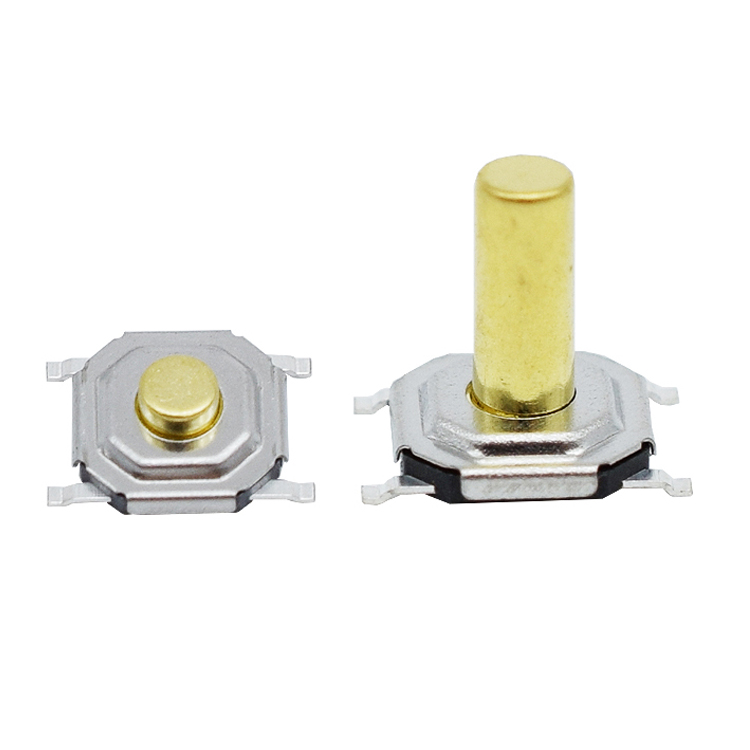

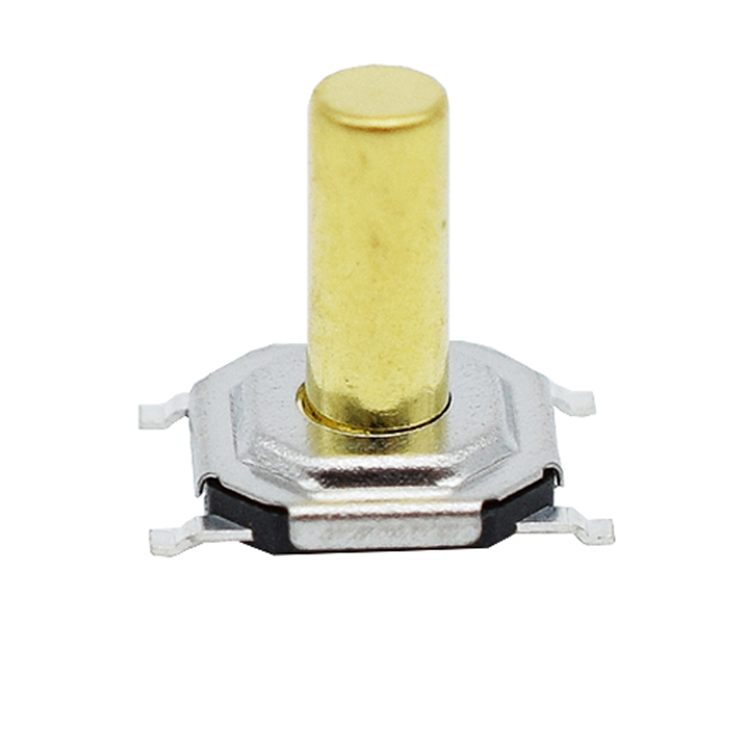

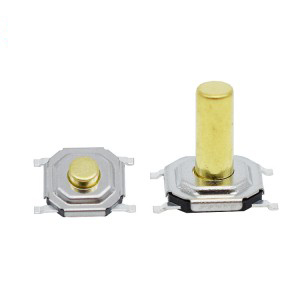

Product Name：TS5250A；

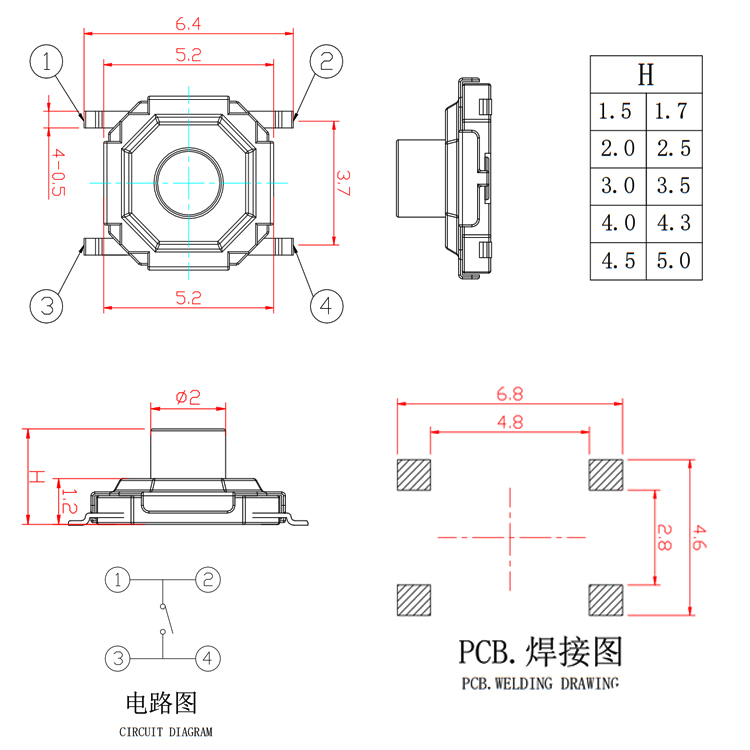

Size：5.2*5.2*5mm(Height)；
Rating Value：12VDC 50mA;
Operating temperature:-20℃~+80℃;
Operating Force:260±50g;
Operating Life:100,000Cycles
| Product Name | TS5250A |
| Size | 5.2*5.2*5mm(Height) |
| Waterproof Level | – |
| Rating Voltage | 12V |
| Operating temperature | -20℃~+80℃ |
| Contact Resistance | 100mΩ Max |
| Insulation Resistance | 100mΩ Min |
| Withstand Voltage | 250VAC(50/60Hz)/min |
| Contact Current | 50mA |
| Operating Life | 100,000Cycles |
| Operating Force | 260±50g |
