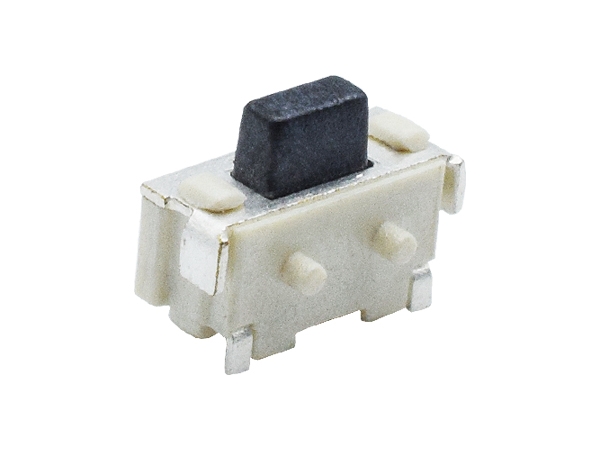

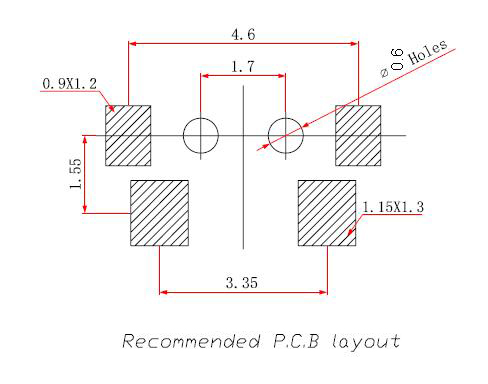

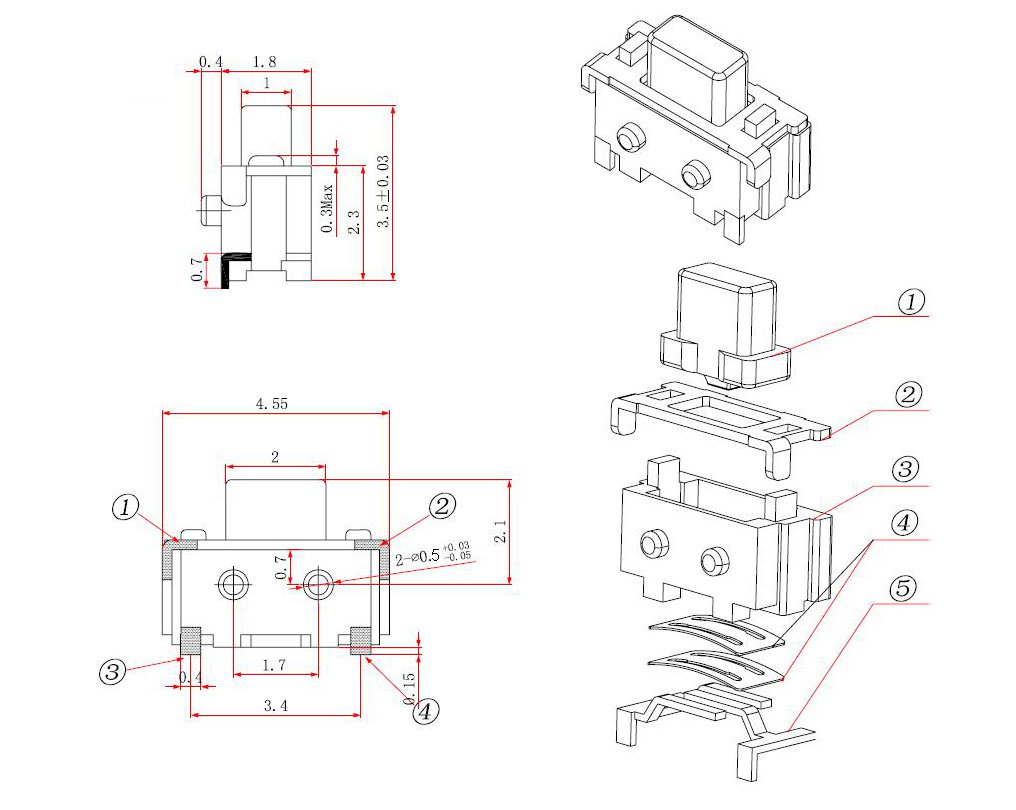

Item name: 2*4 side press flip switch
With Stand Viltage: AC250V, 50HZ, 1minute
Contact Circuit: Addition 1.5-2 time force on the top of the keystrok and press the switch, DC50V, 100MA
Switch Connection Flash: Additonal DC5V on the two side of the switch, at a speed of a 3-5time a sec to press the switch
Contact strength: The contact shall be capable of a force for 5N for 5 sec in any directions
Travel: 0.2±0.05mm
Drive force: 160gf±30gf
Connection Strengh: a force of 1N being applying in any directions of the switch connection part
Contact Resistance:100MΩ MAX
Insulation Resistance: 100MΩ Min
Lifetime: 20000 Cycles Min
Operation temeprature range: -25℃~+70℃
Title: side press switch 2×4 tact switch
Product advantages: fast delivery, free samples, the switch with ROHS 2.0 and CE certification, life time is more than 300000 times, small volume, high temperature resistance of patch, good press feeling and rebound, technical support and best sales service.
Application fields: mobile communication products, wearable watches, instruments and equipment, consumer electronics, household appliances, security products
Factory strengths: with 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment
Operating Life
Measurements shall be made following
the test
set forth below:
(1) DC 12V 50mA resistive load
(2) Rate of operation : 2 to 3 operations
per second
(3) Depression 250±50gf
(4) Cycles of operation >30,000 次。
1-Contact resistance: 1000mΩMax
2-Insulation resistance
10 MΩ min.3-action force attenuation rate was 15% of the initial value
Vibration Resistance
Measurements shall be made following the test set forth below:
(1)Range of oscillation: 10~55 Hz
(2)Amplitude pk to pk : 1.5mm
(3)Cycle of sweep : 10-55-10Hz in one minute
(4)Mode of sweep : Logarithmically sweep or uniform sweep.
(5)Direction of oscillation: Three mutually perpendicular directions, including the direction of stem travel.
(6)Duration of testing 2 hours each ,for a total of 6hours..
Impact Shock Resistance
Measurements shall be made following the test set forth below:
(1) Acceleration 80g
(2) Cycles of test :3 cycles each in 6 directions.for a total of 18 cycles.
Reflow soldering conditions
Preheat: Temperature on the copper foil surface should reach 180℃,2±0.3 minutes after
The P .W. B entered into the soldering equipment.
Soldering heat: Temperature on the copper foil surface should reach the peak temperature of 265℃
within 20 seconds after the P.W.B entered into soldering heat zone.
