Short Description:

Product description:

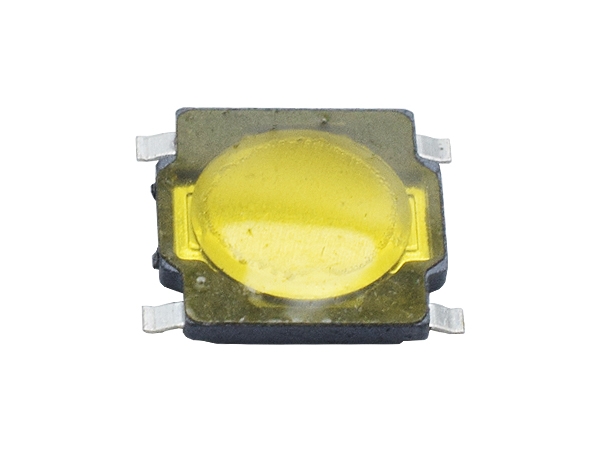

Item name: TS45055A Tactile Push Button Switch Tact 4.5×4.5 Switch Micro Switch SMD
Operating Temperature: -20℃±55℃
Relative Humidity: ≤85%RH
Rating: DC 12V, 50MA
Contact Resistance: ≤100mΩ
Resistance Insulation: ≥100mΩ
Operating Force: 260gf±50gf
Return force: 50gf Min
Operating Position: 0.15±0.05mm
Lifetime: 100000 cycles min
Applications: operating switches in all types of electronic equipment, such as audio apparatus, office equipment, communication apparatus, measuring instruments, TV sets, VCRS
